ABB GJH1213061R6408 – TKC6-40E-68Mini Contactor Relay140 ... 260 V DC4NO0NCScrew Terminals
MPN: GJH1213061R6408 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | ABB Mini Contactor Relays |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.18 kg |
| UPC / EAN | 4013614309298 |
Shipping & availability
When can GJH1213061R6408 be shipped?
GJH1213061R6408 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GJH1213061R6408 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GJH1213061R6408 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GJH1213061R6408, subject to availability and destination.
The TKC6-40E mini contactor relay is a compact 4 pole contactor relay with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors relays are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15). Further features are the noiseless and hum-free coil and a a switch position indication.
Specifications
General
| Order code (ABB product ID) | GJH1213061R6408 |
| Type | TKC6-40E-68 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
Dimensions
| Product Net Width | 52.5 mm |
| Product Net Depth / Length | 46.5 mm |
| Product Net Height | 57.5 mm |
| Product Net Weight | 0.18 kg |
Technical
| Number of Main Contacts NO | 0 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 4 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 4P |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1 |
| Rated Operational Voltage | Auxiliary Circuit 690 V AC, Auxiliary Circuit 250 V DC |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz, Auxiliary Circuit 60 Hz, Auxiliary Circuit DC, Control Circuit DC, Main Circuit 60 Hz, Main Circuit 50 Hz, Main Circuit DC |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | Auxiliary Circuit 6 A |
| Rated Operational Current AC-15 (I<sub>e</sub>) | (24 V) 4 A, (120 V) 4 A, (240 V) 4 A, (400 V) 3 A, (500 V) 2 A |
| Rated Operational Current DC-13 (I<sub>e</sub>) | (24 V) 2.5 A, (110 V) 0.7 A, (220 / 240 V) 0.4 A |
| Short-Circuit Protective Devices | gG Type Fuses 6 A |
| Rated Insulation Voltage (U<sub>i</sub>) | 690 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | Auxiliary Circuit 6 kV |
| Maximum Electrical Switching Frequency | (AC-15) 600 cycles per hour, (DC-13) 600 cycles per hour |
| Mechanical Durability | Nr. Operations 10000000 cycle |
| Minimum Switching Capacity | 17 V, 5 mA |
| Coil Operating Limits | (acc. to IEC 60947-5-1) for DC supply Uc Min. ... Uc Max. (at θ ≤ 55 °C) |
| Rated Control Circuit Voltage (U<sub>c</sub>) | 140 ... 260 V DC |
| Coil Consumption | Average Holding Value DC 5 W, Average Pull-in Value DC 5 W |
| Power Loss | at Rated Operating Conditions AC-15 per Pole 0.32 W |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 1 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm², Flexible 1/2x 1 ... 2.5 mm², Rigid 1/2x 1 ... 4 mm² |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 1 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm², Flexible 1/2x 1 ... 2.5 mm², Rigid 1/2x 1 ... 4 mm² |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Degree of Protection | Auxiliary Circuit Terminals IP20, Control Circuit Terminals IP20 |
| Recommended Screw Driver | M3, Pozidriv 1 |
| Tightening Torque | Auxiliary Circuit 0.8 ... 1.1 N·m, Control Circuit 0.8 ... 1.1 N·m, Main Circuit 0.8 ... 1.1 N·m |
| Terminal Type | Screw Terminals |
| Mini Contactor Type | Mini Contactor Relay |
| Product Name | Mini Contactor Relay |
| Remarks | No CA6 or CAF6 mountable |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Auxiliary Circuit 600 V AC/DC |
| General Use Rating UL/CSA | (600 V AC) 5 A |
Environmental
| Ambient Air Temperature | Operation -30 ... +70 °C, Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 15g |
| Resistance to Vibrations | 3g 3 ... 150 Hz |
| Shock and Vibration Withstand acc. to IEC 61373 | Category 1, Class B |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
ABB EcoSolutions
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill, UL 2799 Zero Waste To Landfill Validation available |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 87.4 % |
External Classifications and Standards
| Object Classification Code | K |
| ETIM 7 | EC000196 - Contactor relay |
| ETIM 8 | EC000196 - Contactor relay |
| ETIM 9 | EC000196 - Contactor relay |
| eClass | V11.0 : 27371001 |
| UNSPSC | 39121529 |
| IDEA Granular Category Code (IGCC) | 4763 >> Power contactor, DC switching |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (2CDC102001C0202) | |
| ABB EcoSolutions Profile (1SFC100125C0354) | |
| End Of Life Disassembling Instructions (1SBC100156C0270) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts
Available on requestTKC6-22Z-68Mini Contactor Relay140 ... 260 V DC2NO2NCScrew TerminalsMPN: GJH1213061R6228 · ABB
Price on request
Request a quote
Available on requestTKC6-31Z-62Mini Contactor Relay77 ... 143 V DC3NO1NCScrew TerminalsMPN: GJH1213061R6312 · ABB
Price on request
Request a quoteAvailable on requestTKC6-31Z-68Mini Contactor Relay140 ... 260 V DC3NO1NCScrew TerminalsMPN: GJH1213061R6318 · ABB
Price on request
Request a quote
Available on requestTKC6-40E-62Mini Contactor Relay77 ... 143 V DC4NO0NCScrew TerminalsMPN: GJH1213061R6402 · ABB
Price on request
Request a quote
Available on requestCA6-11K Auxiliary Contact 1NO/1NC screw terminal, side mountedMPN: GJL1201317R0001 · ABB
Price on request
Request a quote
Available on requestCA6-11E Auxiliary Contact 1NO/1NC screw terminal, side mountedMPN: GJL1201317R0002 · ABB
Price on request
Request a quote
Available on requestCA6-11M Auxiliary Contact 1NO/1NC screw terminal, side mountedMPN: GJL1201317R0003 · ABB
Price on request
Request a quote

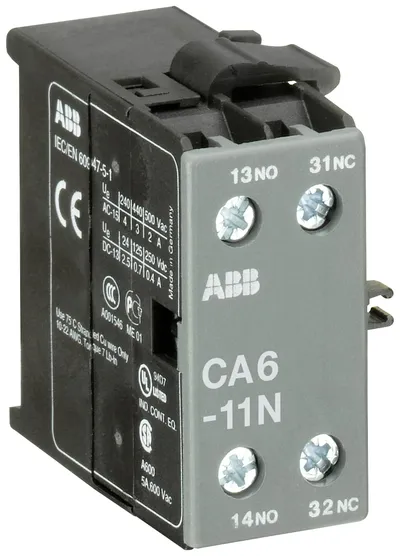

Available on requestCA6-11N Auxiliary Contact 1NO/1NC screw terminal, side mountedMPN: GJL1201317R0004 · ABB
