ABB GJH1213003R0221

KC6-22Z-F-01Mini Contactor Relay24 V DC2NO2NCFlat-Pin Connections

MPN
GJH1213003R0221
EAN
4013614049996
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB GJH1213003R0221?

The KC6-22Z-F mini contactor relay is a compact 4 pole contactor relay with flat pin connection. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors relays are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15). Further features are the noiseless and hum-free coil and a a switch position indication.

Specifications

General

Order code (ABB product ID)GJH1213003R0221
TypeKC6-22Z-F-01
LifecycleActive (current ABB product)

Ordering

Minimum Order Quantity1 piece
Customs Tariff Number85365080

Dimensions

Product Net Width52.5 mm
Product Net Depth / Length46.5 mm
Product Net Height57.5 mm
Product Net Weight0.17 kg

Technical

Number of Main Contacts NO0
Number of Main Contacts NC0
Number of Auxiliary Contacts NO2
Number of Auxiliary Contacts NC2
Number of Poles4P
StandardsIEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L
Rated Operational VoltageAuxiliary Circuit 690 V AC, Auxiliary Circuit 250 V DC
Rated Frequency (f)Auxiliary Circuit 50 Hz, Auxiliary Circuit 60 Hz, Auxiliary Circuit DC, Control Circuit DC, Main Circuit 60 Hz, Main Circuit 50 Hz, Main Circuit DC
Conventional Free-air Thermal Current (I<sub>th</sub>)Auxiliary Circuit 6 A
Rated Operational Current AC-15 (I<sub>e</sub>)(24 V) 4 A, (120 V) 4 A, (240 V) 4 A, (400 V) 3 A, (500 V) 2 A
Rated Operational Current DC-13 (I<sub>e</sub>)(24 V) 2.5 A, (110 V) 0.7 A, (220 / 240 V) 0.4 A
Short-Circuit Protective DevicesgG Type Fuses 6 A
Rated Insulation Voltage (U<sub>i</sub>)690 V, acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency(AC-15) 600 cycles per hour, (DC-13) 600 cycles per hour
Mechanical DurabilityNr. Operations 10000000 cycle
Minimum Switching Capacity17 V, 5 mA
Coil Operating Limits(acc. to IEC 60947-5-1) for DC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
Rated Control Circuit Voltage (U<sub>c</sub>)24 V DC
Coil ConsumptionAverage Holding Value DC 3.5 W, Average Pull-in Value DC 3.5 W
Power Lossat Rated Operating Conditions AC-15 per Pole 0.32 W
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Degree of ProtectionAuxiliary Circuit Terminals IP20, Control Circuit Terminals IP20
Terminal TypeFlat-Pin Connections
Mini Contactor TypeMini Contactor Relay
Product NameMini Contactor Relay

Technical UL/CSA

Maximum Operating Voltage UL/CSA600 V AC
General Use Rating UL/CSA(600 V AC) 5 A
Contact Rating UL/CSAA600

Environmental

Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +80 °C
Maximum Operating Altitude Permissible2000 m
Resistance to Shock acc. to IEC 60068-2-2711 ms Pulse 15g
Resistance to Vibrations3g 3 ... 150 Hz

Material Compliance

RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill, UL 2799 Zero Waste To Landfill Validation available
Improved Energy Efficiency for CustomersProduct Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 87.4 %

External Classifications and Standards

Object Classification CodeK
ETIM 7EC000196 - Contactor relay
ETIM 8EC000196 - Contactor relay
ETIM 9EC000196 - Contactor relay
eClassV11.0 : 27371001
UNSPSC39121529
IDEA Granular Category Code (IGCC)4763 >> Power contactor, DC switching

GJH1213003R0221: frequently asked questions

When can GJH1213003R0221 be shipped?

GJH1213003R0221 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GJH1213003R0221 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GJH1213003R0221 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GJH1213003R0221, subject to availability and destination.

More ABB parts

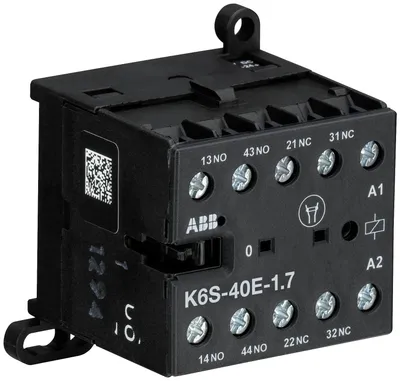

ABB GJH1213001R7402 – K6S-40E-2.8-72Mini Contactor Relay17 ... 32 V DC4NO0NCScrew Terminals
ABB
GJH1213001R7402

K6S-40E-2.8-72Mini Contactor Relay17 ... 32 V DC4NO0NCScrew Terminals

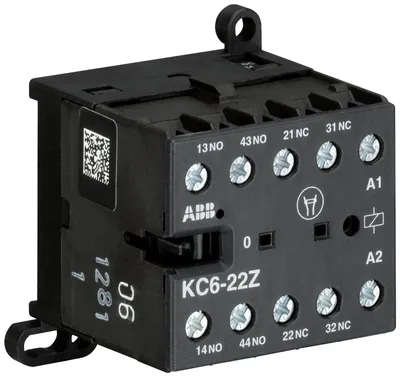

ABB GJH1213001R8221 – KC6-22Z-1.4-81Mini Contactor Relay24 V DC2NO2NCScrew Terminals
