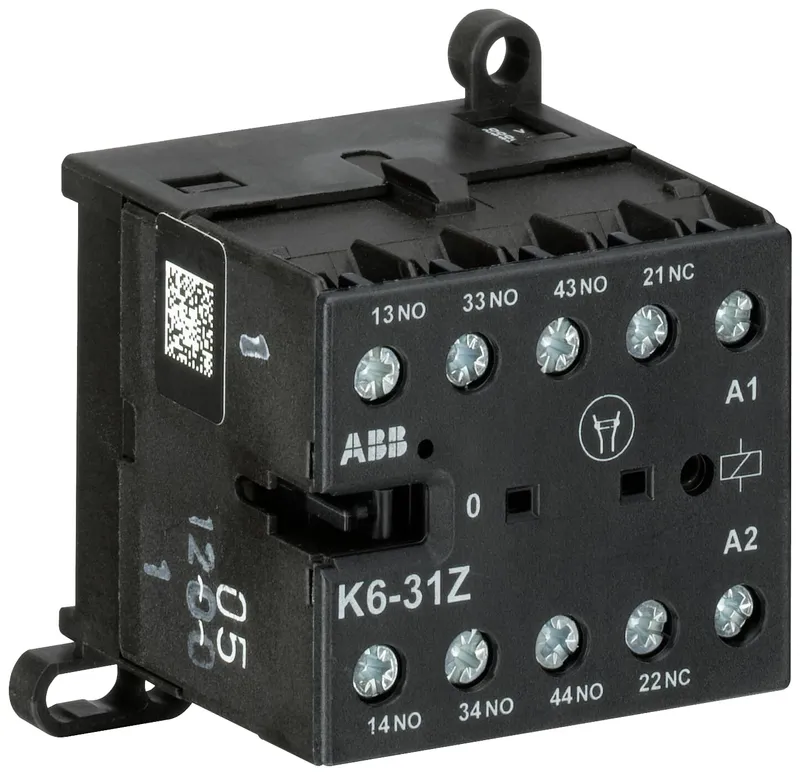

K6-31Z-80Mini Contactor Relay220 ... 240 V AC3NO1NCScrew Terminals — photo 1 of 2

K6-31Z-80Mini Contactor Relay220 ... 240 V AC3NO1NCScrew Terminals — photo 2 of 2

Available on request

ABB GJH1211001R8310 – K6-31Z-80Mini Contactor Relay220 ... 240 V AC3NO1NCScrew Terminals

MPN: GJH1211001R8310 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Mini Contactor Relays
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.175 kg
Country of origin	Germany
UPC / EAN	4013614153280

Shipping & availability

When can GJH1211001R8310 be shipped?

GJH1211001R8310 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GJH1211001R8310 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GJH1211001R8310 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GJH1211001R8310, subject to availability and destination.

The K6-31Z mini contactor relay is a compact 4 pole contactor relay with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors relays are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.

Specifications

General

Order code (ABB product ID)	GJH1211001R8310
Type	K6-31Z-80
Lifecycle	Active (current ABB product)
Country of origin	Germany

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85365080

Dimensions

Product Net Width	52.5 mm
Product Net Depth / Length	46.5 mm
Product Net Height	57.5 mm
Product Net Weight	0.175 kg

Technical

Number of Main Contacts NO	0
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	3
Number of Auxiliary Contacts NC	1
Number of Poles	4P
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L
Rated Operational Voltage	Auxiliary Circuit 690 V AC, Auxiliary Circuit 250 V DC
Rated Frequency (f)	Auxiliary Circuit 50 Hz, Auxiliary Circuit 60 Hz, Auxiliary Circuit DC, Control Circuit 400 Hz, Control Circuit 50 Hz, Control Circuit 60 Hz, Main Circuit 60 Hz, Main Circuit 50 Hz, Main Circuit DC
Conventional Free-air Thermal Current (I<sub>th</sub>)	Auxiliary Circuit 6 A
Rated Operational Current AC-15 (I<sub>e</sub>)	(24 V) 4 A, (120 V) 4 A, (240 V) 4 A, (400 V) 3 A, (500 V) 2 A
Rated Operational Current DC-13 (I<sub>e</sub>)	(24 V) 2.5 A, (110 V) 0.7 A, (220 / 240 V) 0.4 A
Short-Circuit Protective Devices	gG Type Fuses 6 A
Rated Insulation Voltage (U<sub>i</sub>)	690 V, acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency	(AC-15) 600 cycles per hour, (DC-13) 600 cycles per hour
Mechanical Durability	Nr. Operations 10000000 cycle
Minimum Switching Capacity	17 V, 5 mA
Coil Operating Limits	(acc. to IEC 60947-5-1) for AC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
Rated Control Circuit Voltage (U<sub>c</sub>)	220 ... 240 V AC
Coil Consumption	Average Holding Value 50 Hz 3.5 V·A, Average Pull-in Value 50 Hz 3.5 V·A
Power Loss	at Rated Operating Conditions AC-15 per Pole 0.32 W
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 1/2x 1 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm², Flexible 1/2x 1 ... 2.5 mm², Rigid 1/2x 1 ... 4 mm²
Connecting Capacity Control Circuit	Flexible with Ferrule 1/2x 1 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm², Flexible 1/2x 1 ... 2.5 mm², Rigid 1/2x 1 ... 4 mm²
Wire Stripping Length	Auxiliary Circuit 9 mm
Degree of Protection	Auxiliary Circuit Terminals IP20, Control Circuit Terminals IP20
Recommended Screw Driver	M3, Pozidriv 1
Tightening Torque	Auxiliary Circuit 0.8 ... 1.1 N·m, Control Circuit 0.8 ... 1.1 N·m, Main Circuit 0.8 ... 1.1 N·m
Terminal Type	Screw Terminals
Mini Contactor Type	Mini Contactor Relay
Product Name	Mini Contactor Relay

Technical UL/CSA

Maximum Operating Voltage UL/CSA	600 V AC
General Use Rating UL/CSA	(600 V AC) 5 A
Connecting Capacity Auxiliary Circuit UL/CSA	Stranded 1/2x 22-10 AWG
Contact Rating UL/CSA	A600
Tightening Torque UL/CSA	Auxiliary Circuit 7 in·lb, Control Circuit 7 in·lb

Environmental

Ambient Air Temperature	Operation -25 ... +55 °C, Storage -40 ... +80 °C
Maximum Operating Altitude Permissible	2000 m
Resistance to Shock acc. to IEC 60068-2-27	11 ms Pulse 15g
Resistance to Vibrations	3g 3 ... 150 Hz

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	No non-hazardous waste is sent to a landfill, UL 2799 Zero Waste To Landfill Validation available
Improved Energy Efficiency for Customers	Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 87.4 %

External Classifications and Standards

Object Classification Code	K
ETIM 7	EC000196 - Contactor relay
ETIM 8	EC000196 - Contactor relay
ETIM 9	EC000196 - Contactor relay
eClass	V11.0 : 27371001
UNSPSC	39121529
IDEA Granular Category Code (IGCC)	4761 >> Magnet contactor, AC-switching
E-Number (Finland)	3709127
E-Number (Norway)	4190502
