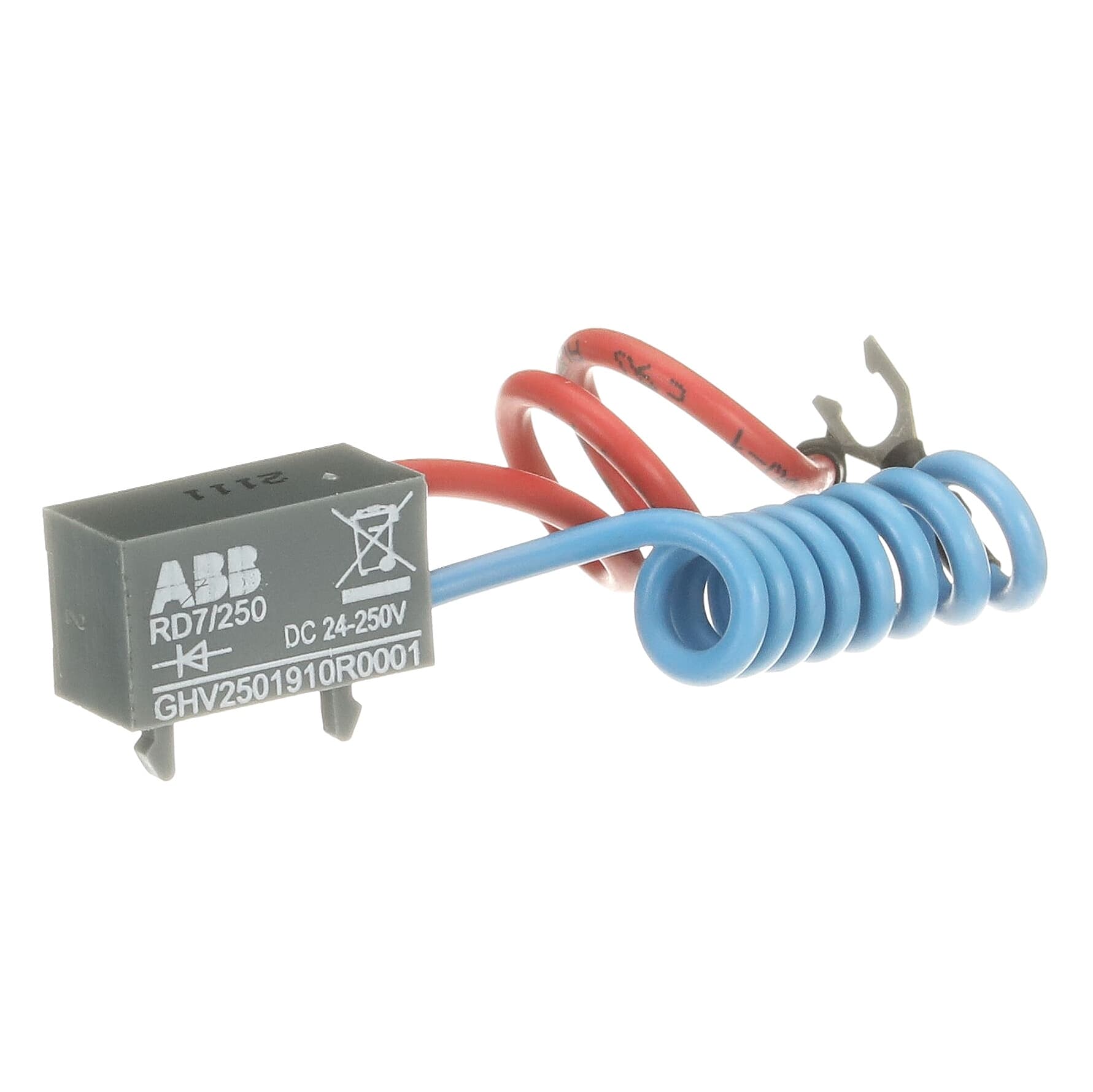

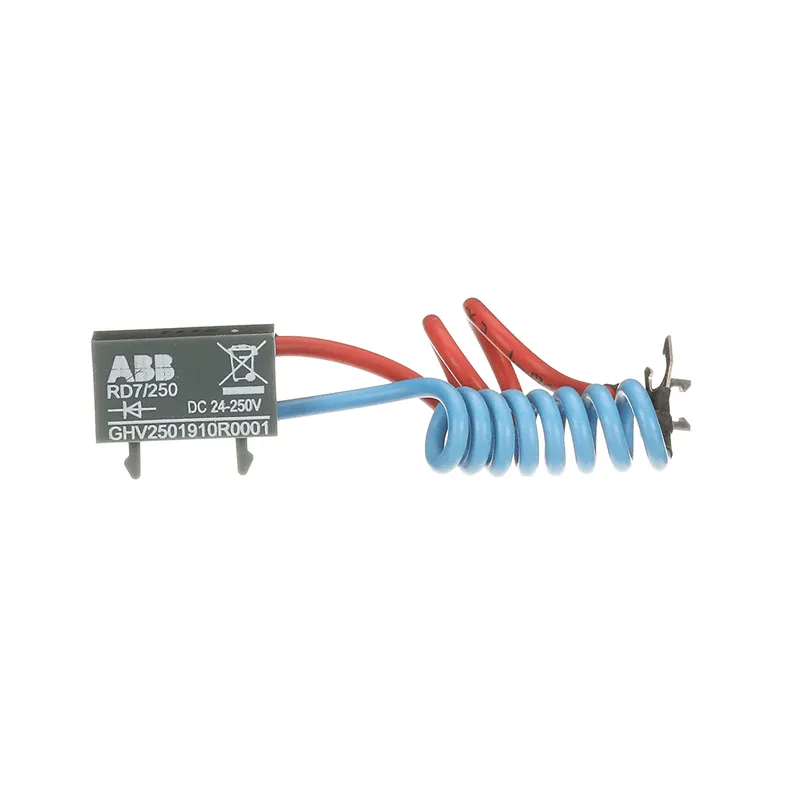

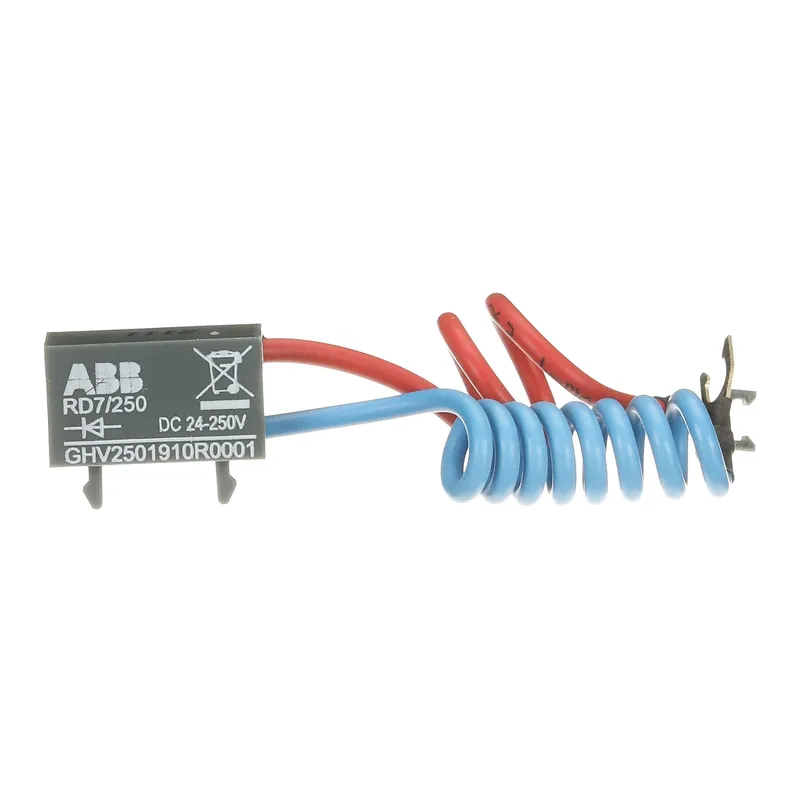

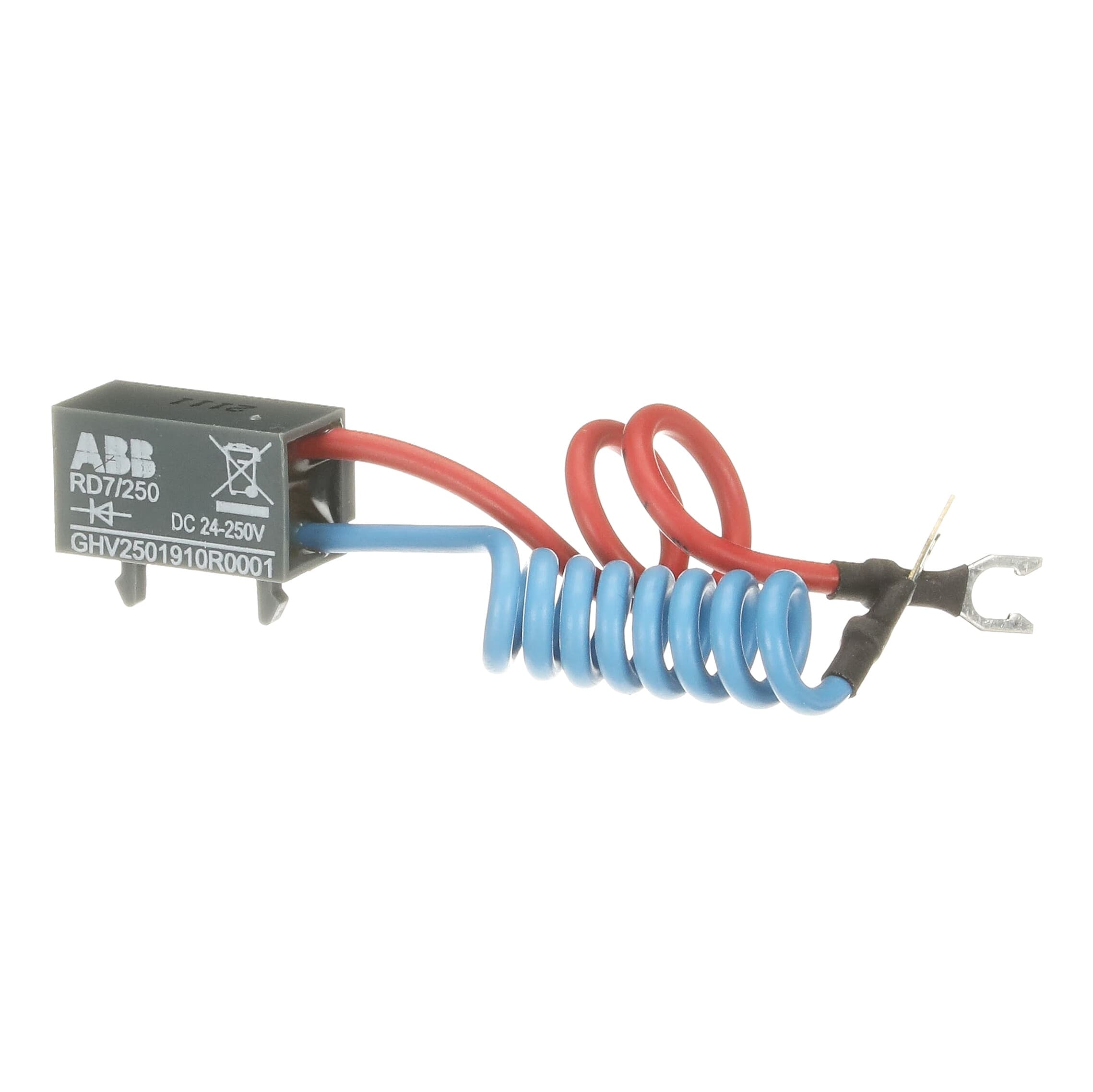

ABB GHV2501910R0001 – RD7/250 Surge Suppressor 24 … 250 V DC, screw terminal
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Mini Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.005 kg |
| Country of origin | Czechia |
| UPC / EAN | 4013614335938 |
Shipping & availability
When can GHV2501910R0001 be shipped?
GHV2501910R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GHV2501910R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GHV2501910R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GHV2501910R0001, subject to availability and destination.
The RD7/250 is a surge suppressor for contactor coils. Designed to reduce the maximum overvoltage peak value and to limit or even completely eliminate the high pre-damping voltage frequencies for a rated control circuit voltage between 24 ... 250 V. The surge suppressor is equipt with screw terminals and can be mounted on the DC-operated B6 and B7 mini contactor.
Specifications
General
| Order code (ABB product ID) | GHV2501910R0001 |
| Type | RD7/250 |
| Lifecycle | Active (current ABB product) |
| Country of origin | Czechia |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 21 mm |
| Product Net Depth / Length | 12 mm |
| Product Net Height | 11.5 mm |
| Product Net Weight | 0.005 kg |
Technical
| Rated Frequency (f) | Control Circuit DC |
| Rated Insulation Voltage (U<sub>i</sub>) | 690 V |
| Rated Control Circuit Voltage (U<sub>c</sub>) | DC Operation 24 ... 250 V DC |
| Degree of Protection | IP20 |
| Terminal Type | Screw Terminals |
| Suitable For | BC6, BC7, KC6, TBC7, TKC6, VBC6, VBC6A, VBC7, VBC7A |
| Suitable for Product Class | Mini Contactors |
| Product Name | Surge Suppressor |
Environmental
| Ambient Air Temperature | Operation -25 ... +55 °C, Storage -40 ... +80 °C |
| Maximum Operating Altitude Permissible | 2000 m |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | F |
| ETIM 7 | EC000197 - Surge voltage protection |
| ETIM 8 | EC000683 - Surge protection module |
| ETIM 9 | EC000683 - Surge protection module |
| eClass | V11.0 : 27371010 |
| UNSPSC | 39121610 |
| IDEA Granular Category Code (IGCC) | 4906 >> Surge suppressers |
