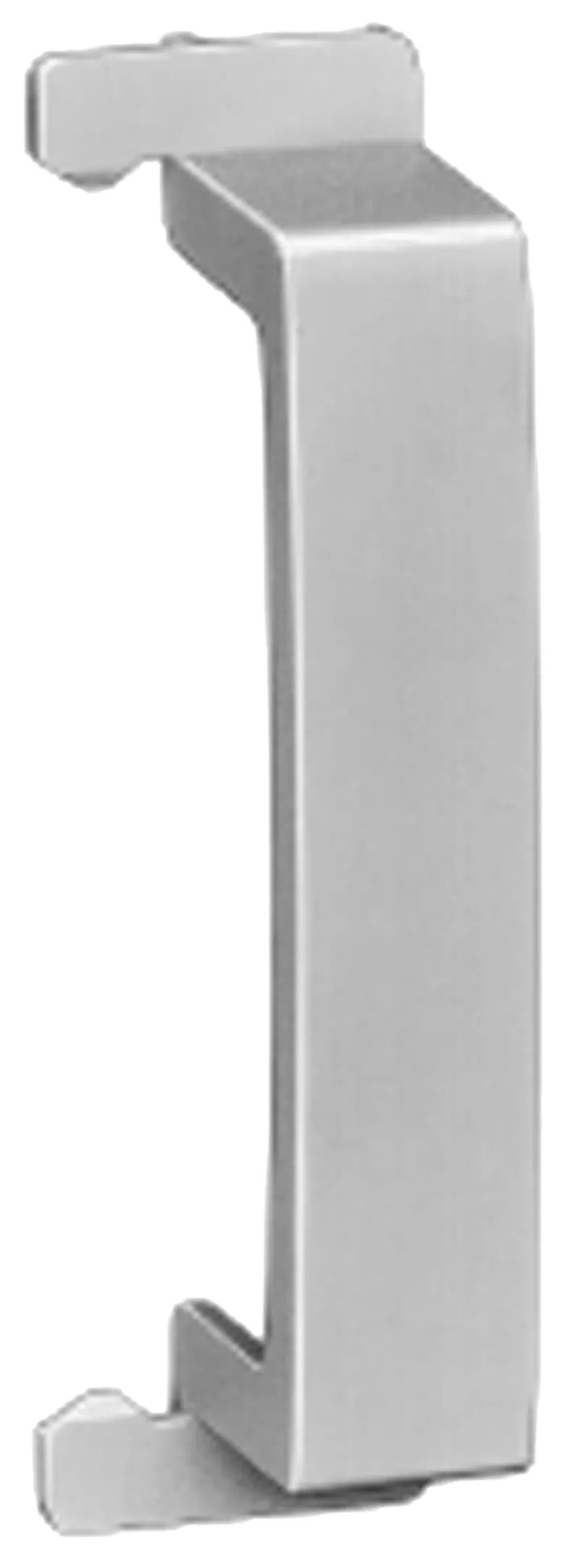

ABB GHE3201902R0001 – ESB-DIS Distance Piece
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Installation Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.002 kg |
| Country of origin | India |
| UPC / EAN | 4013614085215 |
Shipping & availability
When can GHE3201902R0001 be shipped?
GHE3201902R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GHE3201902R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GHE3201902R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GHE3201902R0001, subject to availability and destination.
ESB-DIS Distance piece 9 mm, 10 pcs. for ESB/EN25, ESB/EN40 & ESB63
Specifications
General
| Order code (ABB product ID) | GHE3201902R0001 |
| Type | 666809 |
| Lifecycle | Active (current ABB product) |
| Country of origin | India |
Ordering
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 14.3 mm |
| Product Net Depth / Length | 16.5 mm |
| Product Net Height | 53 mm |
| Product Net Weight | 0.002 kg |
Technical
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 61095 |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour |
| Terminal Type | No Terminals |
| Suitable For | ESB24, ESB40, ESB63, EN24, EN40, ESB25..N, ESB40..N, ESB63..N, ESB100..N, EN25..N, EN40..N |
| Suitable for Product Class | Installation Contactors |
| Product Name | Distance Piece |
Environmental
| Ambient Air Temperature | Storage -40 ... +75 °C |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards
| Object Classification Code | X |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3707821 |
| E-Number (Norway) | 4186397 |
| E-Number (Sweden) | 3225095 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (2CDC103051C0201) | |
| Instructions and Manuals (2CDC103043M6801) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
More ABB parts
Available on request16HP,1760RPM,1PH,60HZ,256TZ,3956LC,
Available on request16HP,1740RPM,1PH,60HZ,256TZ,0956LC,
Available on request7.5HP,1750RPM,1PH,60HZ,215TZ,0743LC
Available on request10HP,1740RPM,1PH,60HZ,215TZ,0748LC,
Available on requestESB-PLK24 Sealing Cover

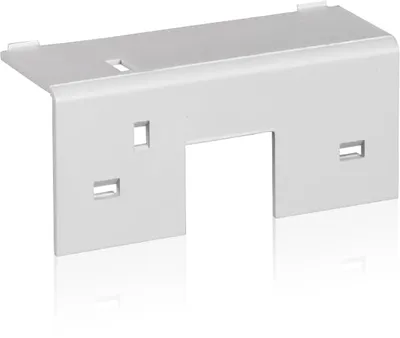

Available on requestESB-PLK40/63 Sealing Cover
