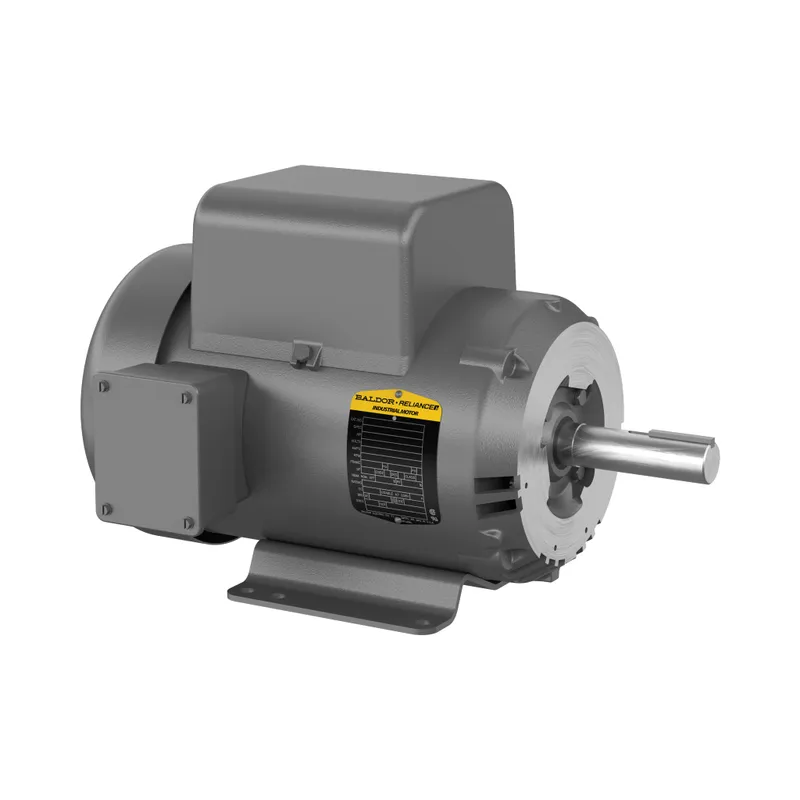

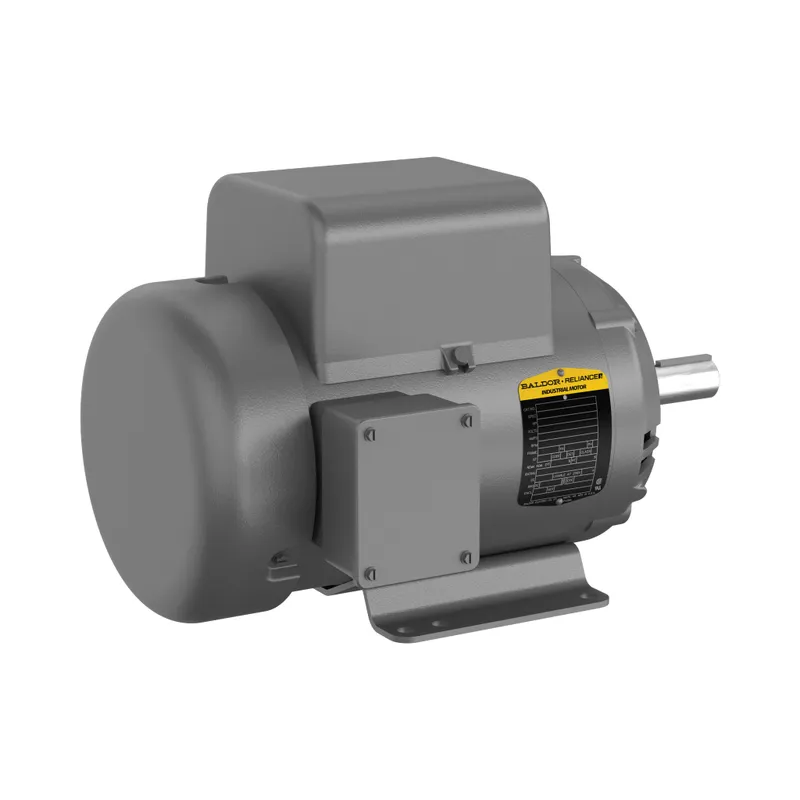

ABB GDL1605T
5HP,1725RPM,1PH,60HZ,184TZ,3646LC,O
- MPN
- GDL1605T
- Category
- Grain Dryer - Centrifugal fan
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB GDL1605T?
Farm Duty Motor 5 Hp 230 V (GDL1605T)
Specifications
Ordering
| Catalog Number | GDL1605T |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Not Regulated / Exempt |
| Insulation Class | F |
| NEMA Design Code | L |
| Number of Phases | 1-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 76 % |
| Rated Efficiency | 80 % |
| Service Factor | 1.00 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 5 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | ODP |
| Frame Material | Steel |
| Motor Frame Size | 184TZ |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 15.125 in |
| Product Net Weight | 97 lb |
| Product Net Width | 16.125 in |
| Dimension Diagram | 36LYM937 |
Certificates and Declarations
| Certification Agency | CURUS, UR |
| IDEA Granular Category Code (IGCC) | 1317 >> Farm duty motor AC |
| ETIM 7 | EC001851 - Electric motor |
