ABB FPM3314T

15//10HP,3475//2900RPM,3PH,60//50HZ

MPN: FPM3314T
Category: Fire pump

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB FPM3314T?

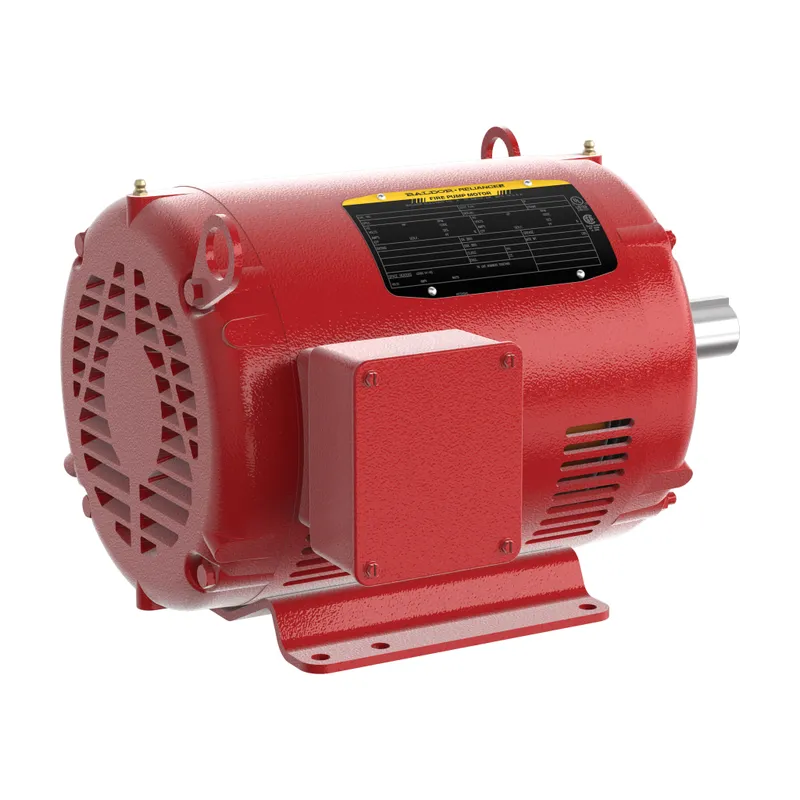

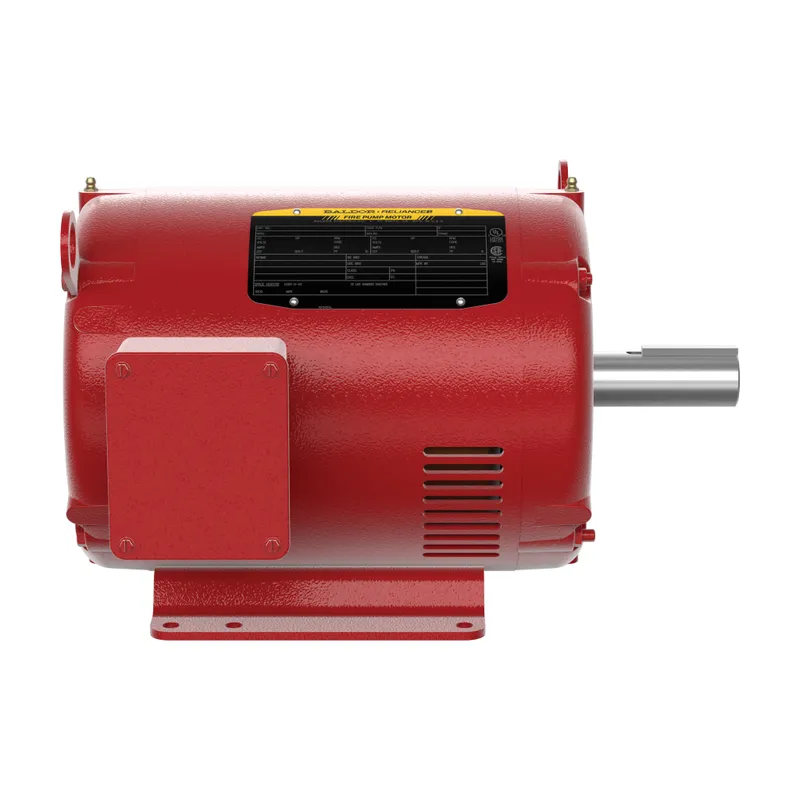

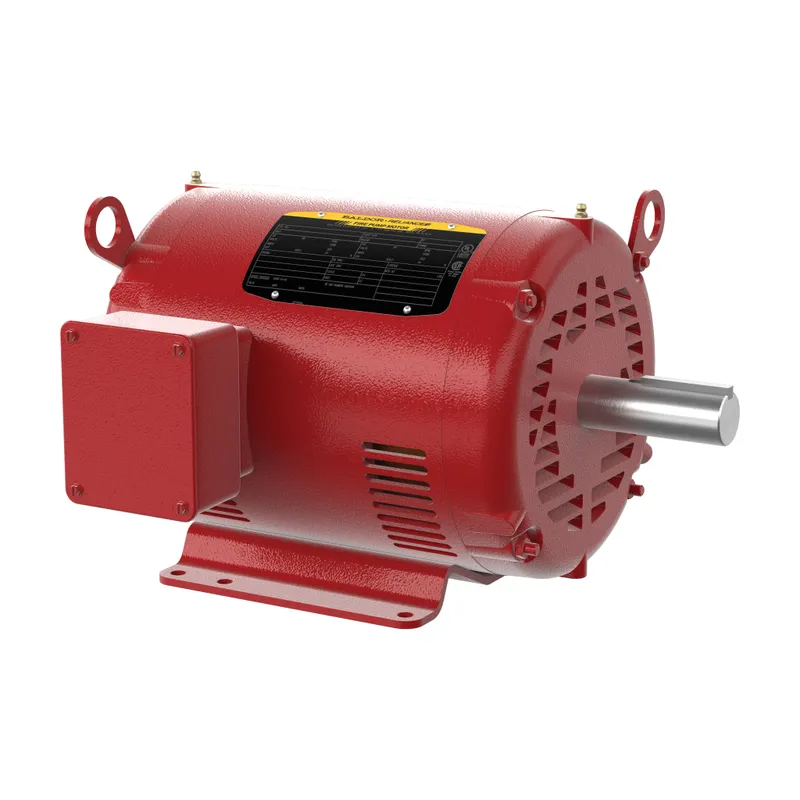

Pump Motor 15 Hp 190 V (FPM3314T)

Specifications

Ordering

Catalog Number	FPM3314T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Energy Efficiency (NEMA 12-11), IE3
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	88 %
Rated Efficiency	89.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3000 r/min, 3600 r/min
Output Power	15 Hp, 10 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	OPSB
Frame Material	Steel
Motor Frame Size	215T
Motor Base Type	Rigid
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	14.625 in
Product Net Weight	131 lb
Product Net Width	16 in
Dimension Diagram	37LYN755

Certificates and Declarations

Certification Agency	CSA, CSA EEV, UL, UR
IDEA Granular Category Code (IGCC)	1320 >> Pump motor AC
ETIM 7	EC001851 - Electric motor
