ABB FPM2565T-4

Fire pump

MPN: FPM2565T-4
Category: Fire pump

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB FPM2565T-4?

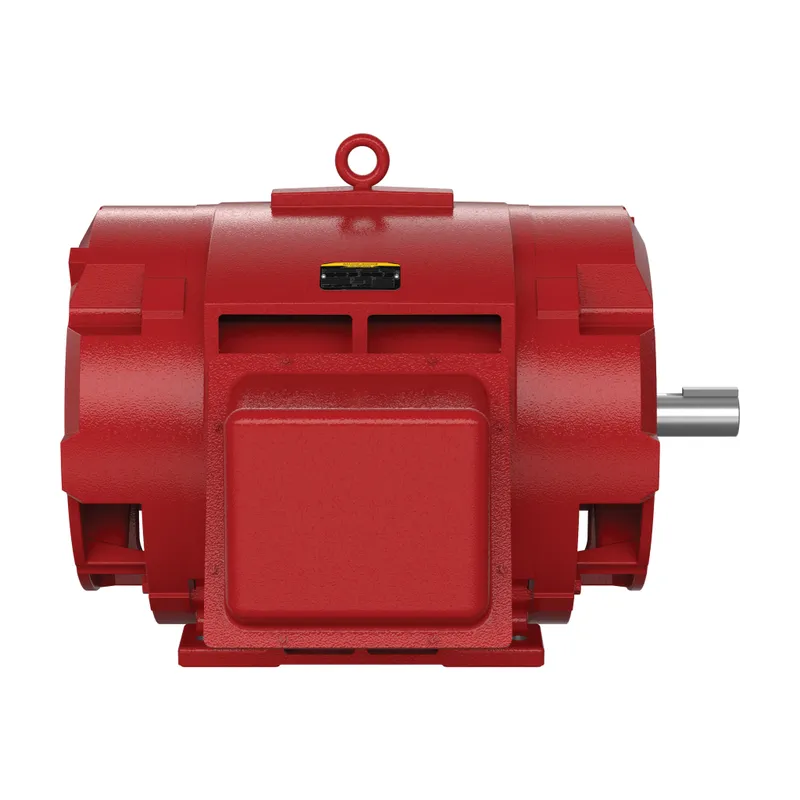

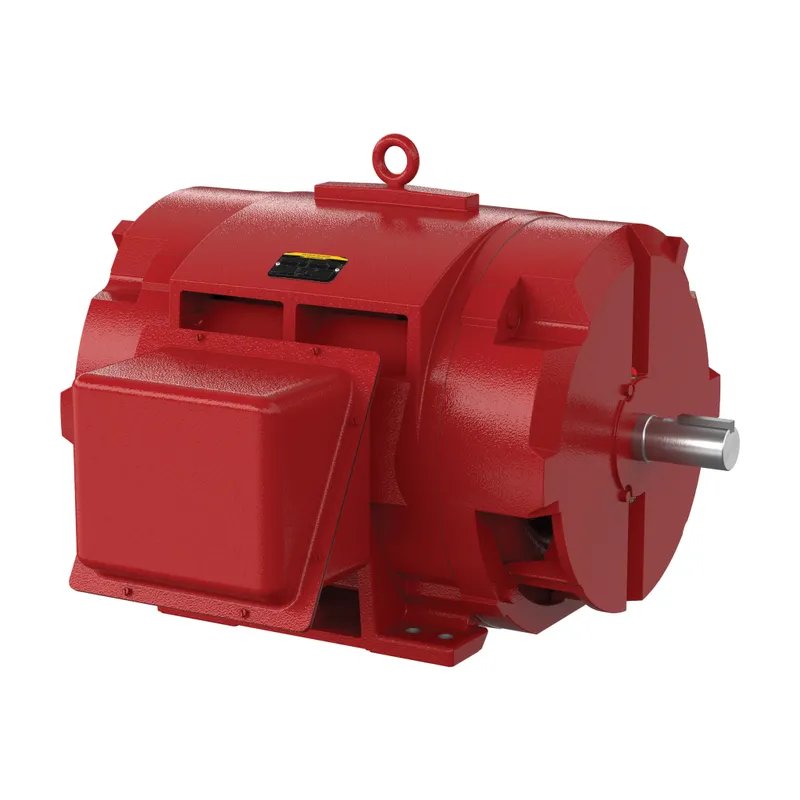

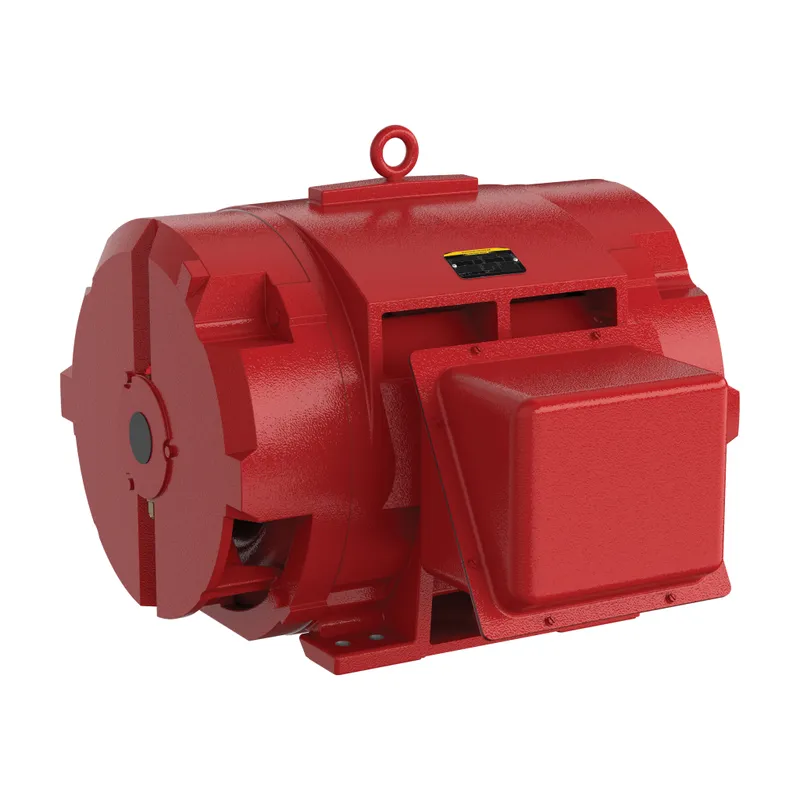

Pump Motor 200 Hp 380 V (FPM2565T-4)

Specifications

Ordering

Catalog Number	FPM2565T-4
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015381
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Energy Efficiency (NEMA 12-11)
Insulation Class	B
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	86 %
Rated Efficiency	94.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Y-Start/Delta Run
Synchronous Speed (vsyn)	3600 r/min
Output Power	200 Hp, 250.000 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	ODP
Frame Material	Cast Iron
Motor Frame Size	445TS
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	52.5 in
Product Net Weight	1737 lb
Product Net Width	40.75 in
Dimension Diagram	617428-044

Certificates and Declarations

Certification Agency	CCSAUSEEV, CULUS, UL
IDEA Granular Category Code (IGCC)	1320 >> Pump motor AC
ETIM 7	EC001851 - Electric motor
