ABB FPEP407000R0001
LP16 Connecting Strip
- MPN
- FPEP407000R0001
- EAN
- 3471520707118
- Category
- ABB Block Contactors
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the ABB FPEP407000R0001?

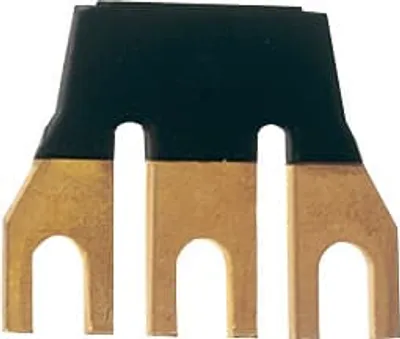

LP16 is an insulated connecting strip used on 3-pole A9 ... 16 contactors:
To connect 2 poles in parallel and thus increase the AC load passing through the flow path made up of the parallel-connected poles. The relevant cable cross-sectional area may limit the maximum permissible current: consult technical data information on catalogue
To connect 2 poles in series and thus increase the DC voltage controlled by the poles.
Specifications
General
| Order code (ABB product ID) | FPEP407000R0001 |
| Type | LP16 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 17.6 mm |
| Product Net Depth / Length | 1.2 mm |
| Product Net Height | 16.3 mm |
| Product Net Weight | 0.002 kg |
Technical
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Terminal Type | Screw Terminals |
| Suitable For | A9, A12, A16, AL9, AL9Z, AL12, AL12Z, AL16, AL16Z, N22E, N31E, N40E, NL22E, NLZ22E, NL31E, NLZ31E, NL40E, NLZ40E, AX06, AX09, AX12, AX18, NX22E, NX31E, NX40E |
| Product Name | Connecting Strip |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39120000 |
