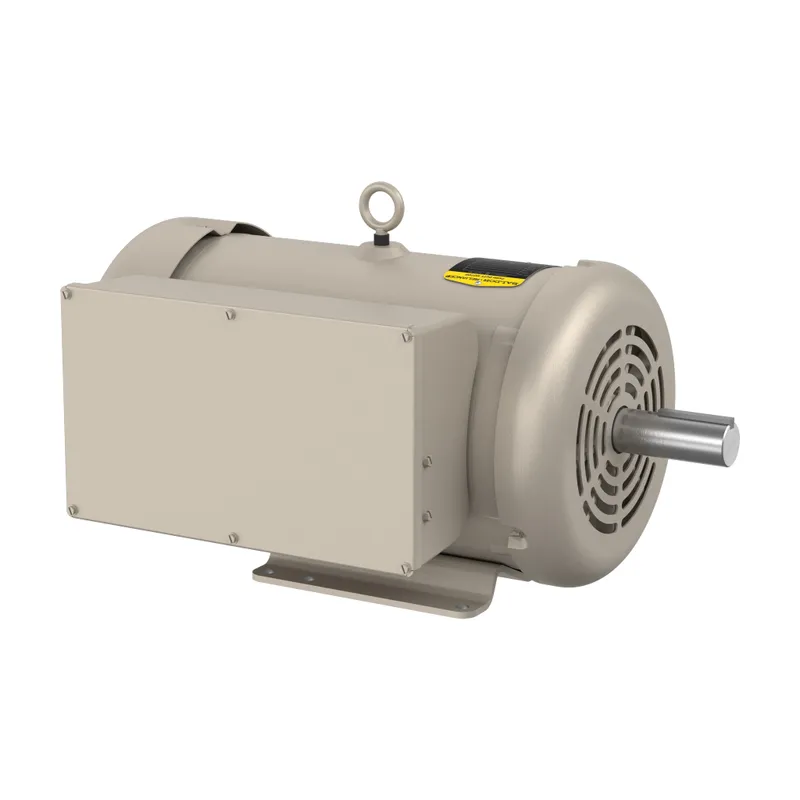

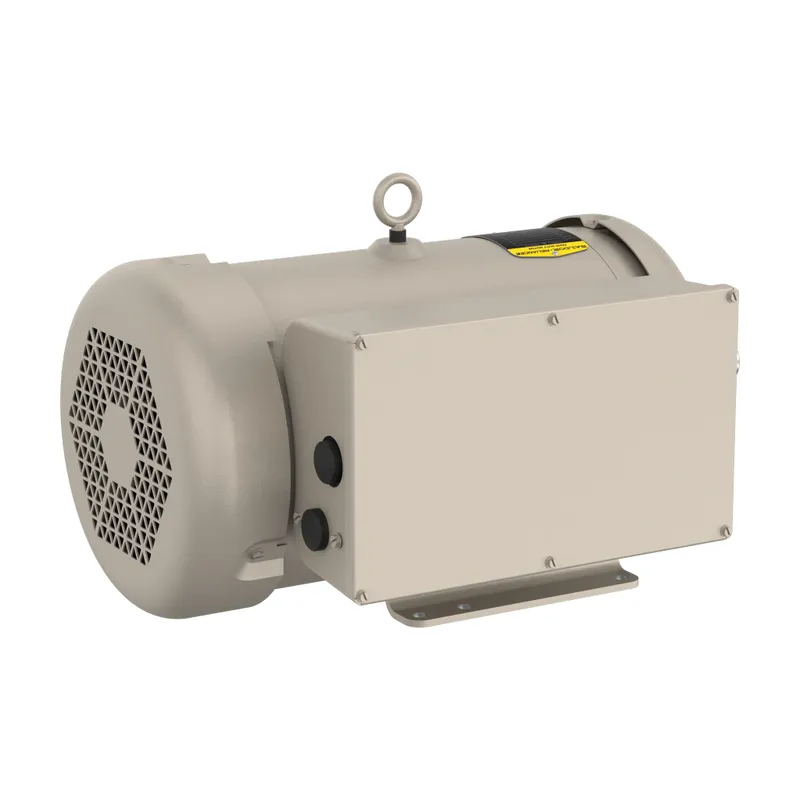

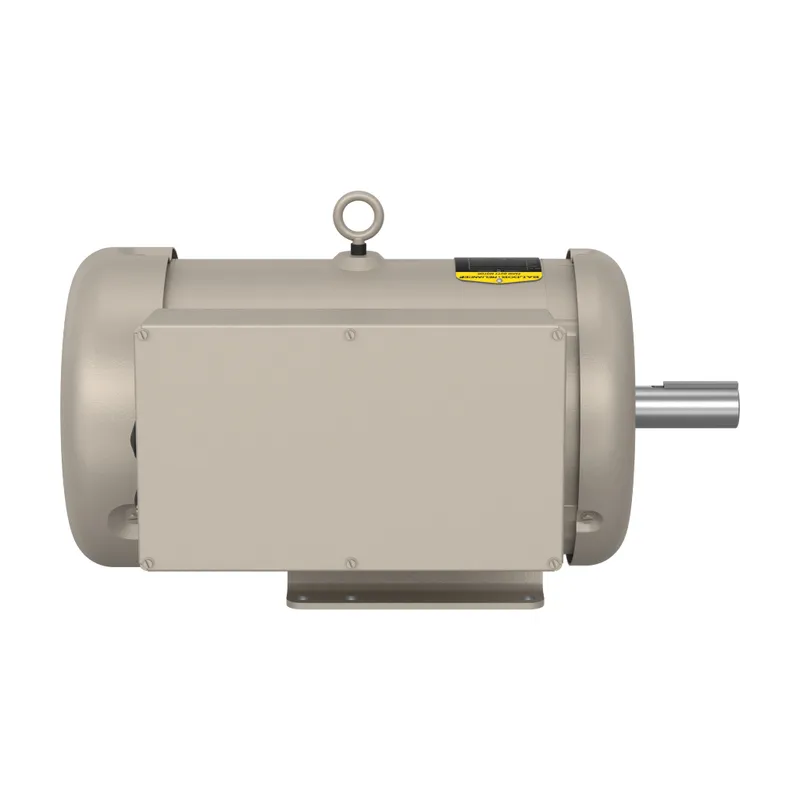

ABB FDL3737TM

10HP,1730RPM,1PH,60HZ,215T,3752LC,T

MPN: FDL3737TM
Category: Farm Duty Three Phase

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB FDL3737TM?

Farm Duty Motor 10 Hp 230 V (FDL3737TM)

Specifications

Ordering

Catalog Number	FDL3737TM
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	F
NEMA Design Code	L
Number of Phases	1-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	96 %
Rated Efficiency	86.50 %
Service Factor	1.00
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	10 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	215T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	17.375 in
Product Net Weight	172 lb
Product Net Width	16.5 in
Dimension Diagram	37LYN370

Certificates and Declarations

Certification Agency	CURUS, UR
IDEA Granular Category Code (IGCC)	1317 >> Farm duty motor AC
ETIM 7	EC001851 - Electric motor
