ABB

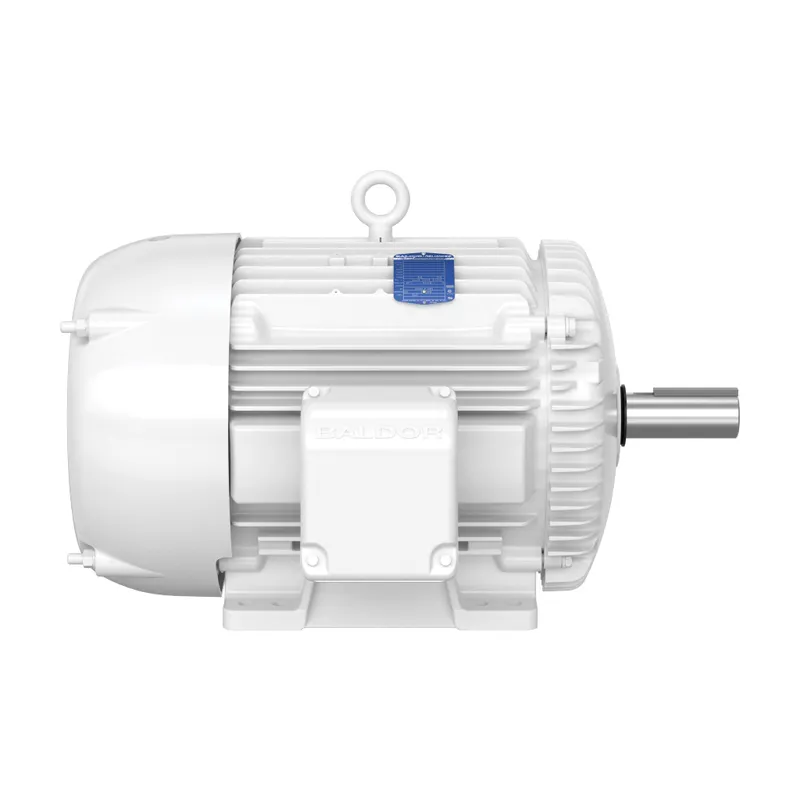

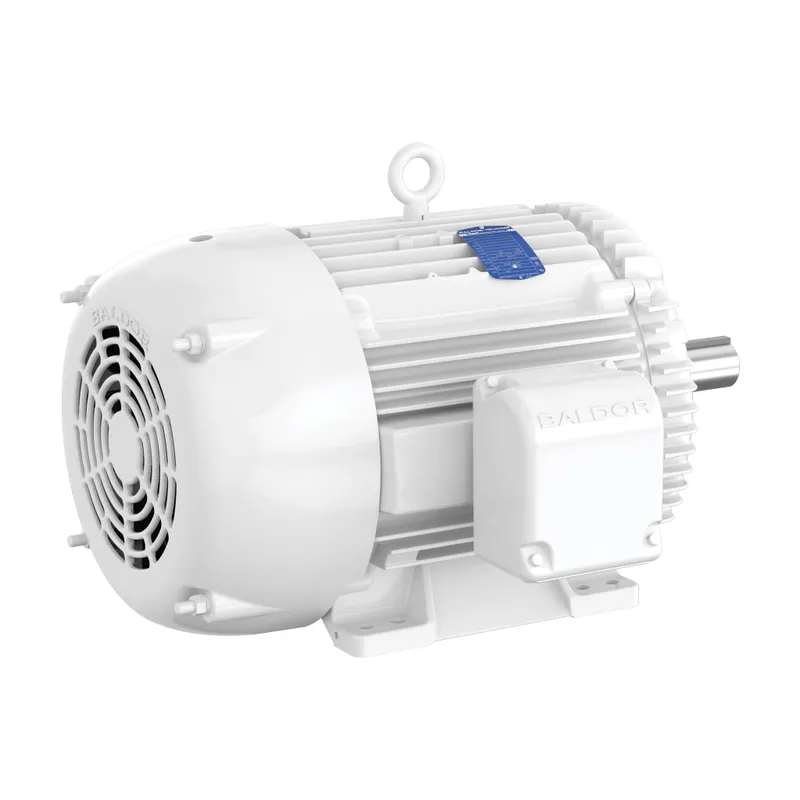

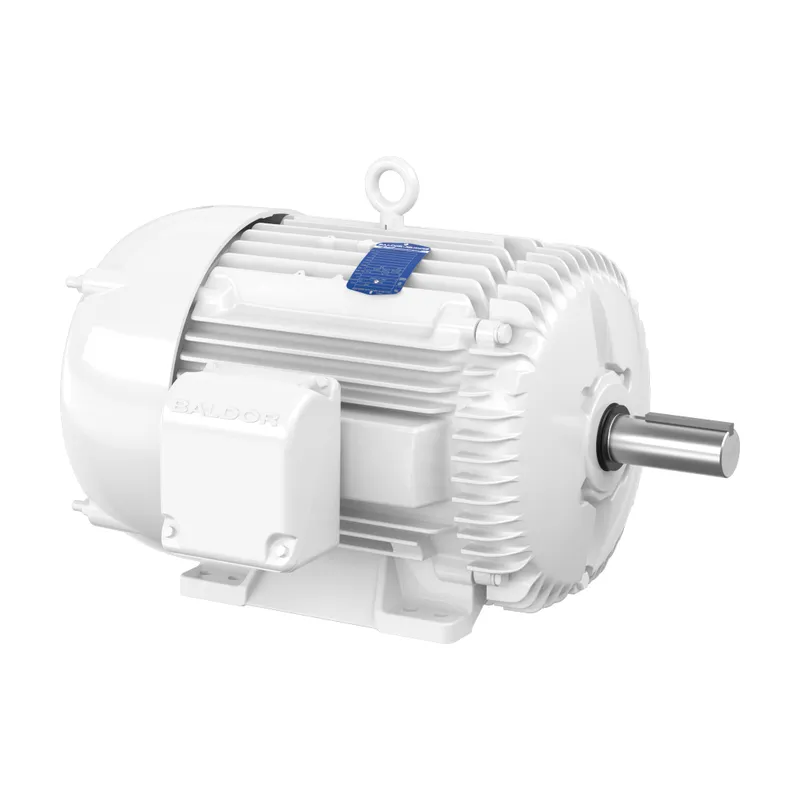

ABB EWDM4116T

25HP,880RPM,3PH,60HZ,326T,1272M,TEF

MPN: EWDM4116T
Category: Stainless Steel

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB EWDM4116T?

Washdown Motor 25 Hp 230 V (EWDM4116T)

Specifications

Ordering

Catalog Number	EWDM4116T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	8P
Number of Speeds	Single Speed
Power Factor	70 %
Rated Efficiency	90.20 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	900 r/min
Output Power	25 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Iron
Motor Frame Size	326T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	21.625 in
Product Net Weight	578 lb
Product Net Width	25.688 in
Dimension Diagram	12LYP064

Certificates and Declarations

Certification Agency	CURUSEEV, NEMA PREMIUM, UR
ETIM 7	EC001851 - Electric motor

EWDM4116T: frequently asked questions

When can EWDM4116T be shipped?

EWDM4116T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EWDM4116T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EWDM4116T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EWDM4116T, subject to availability and destination.
