Home / ABB / White Washdown / ABB EWDM3702T
ABB

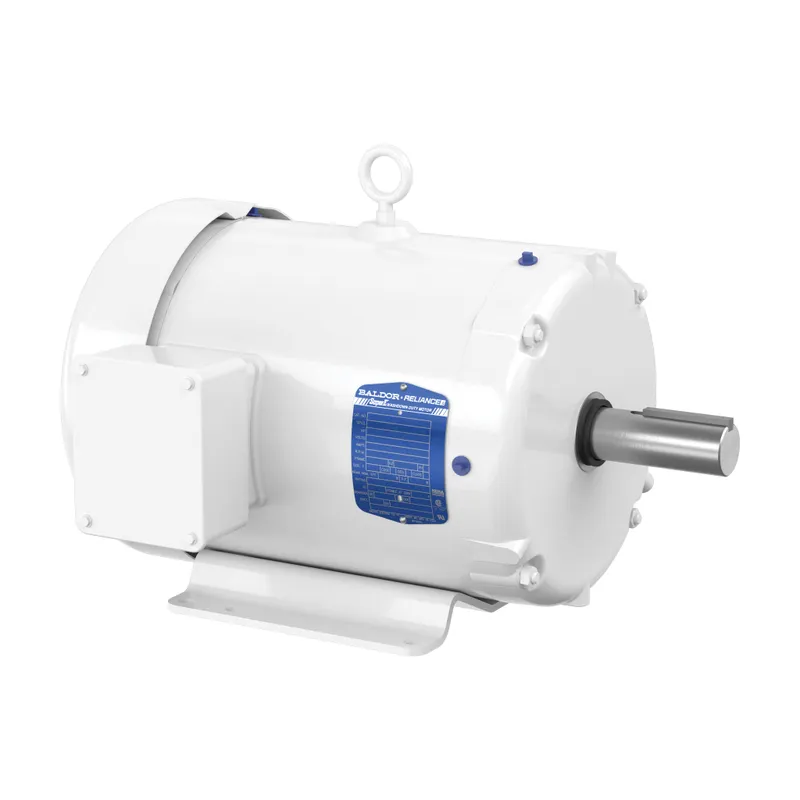

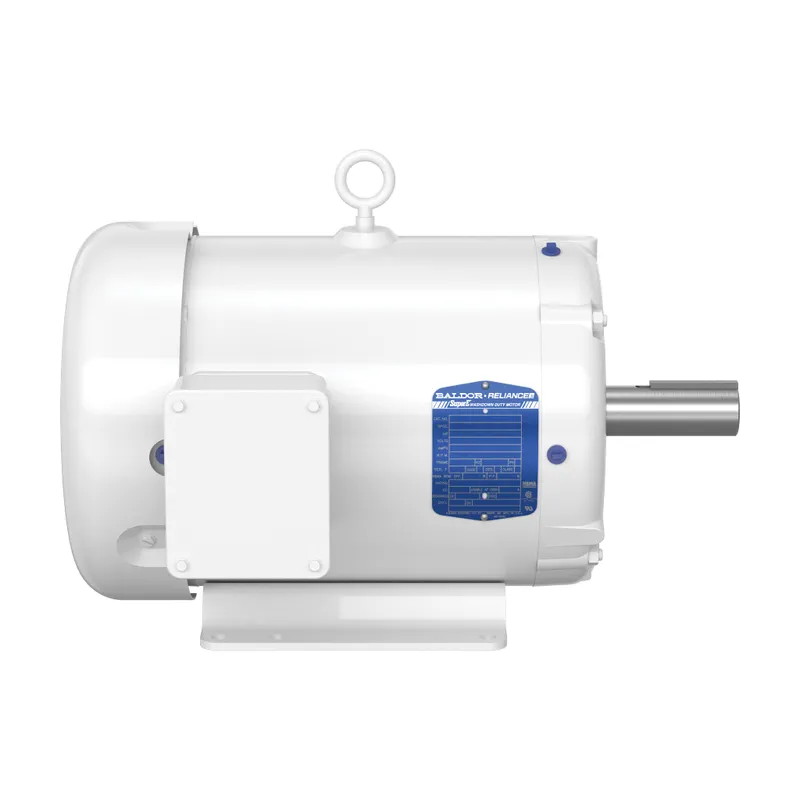

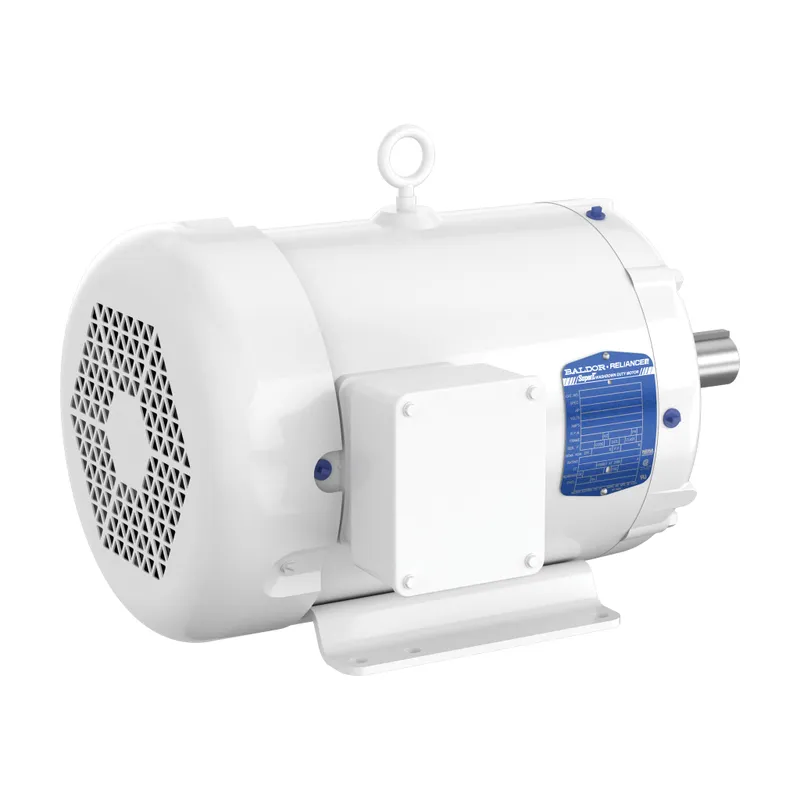

ABB EWDM3702T

2HP,865RPM,3PH,60HZ,213T,TEFC,F1

MPN
EWDM3702T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB EWDM3702T?

Washdown Motor 2 Hp 230 V (EWDM3702T)

Specifications

Ordering

Catalog NumberEWDM3702T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles8P
Number of SpeedsSingle Speed
Power Factor61 %
Rated Efficiency85.50 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)900 r/min
Output Power2 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Frame MaterialSteel
Motor Frame Size213T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height16.25 in
Product Net Weight111 lb
Product Net Width16.625 in
Dimension Diagram37LYE572

Certificates and Declarations

Certification AgencyCSA, CSA EEV, UR
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor

EWDM3702T: frequently asked questions

When can EWDM3702T be shipped?

EWDM3702T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EWDM3702T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EWDM3702T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EWDM3702T, subject to availability and destination.
