Home / ABB / Three phase enclosed motor / ABB EWCM3709T

ABB

ABB EWCM3709T

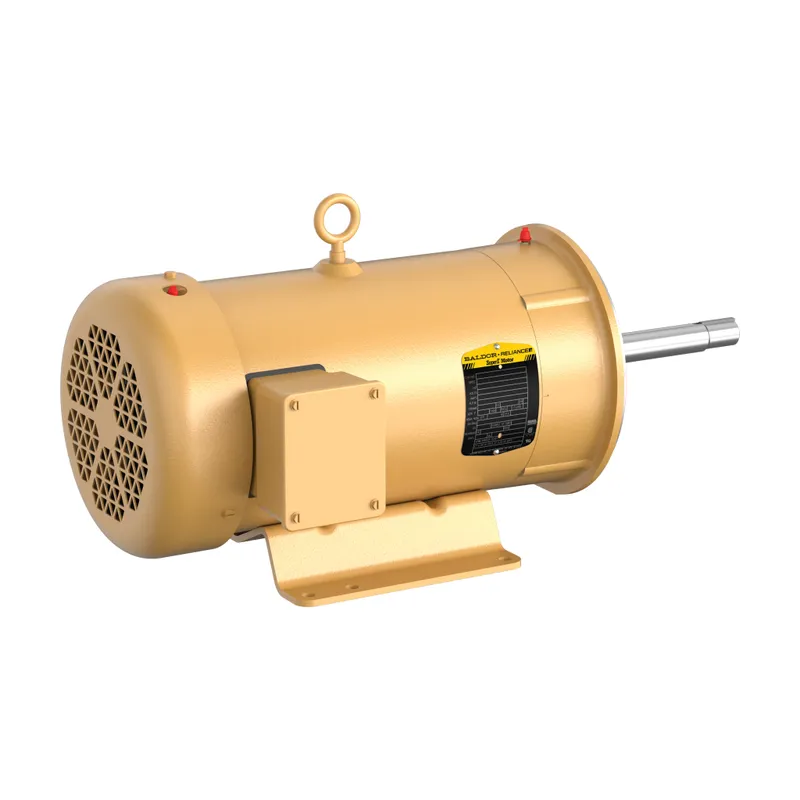

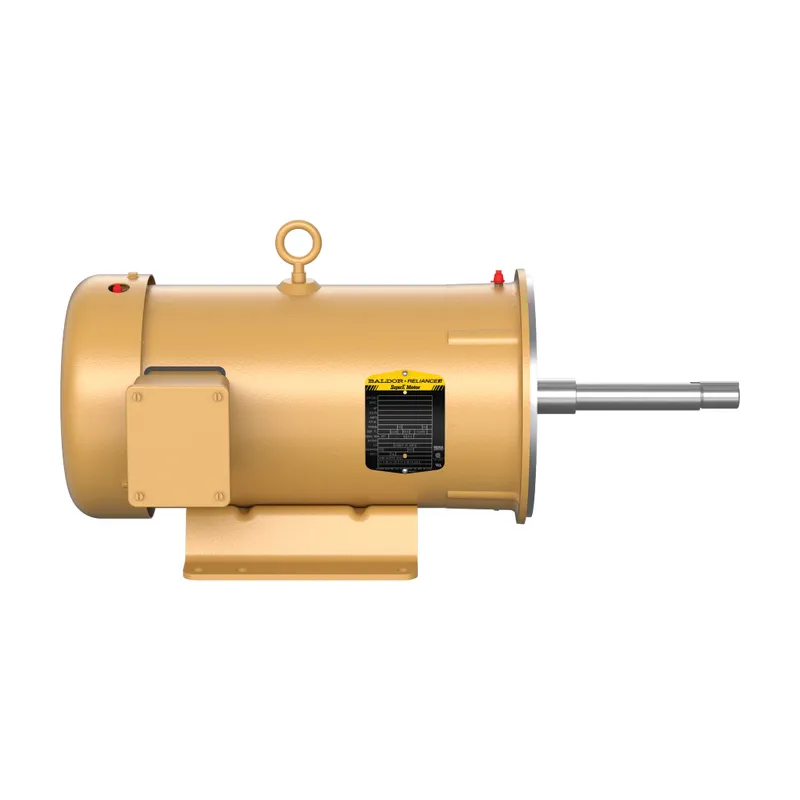

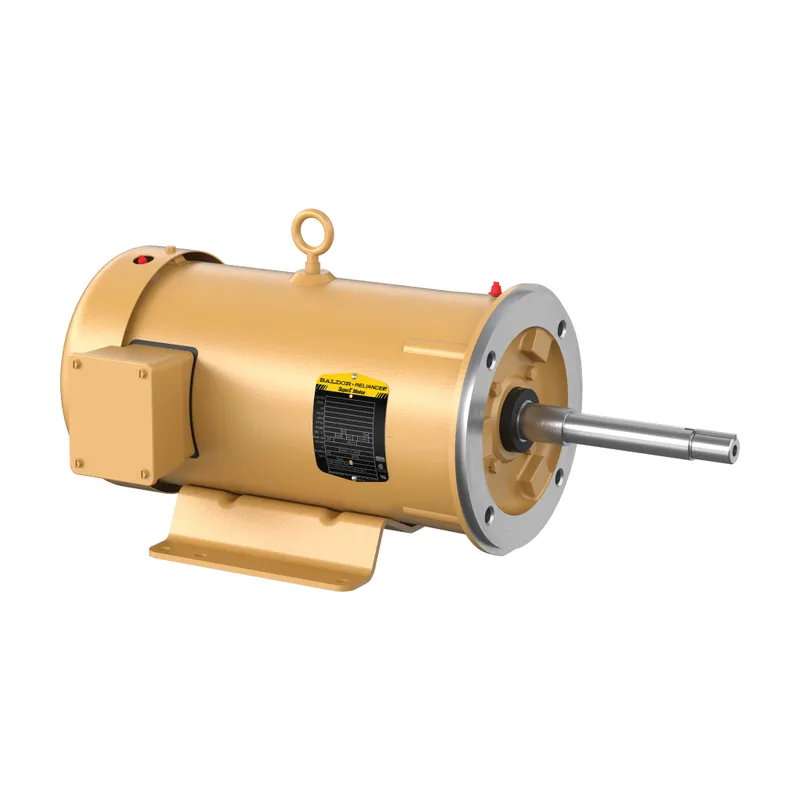

7.5HP,3450RPM,3PH,60HZ,213TCZ,3646M

MPN: EWCM3709T
Category: Three phase enclosed motor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB EWCM3709T?

General Purpose Motor 7.5 Hp 230 V (EWCM3709T)

Specifications

Ordering

Catalog Number	EWCM3709T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	79 %
Rated Efficiency	89.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	7.5 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	213TCZ
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	16.75 in
Product Net Weight	96 lb
Product Net Width	18.313 in
Dimension Diagram	36LYN536

Certificates and Declarations

Certification Agency	CSA, CSA EEV, UR
IDEA Granular Category Code (IGCC)	1328 >> Multi phase motor AC
ETIM 7	EC001851 - Electric motor
