Home / ABB / ABB EM7071T

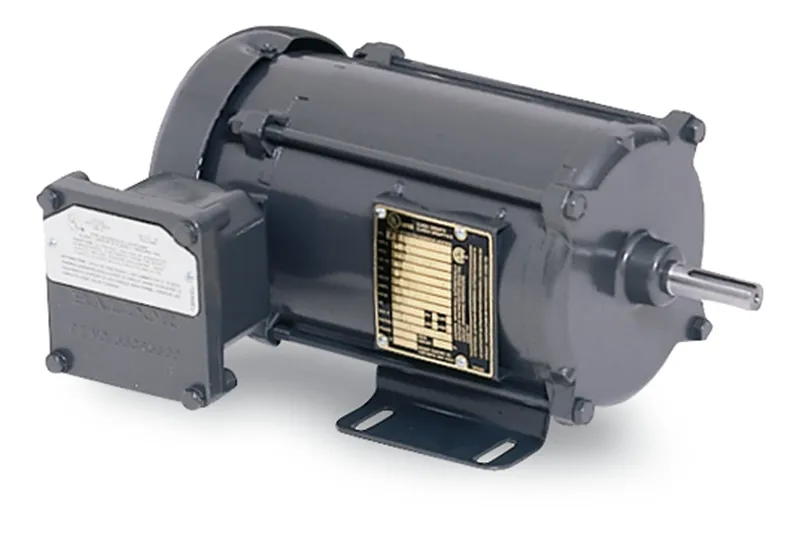

ABB EM7071T

1.5//2HP,2890//3490RPM,3PH,50//60HZ

MPN: EM7071T

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB EM7071T?

1.500 hp, 2.000 hp, 3490//2890 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 143T, F1

Specifications

Additional Information

ABB Type Designation	1.5//2HP,2890//3490RPM,3PH,50//60HZ
Ambient Temperature	40 °C
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	EM7071T
Certification Agency	CSA, CSA EEV, UR
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Design	B
Dimension Diagram	35LYE362
Efficiency Level	2015 Small Motor Standard, IE3, Premium Efficiency (NEMA 12-12)
Enclosure Type	XPFC
ETIM 7	EC001851 - Electric motor
Explosion Proof Group Class	CLI GP D, CLII GP F,G G
Explosion Protection	Explosion-proof
Frame Material	Steel
Frame Size	Undefined
Frequency (f)	50 Hz, 60 Hz Hz
Global Commercial Alias	EM7071T
Gross Weight	23.608 kg kg
Horsepower Rating UL/CSA	1.500 Hp, 2.000 Hp
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
Insulation Class	B
Invoice Description	1.500 hp, 2.000 hp, 3490//2890 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 143T, F1 V
Made To Order	No
Marketing Description	1.500 hp, 2.000 hp, 3490//2890 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 143T, F1 V
Minimum Order Quantity	0.000 piece
Motor Base Type	Rigid
Motor Frame Size	143T
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Order Multiple	0.000 piece
Power Factor	88 %
Product Name	-
Product Net Depth / Length	15.23 in
Product Net Weight	23.608 kg kg
Quote Only	No
Rated Current (In)	5 A, 2.5 A, 4.8 A, 2.4 A A
Rated Efficiency	85.5 %
Rated Speed	3,490 r/min, 2,890 r/min
Selling Unit of Measure	piece
Service Factor	1.00
Service Factor Percentage	1.00 %
Shaft Diameter	0.875 in
Standards	NEMA
Starting of Motor	Direct On Line
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Temperature Class	T3C
Type of Duty	CONT
UNSPSC	26101112
Voltage Rating	460 V, 380 V, 230 V, 190 V V

EM7071T: frequently asked questions

When can EM7071T be shipped?

EM7071T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EM7071T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EM7071T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EM7071T, subject to availability and destination.
