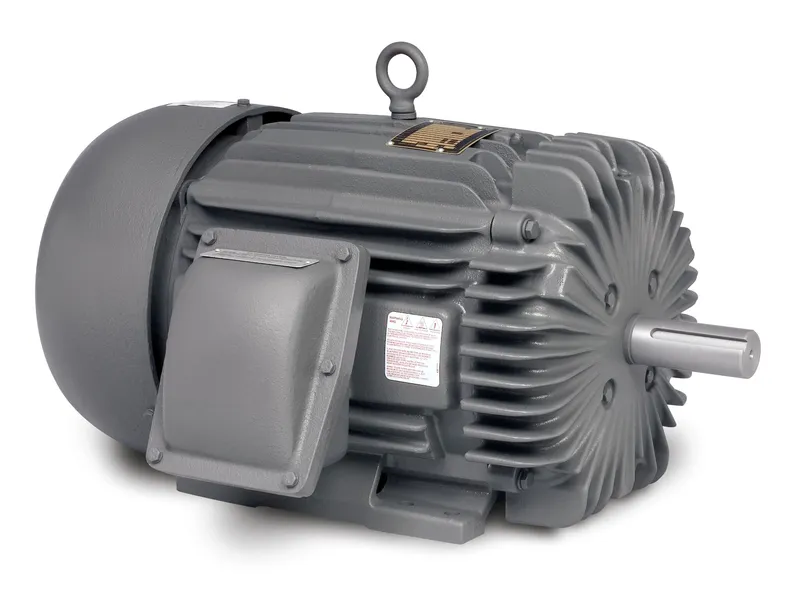

ABB EM7063T

25//20HP,3520//2930RPM,3PH,60//50HZ

MPN: EM7063T

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB EM7063T?

20.000 hp, 25.000 hp, 3520//2930 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 284TS, F1

Specifications

Additional Information

ABB Type Designation	25//20HP,3520//2930RPM,3PH,60//50HZ
Ambient Temperature	40 °C
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	EM7063T
Certification Agency	CSA, CSA EEV, UL, UR
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Design	B
Dimension Diagram	10LYE128
Efficiency Level	IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Enclosure Type	XPFC
ETIM 7	EC001851 - Electric motor
Explosion Proof Group Class	CLI GP D, CLII GP F,G G
Explosion Protection	Explosion-proof
Frame Material	Iron
Frame Size	Undefined
Frequency (f)	50 Hz, 60 Hz Hz
Global Commercial Alias	EM7063T
Gross Weight	230.178 kg kg
Horsepower Rating UL/CSA	20.000 Hp, 25.000 Hp
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
Insulation Class	F
Invoice Description	20.000 hp, 25.000 hp, 3520//2930 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 284TS, F1 V
Made To Order	No
Marketing Description	20.000 hp, 25.000 hp, 3520//2930 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 284TS, F1 V
Minimum Order Quantity	0.000 piece
Motor Base Type	Rigid
Motor Frame Size	284TS
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Order Multiple	0.000 piece
Power Factor	89 %
Product Name	-
Product Net Depth / Length	27.24 in
Product Net Weight	230.178 kg kg
Quote Only	No
Rated Current (In)	57 A, 28.5 A, 56 A, 28 A A
Rated Efficiency	91.7 %
Rated Speed	3,520 r/min, 2,930 r/min
RoHS Declaration	RoHS Compliant
Selling Unit of Measure	piece
Service Factor Percentage	1.00 %
Shaft Diameter	1.625 in
Standards	NEMA
Starting of Motor	Direct On Line
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Temperature Class	T3C
Type of Duty	CONT
UNSPSC	26101112
Voltage Rating	460 V, 380 V, 230 V, 190 V V
