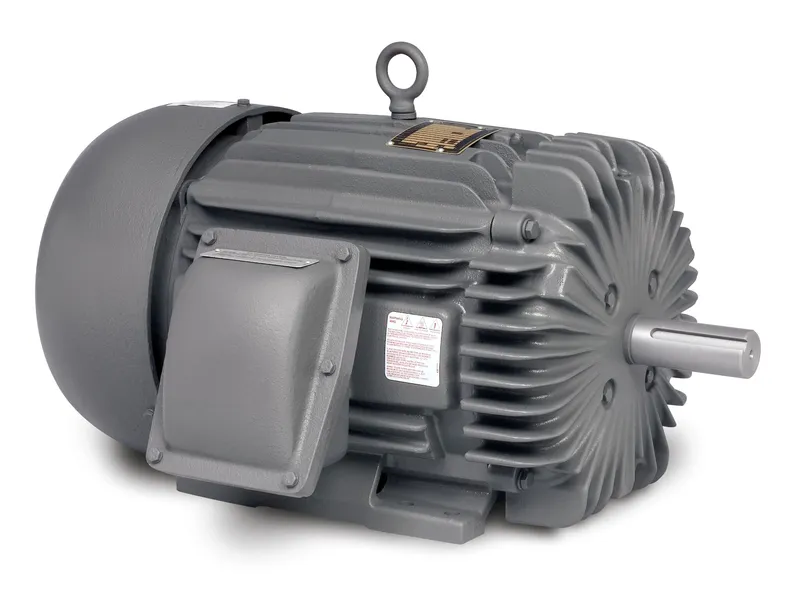

ABB EM7048T

7.5//5HP,1180//980RPM,3PH,60//50HZ

MPN: EM7048T

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB EM7048T?

5.000 hp, 7.500 hp, 1180//980 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 254T, F1

Specifications

Additional Information

ABB Type Designation	7.5//5HP,1180//980RPM,3PH,60//50HZ,
Ambient Temperature	40 °C
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	EM7048T
Certification Agency	CSA, CSA EEV, UL, UR
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Design	A A
Dimension Diagram	09LYE270
Efficiency Level	Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Enclosure Type	XPFC
ETIM 7	EC001851 - Electric motor
Explosion Proof Group Class	CLI GP D, CLII GP F,G G
Explosion Protection	Explosion-proof
Frame Material	Iron
Frame Size	Undefined
Frequency (f)	50 Hz, 60 Hz Hz
Global Commercial Alias	EM7048T
Gross Weight	173.428 kg kg
Horsepower Rating UL/CSA	5.000 Hp, 7.500 Hp
IDEA Granular Category Code (IGCC)	1328 >> Multi phase motor AC
Insulation Class	B
Invoice Description	5.000 hp, 7.500 hp, 1180//980 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 254T, F1 V
Made To Order	No
Marketing Description	5.000 hp, 7.500 hp, 1180//980 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 254T, F1 V
Minimum Order Quantity	0.000 piece
Motor Base Type	Rigid
Motor Frame Size	254T
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	Single Speed
Order Multiple	0.000 piece
Power Factor	70 %
Product Name	-
Product Net Depth / Length	25.50 in
Product Net Weight	173.428 kg kg
Quote Only	No
Rated Current (In)	22 A, 11 A, 19.2 A, 9.6 A A
Rated Efficiency	91.0 %
Rated Speed	980 r/min, 1,180 r/min
Selling Unit of Measure	piece
Service Factor	1.00
Service Factor Percentage	1.00 %
Shaft Diameter	1.625 in
Standards	NEMA
Starting of Motor	Direct On Line
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Temperature Class	T3C
Type of Duty	CONT
UNSPSC	26101115
Voltage Rating	460 V, 380 V, 230 V, 190 V V
