ABB EM4106T-8

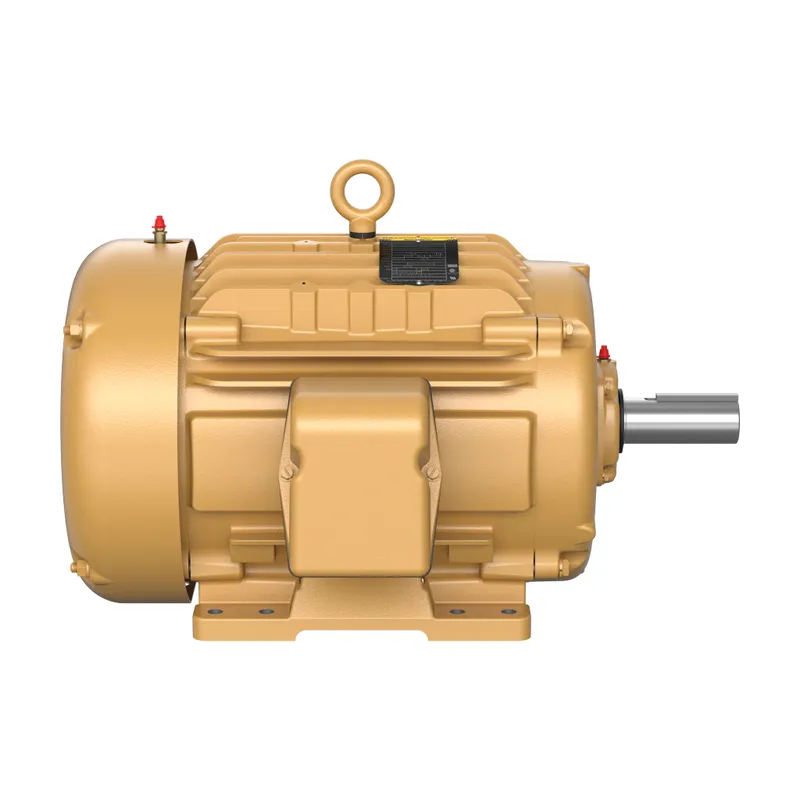

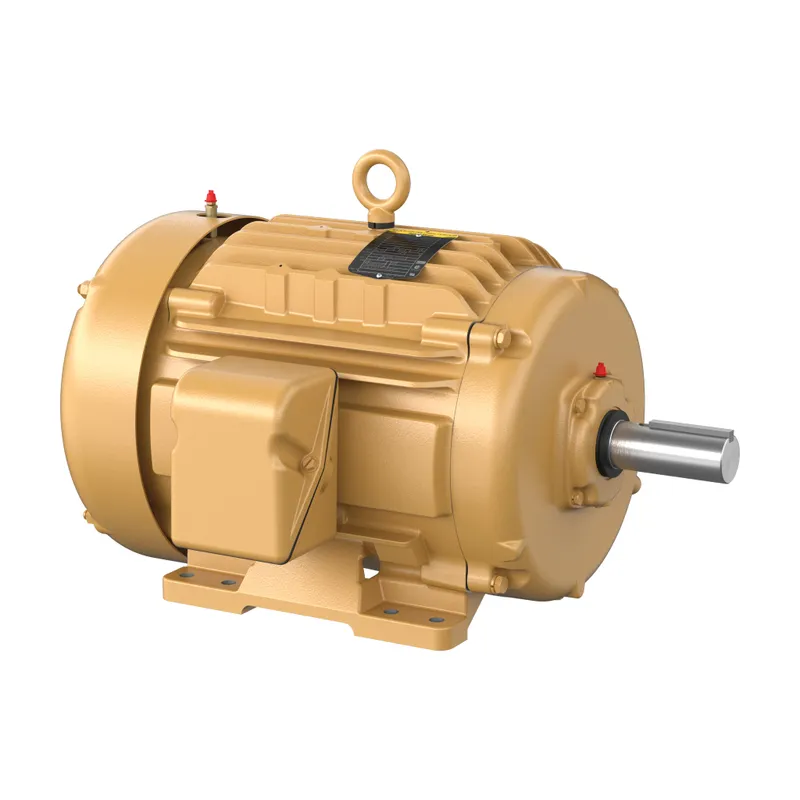

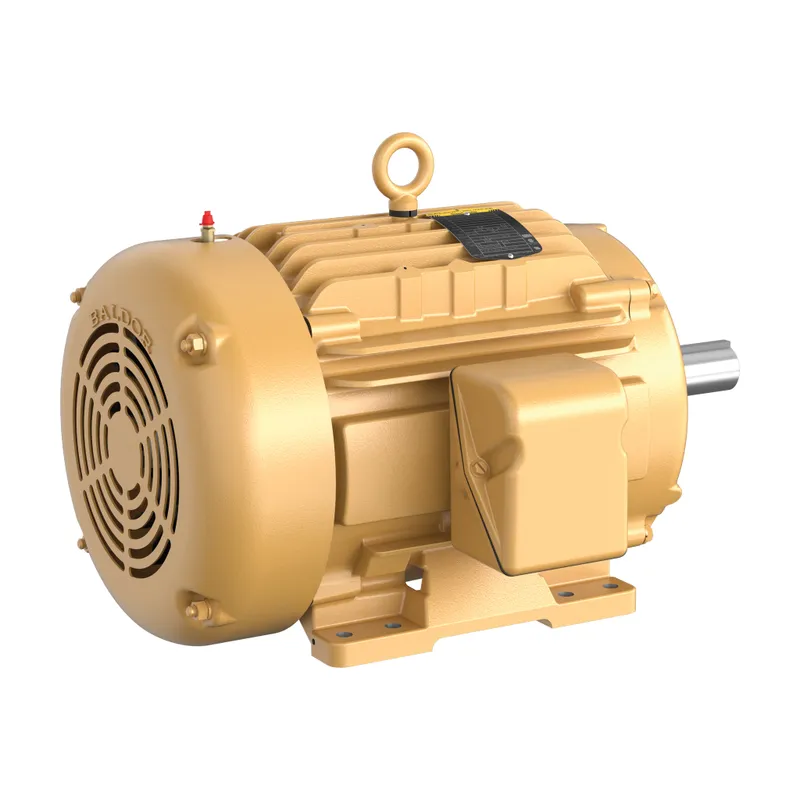

20HP,3510RPM,3PH,60HZ,256T,0936M,TE
- MPN
- EM4106T-8
- Category
- Three phase enclosed motor
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB EM4106T-8?
General Purpose Motor 20 Hp 200 V (EM4106T-8)
Specifications
Ordering
| Catalog Number | EM4106T-8 |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 2P |
| Number of Speeds | Single Speed |
| Power Factor | 89 % |
| Rated Efficiency | 91 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Pulse Width Start |
| Synchronous Speed (vsyn) | 3600 r/min |
| Output Power | 20 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Frame Material | Cast Iron |
| Motor Frame Size | 256T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 17.438 in |
| Product Net Weight | 242 lb |
| Product Net Width | 20.5 in |
| Dimension Diagram | 09LYP011 |
Certificates and Declarations
| Certification Agency | CURUSEEV, NEMA_PREMIUM, UR |
| IDEA Granular Category Code (IGCC) | 1325 >> General purpose motor AC |
| ETIM 7 | EC001851 - Electric motor |
EM4106T-8: frequently asked questions
When can EM4106T-8 be shipped?
EM4106T-8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EM4106T-8 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EM4106T-8 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EM4106T-8, subject to availability and destination.
