ABB

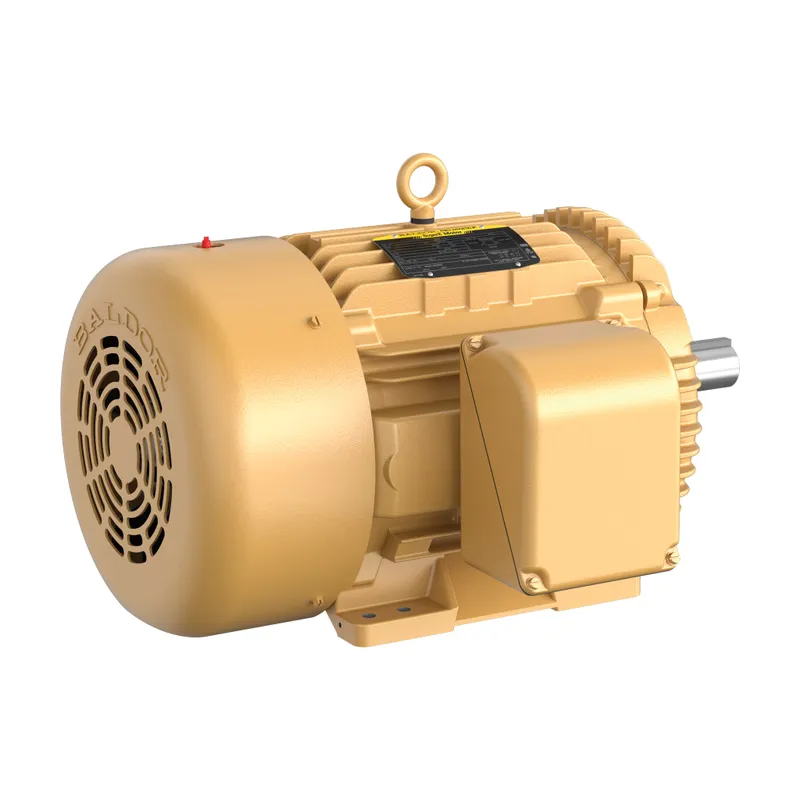

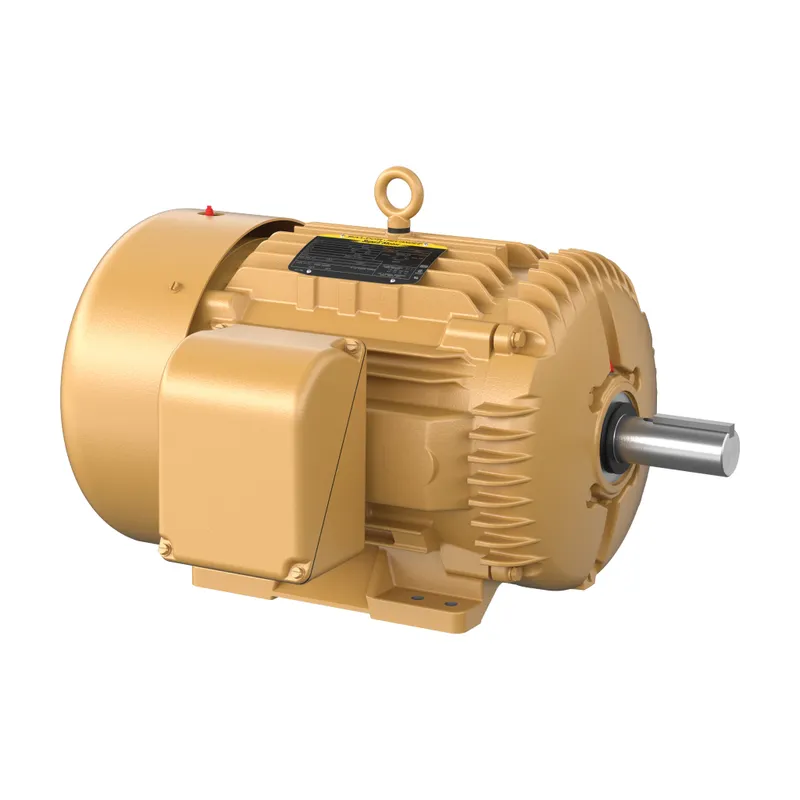

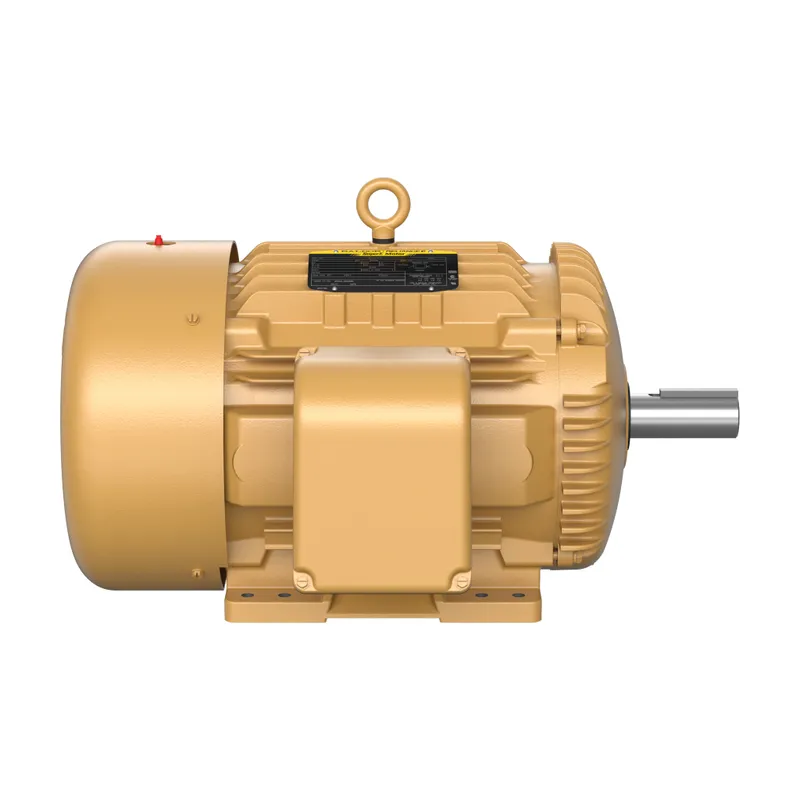

ABB EM4103T-8

25HP,1775RPM,3PH,60HZ,284T,1054M,TE

MPN: EM4103T-8
Category: Three phase enclosed motor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB EM4103T-8?

General Purpose Motor 25 Hp 200 V (EM4103T-8)

Specifications

Ordering

Catalog Number	EM4103T-8
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	81 %
Rated Efficiency	93.60 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Pulse Width Start
Synchronous Speed (vsyn)	1800 r/min
Output Power	25 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Cast Iron
Motor Frame Size	284T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	19.625 in
Product Net Weight	382 lb
Product Net Width	23.75 in
Dimension Diagram	10LYC151

Certificates and Declarations

Certification Agency	CURUSEEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)	1328 >> Multi phase motor AC
ETIM 7	EC001851 - Electric motor
