Home / ABB / Three phase enclosed motor / ABB EM3545-57

ABB

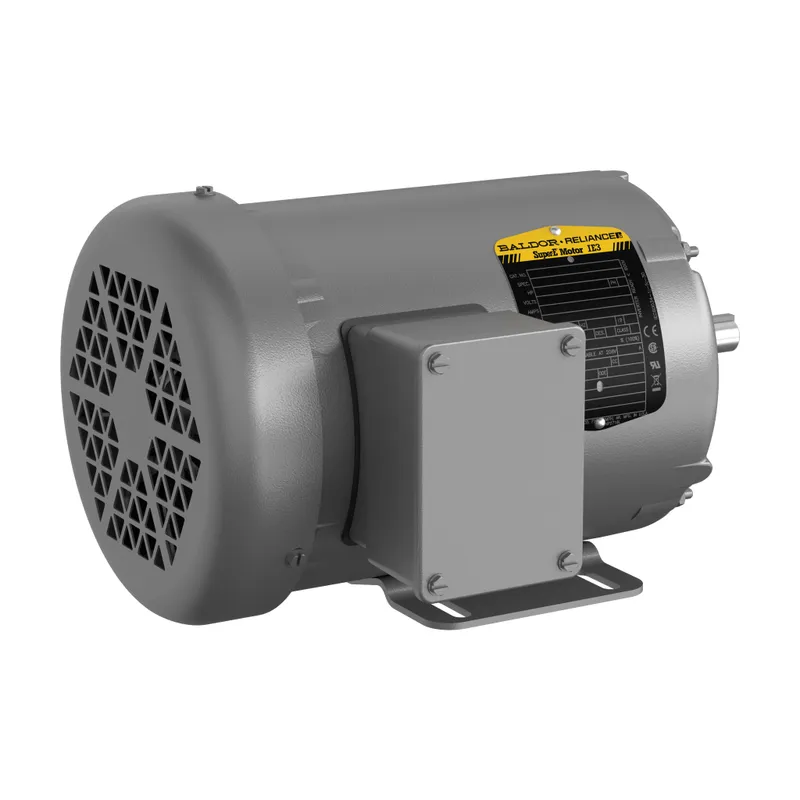

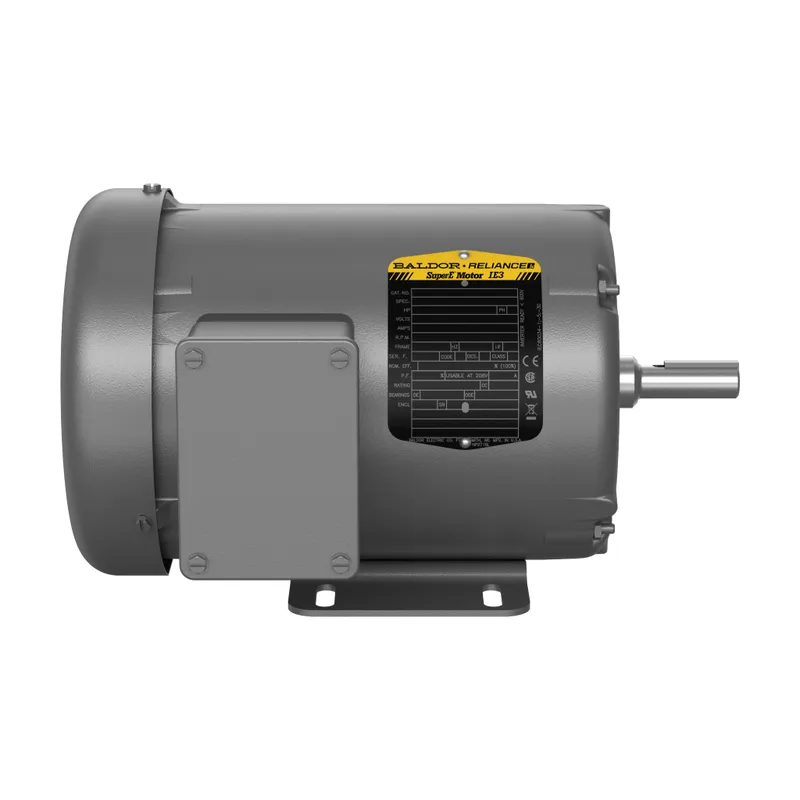

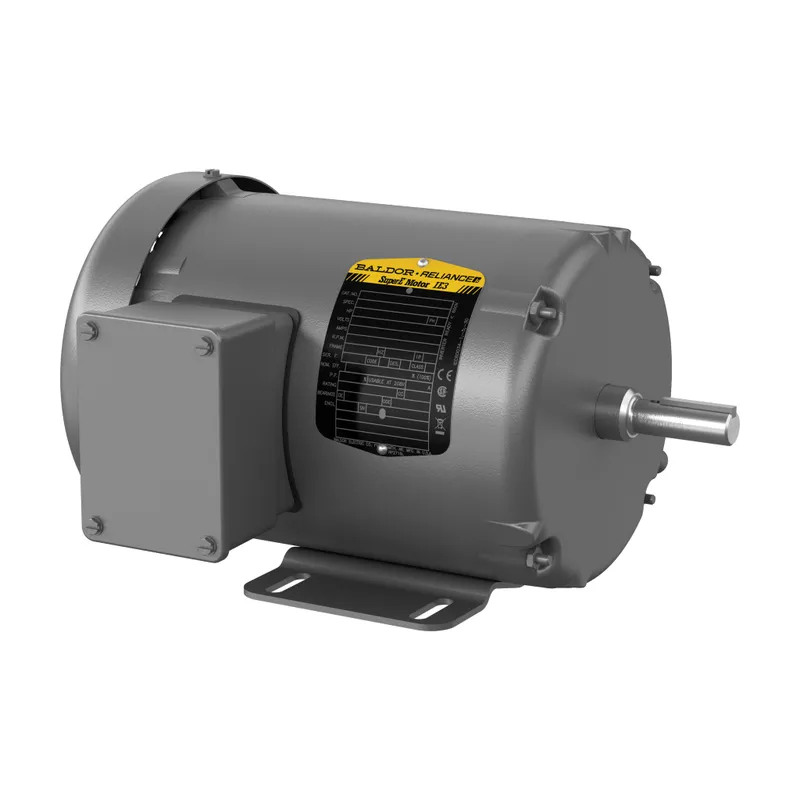

ABB EM3545-57

1HP,2850RPM,3PH,50HZ,56,3516M,TEFC

MPN: EM3545-57
Category: Three phase enclosed motor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB EM3545-57?

General Purpose Motor 1 Hp 230 V (EM3545-57)

Specifications

Ordering

Catalog Number	EM3545-57
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	IE3
Insulation Class	B
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	87 %
Rated Efficiency	82.50 %
Service Factor	1.25
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3000 r/min
Output Power	1 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	56
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	35 lb
Product Net Width	13.75 in
Dimension Diagram	35LYE2941

Certificates and Declarations

Certification Agency	C UR US, CE, CURUS, IE3, UKCA, WEEE
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
