Home / ABB / Three phase open motors / ABB EM2558TS-4
ABB

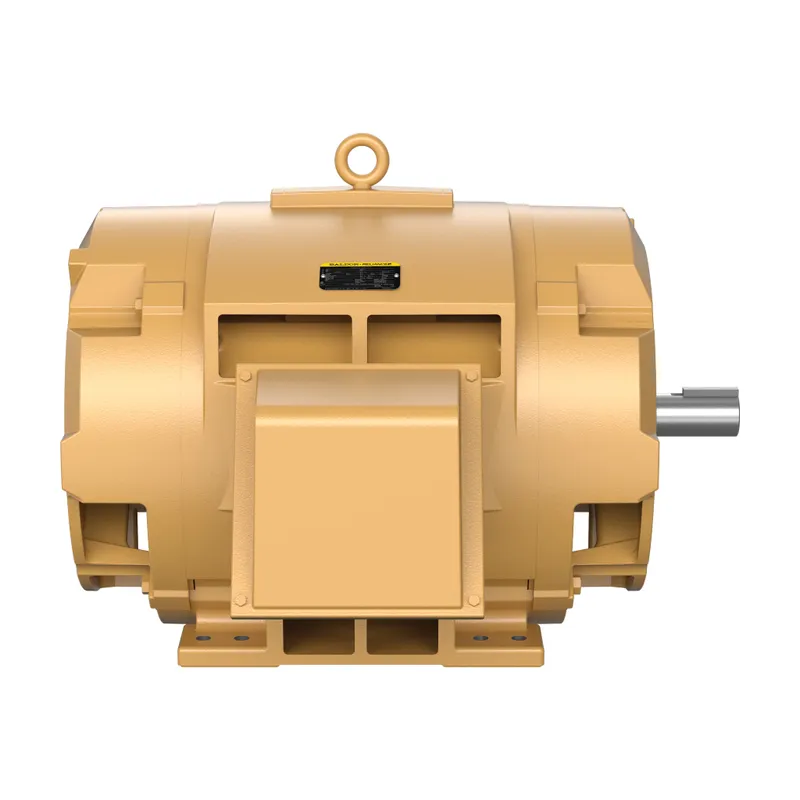

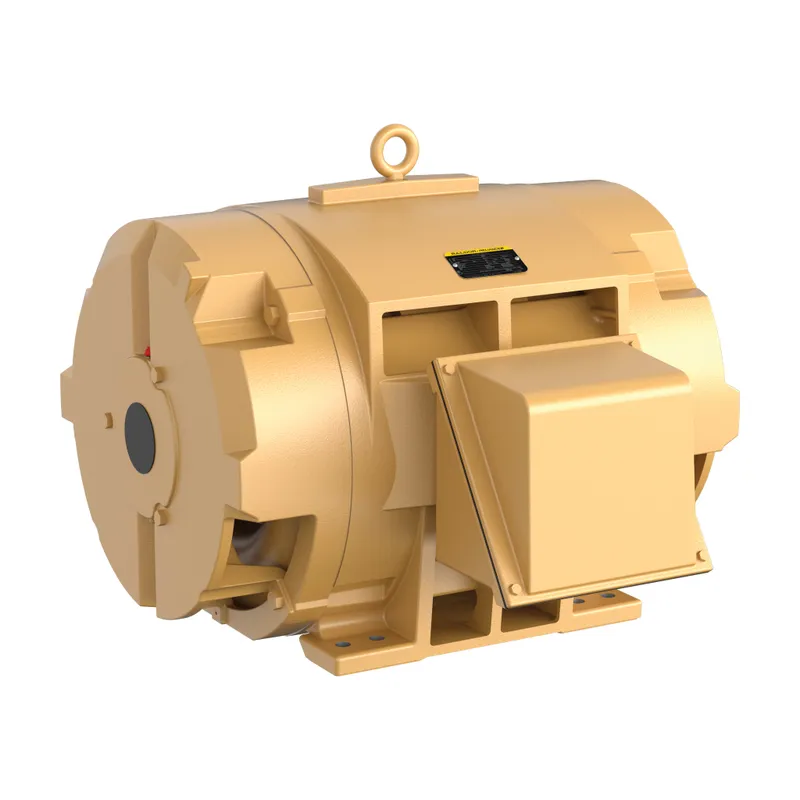

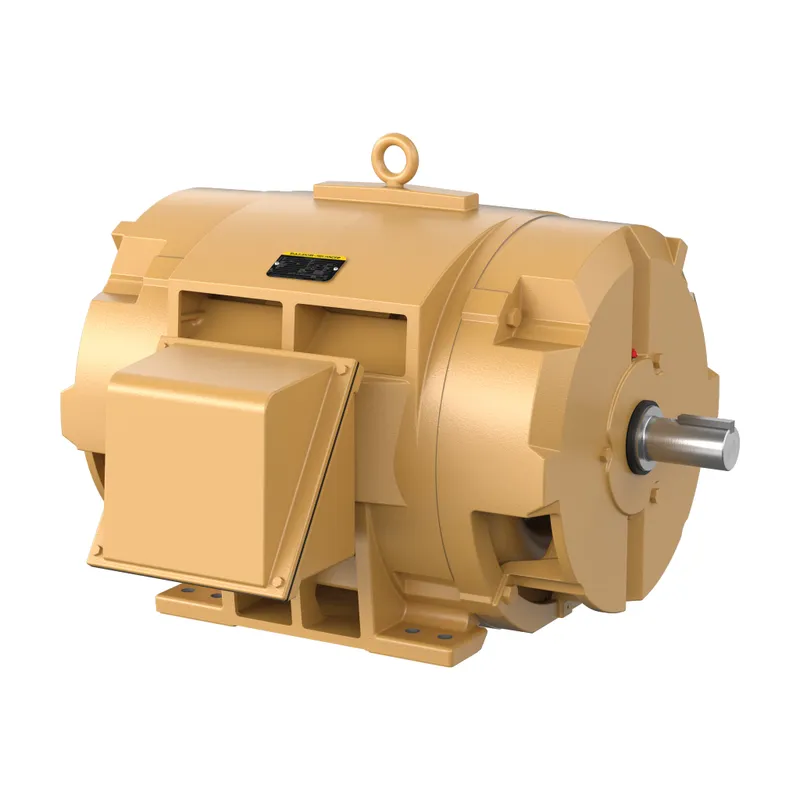

ABB EM2558TS-4

150HP,1785RPM,3PH,60HZ,444TS,A44062

MPN
EM2558TS-4
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB EM2558TS-4?

General Purpose Motor 150 Hp 460 V (EM2558TS-4)

Specifications

Ordering

Catalog NumberEM2558TS-4
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015381
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor86 %
Rated Efficiency96.20 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power150 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeODP
Frame MaterialCast Iron
Motor Frame Size444TS
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height30.5 in
Product Net Weight1508.001 lb
Product Net Width41.5 in
Dimension Diagram617428-041

Certificates and Declarations

Certification AgencyCCSA US, CCSAUSEEV, CSA EEV, CURUSEEV
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor

EM2558TS-4: frequently asked questions

When can EM2558TS-4 be shipped?

EM2558TS-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EM2558TS-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EM2558TS-4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EM2558TS-4, subject to availability and destination.
