What is the ABB EL3612T?

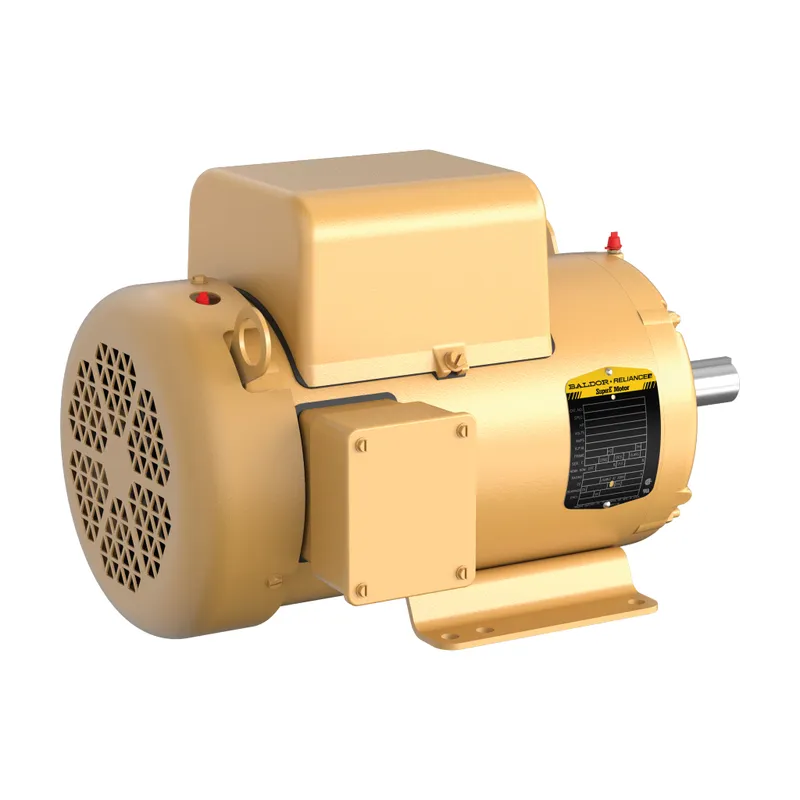

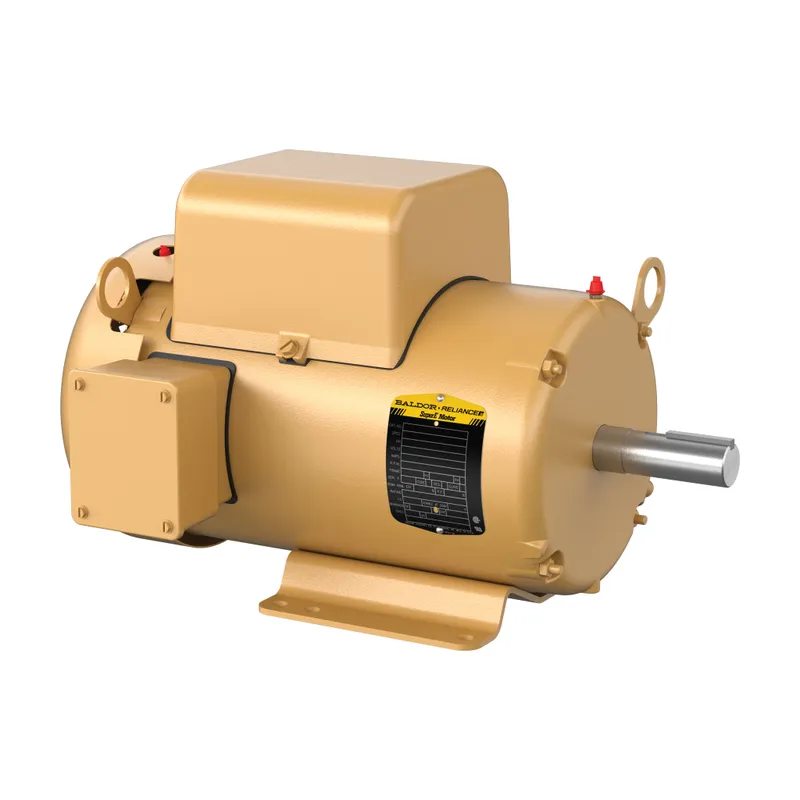

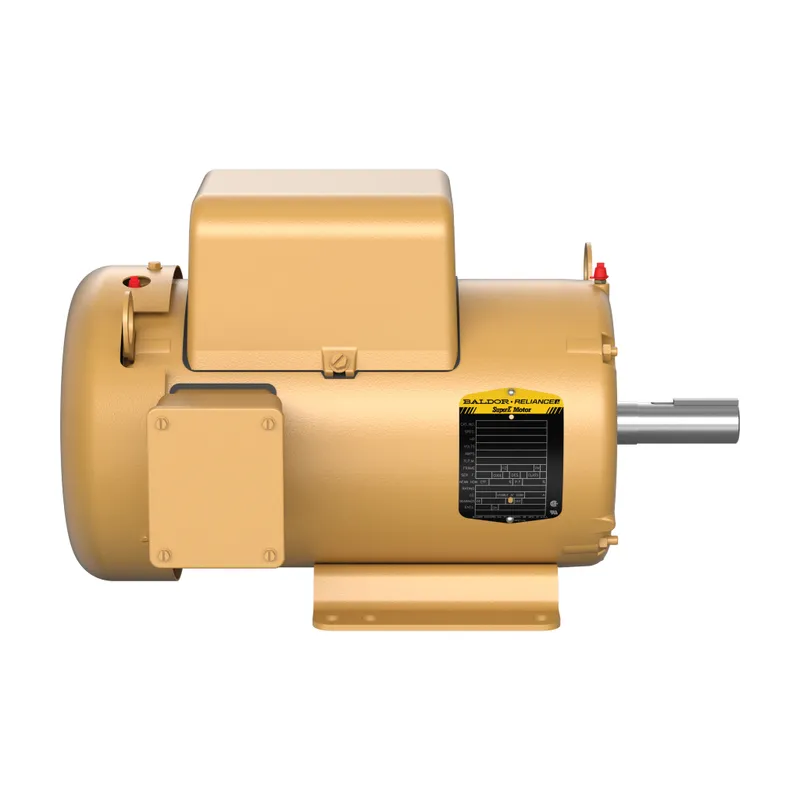

General Purpose Motor 5 Hp 230 V (EL3612T)

Specifications

Ordering

Catalog NumberEL3612T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelNot Regulated / Exempt
Insulation ClassF
NEMA Design CodeL
Number of Phases1-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor97 %
Rated Efficiency86.50 %
Service Factor1.00
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power5 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Frame MaterialSteel
Motor Frame Size184T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height15.125 in
Product Net Weight97 lb
Product Net Width16.125 in
Dimension Diagram36LYE004

Certificates and Declarations

Certification AgencyCSA EEV, CURUS, CURUSEEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)1329 >> Single phase motor AC
ETIM 7EC001851 - Electric motor
