ABB

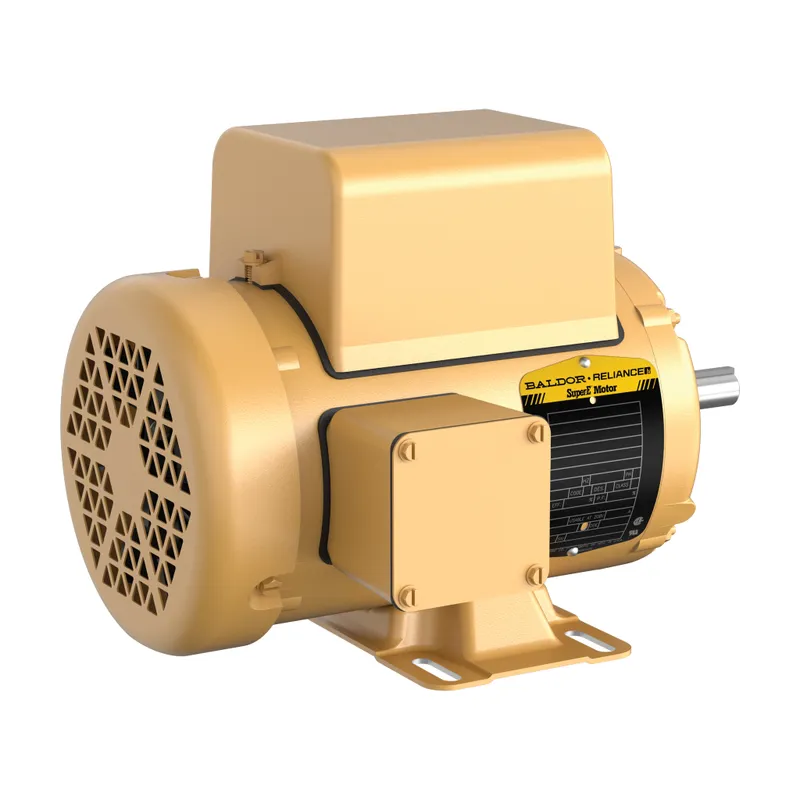

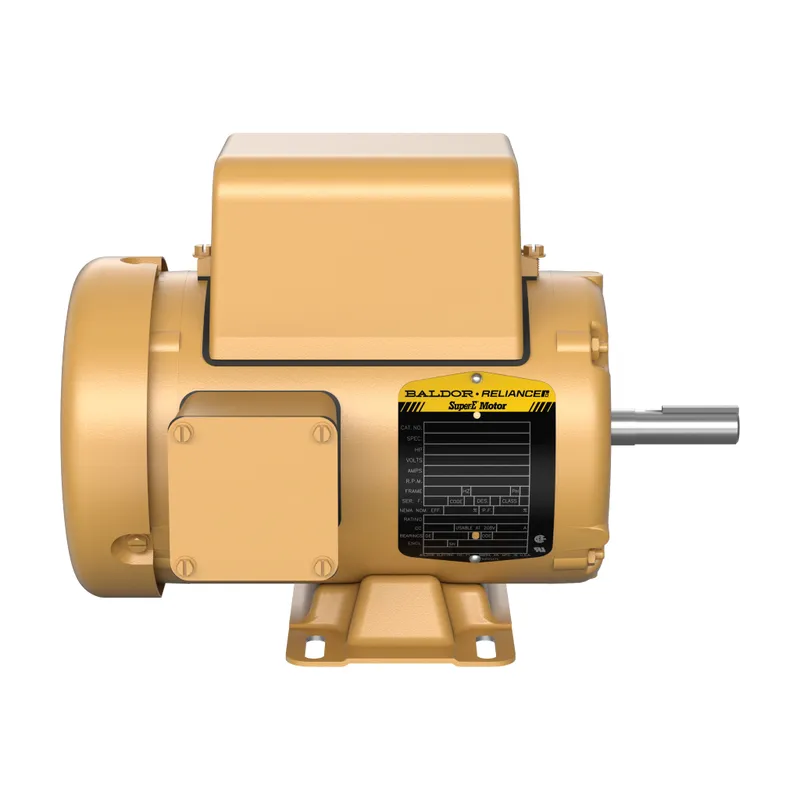

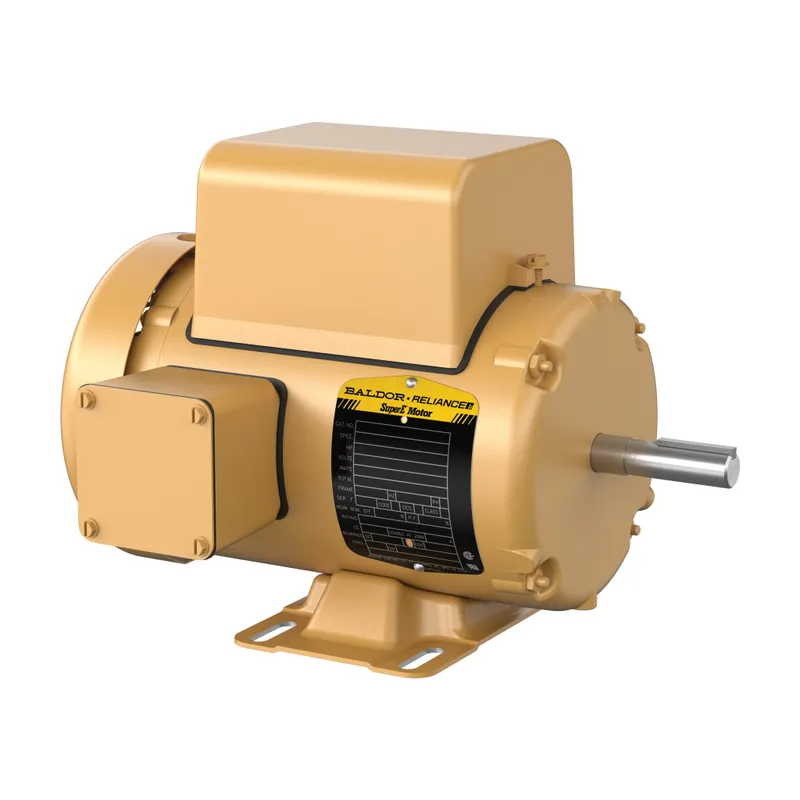

ABB EL3501

.33HP,1740RPM,1PH,60HZ,56,3418LC,TE

MPN: EL3501
Category: Single phase enclosed

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB EL3501?

General Purpose Motor 0.330.000 Hp 115 V (EL3501)

Specifications

Ordering

Catalog Number	EL3501
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	2015 Small Motor Standard, Not Regulated / Exempt
Insulation Class	F
Number of Phases	1-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	88 %
Rated Efficiency	77 %
Service Factor	1.35
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	0.330.000 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	56
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	11.125 in
Product Net Weight	27 lb
Product Net Width	11.5 in
Dimension Diagram	34LYG375

Certificates and Declarations

Certification Agency	CSA, CURUS, CURUSEEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)	1329 >> Single phase motor AC
ETIM 7	EC001851 - Electric motor
