Home / ABB / Single phase open / ABB EL1405T

ABB

ABB EL1405T

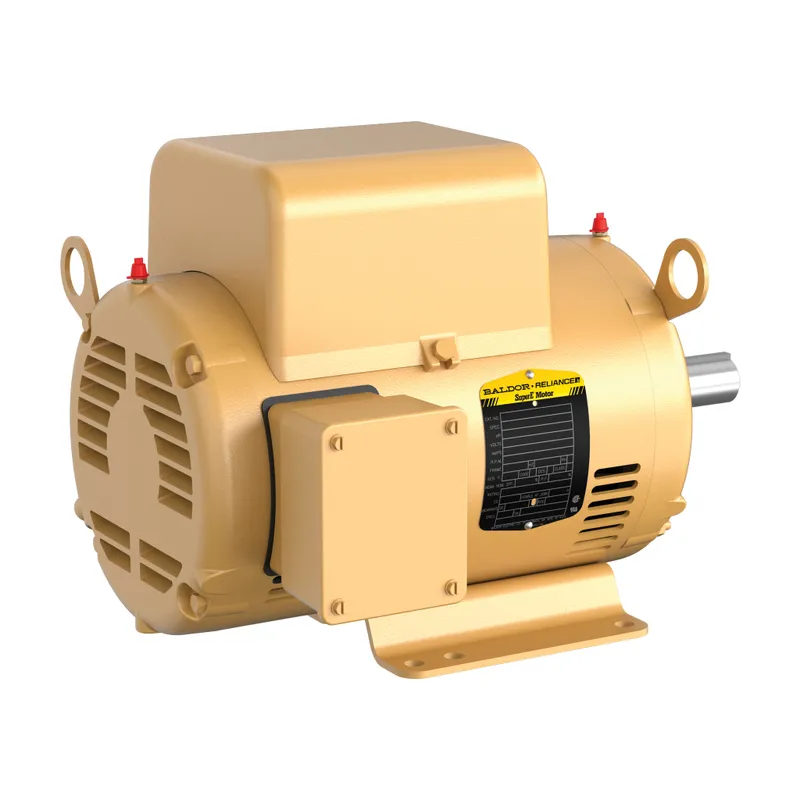

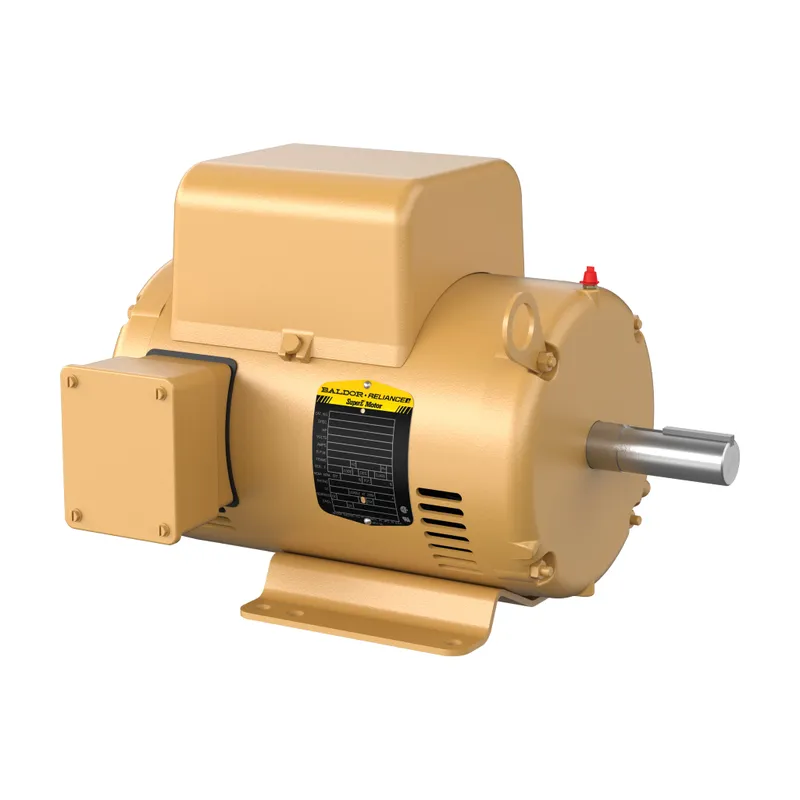

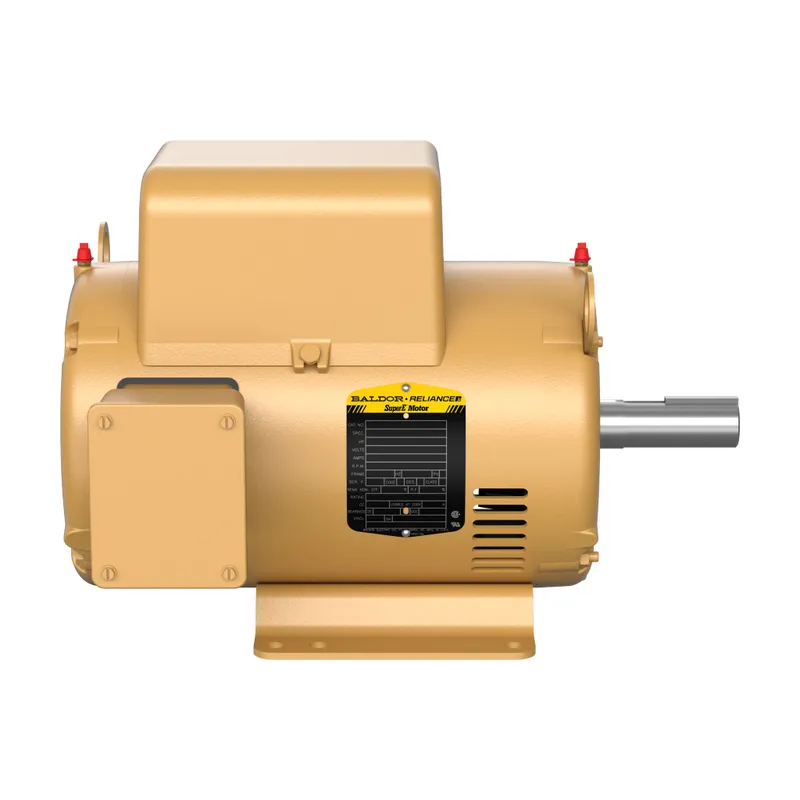

2HP,1740RPM,1PH,60HZ,182T,3623LC,OP

MPN: EL1405T
Category: Single phase open

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB EL1405T?

General Purpose Motor 2 Hp 115 V (EL1405T)

Specifications

Ordering

Catalog Number	EL1405T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	F
NEMA Design Code	L
Number of Phases	1-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	90 %
Rated Efficiency	82.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	2 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	ODP
Frame Material	Steel
Motor Frame Size	182T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	65 lb
Product Net Width	13.75 in
Dimension Diagram	36LYG967

Certificates and Declarations

Certification Agency	CSA EEV, CURUS, CURUSEEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)	1329 >> Single phase motor AC
ETIM 7	EC001851 - Electric motor
