ABB

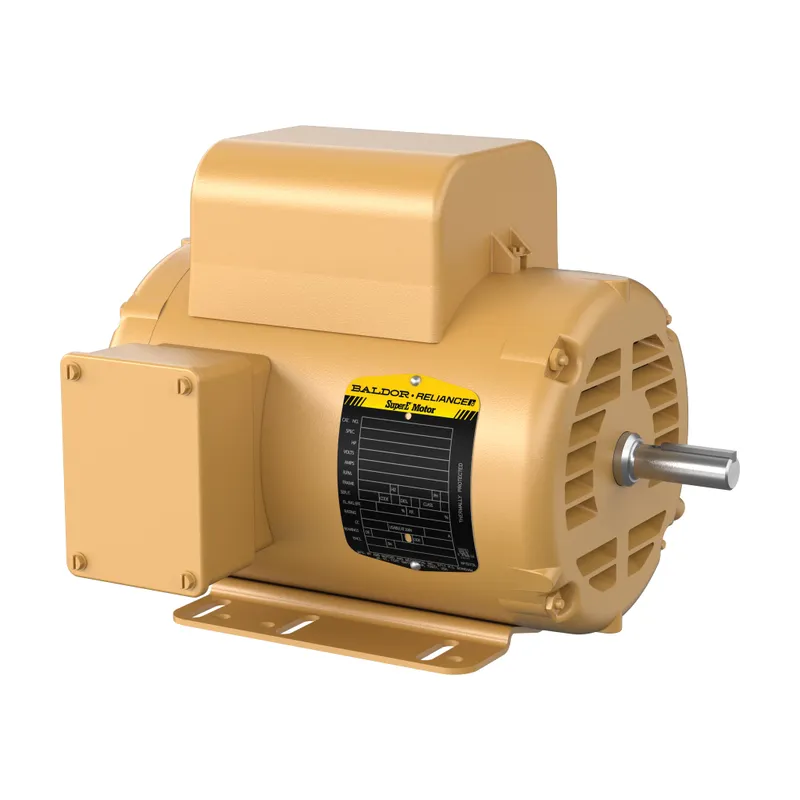

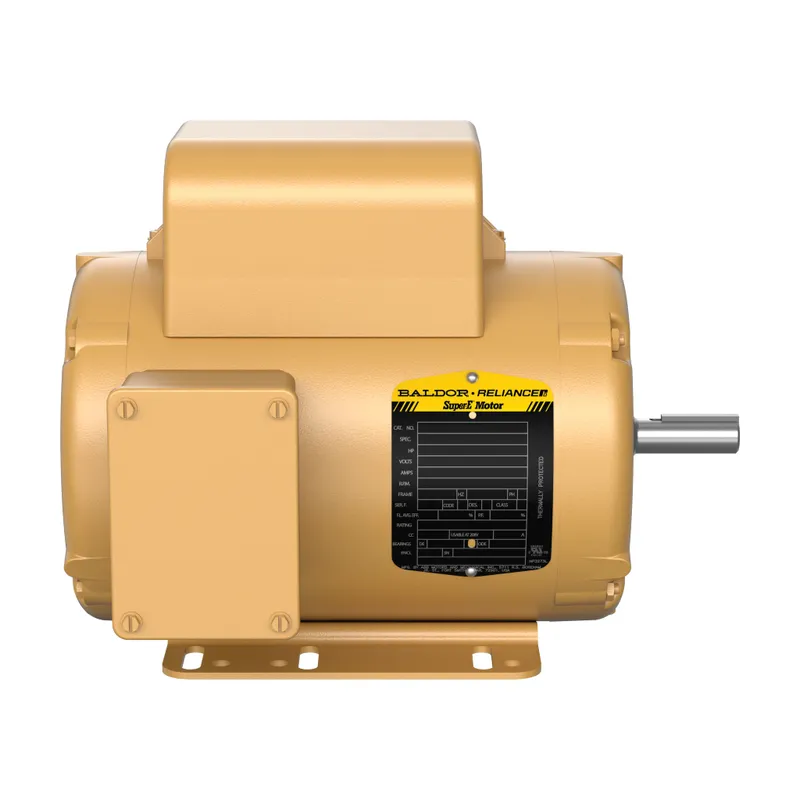

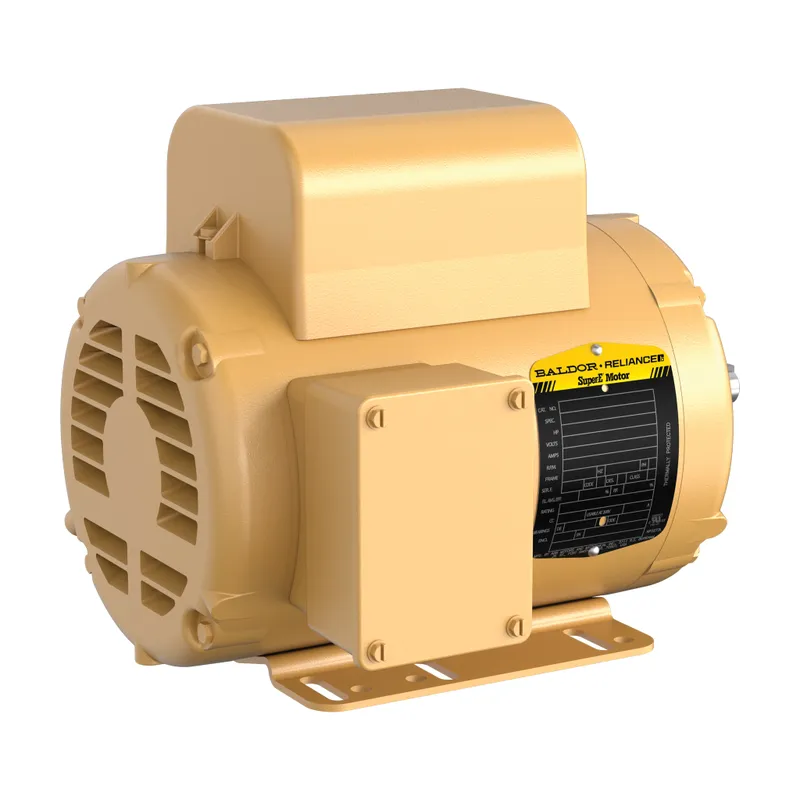

ABB EL11313A

1.5HP,3480RPM,1PH,60HZ,56H,3532LC,O

MPN: EL11313A
Category: Single phase open

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB EL11313A?

General Purpose Motor 1.5 Hp 115 V (EL11313A)

Specifications

Ordering

Catalog Number	EL11313A
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	2015 Small Motor Standard, Not Regulated / Exempt
Insulation Class	B
NEMA Design Code	L
Number of Phases	1-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	99 %
Rated Efficiency	82 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	1.5 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	OPEN
Frame Material	Steel
Motor Frame Size	56H
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	11.125 in
Product Net Weight	52 lb
Product Net Width	11.5 in
Dimension Diagram	35LYE2890

Certificates and Declarations

Certification Agency	CURUSEEV
IDEA Granular Category Code (IGCC)	1329 >> Single phase motor AC
ETIM 7	EC001851 - Electric motor
