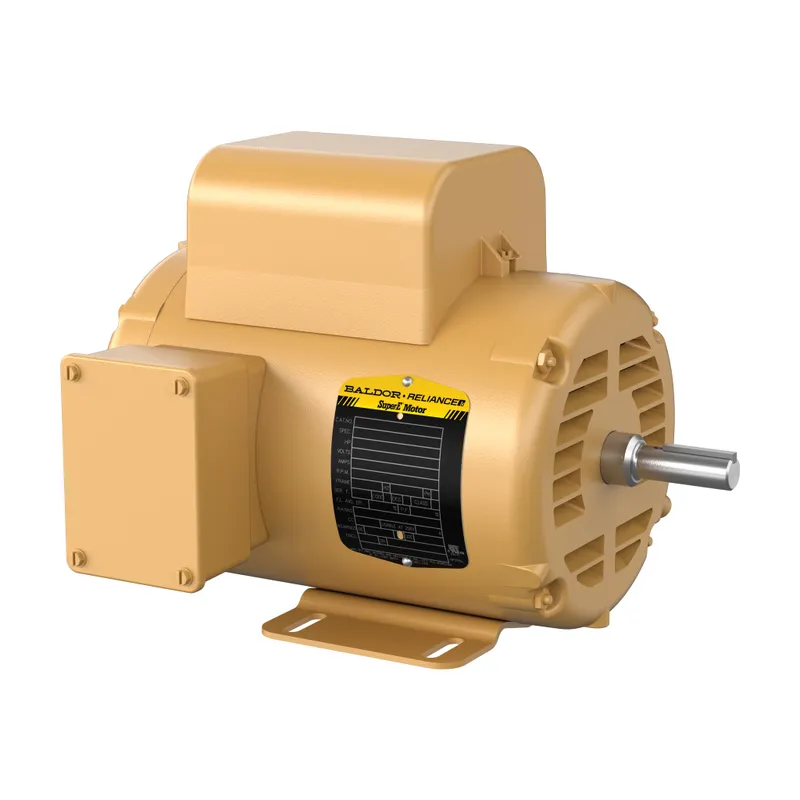

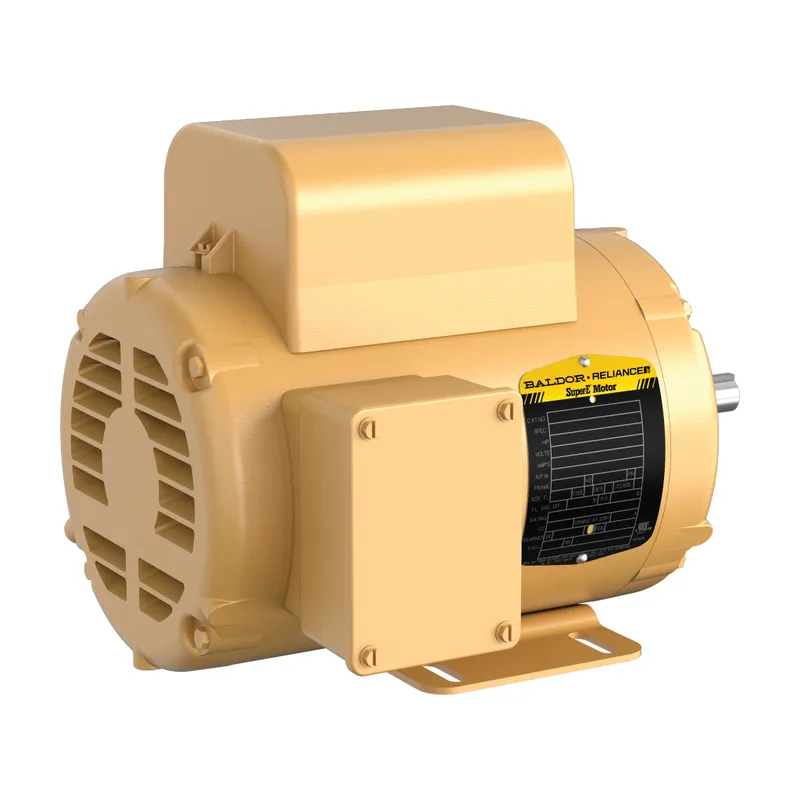

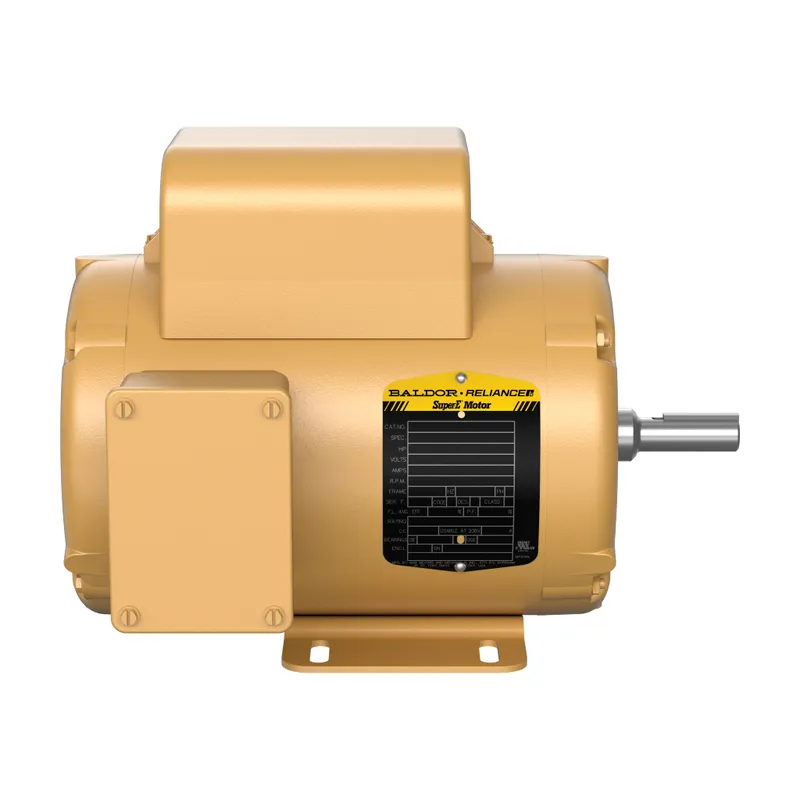

ABB EL11307M
.75HP,1760RPM,1PH,60HZ,56,3528LC,OP
- MPN
- EL11307M
- Category
- Single phase open
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the ABB EL11307M?
General Purpose Motor 0.750.000 Hp 115 V (EL11307M)
Specifications
Ordering
| Catalog Number | EL11307M |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85013100 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | 2015 Small Motor Standard |
| Insulation Class | F |
| NEMA Design Code | N |
| Number of Phases | 1-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 90 % |
| Rated Efficiency | 81.80 % |
| Service Factor | 1.25 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 0.750.000 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | OPEN |
| Frame Material | Steel |
| Motor Frame Size | 56 |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 11.125 in |
| Product Net Weight | 39 lb |
| Product Net Width | 11.5 in |
| Dimension Diagram | 35LYM497 |
Certificates and Declarations
| Certification Agency | CURUSEEV |
| IDEA Granular Category Code (IGCC) | 1329 >> Single phase motor AC |
| ETIM 7 | EC001851 - Electric motor |
EL11307M: frequently asked questions
When can EL11307M be shipped?
EL11307M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EL11307M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EL11307M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EL11307M, subject to availability and destination.
