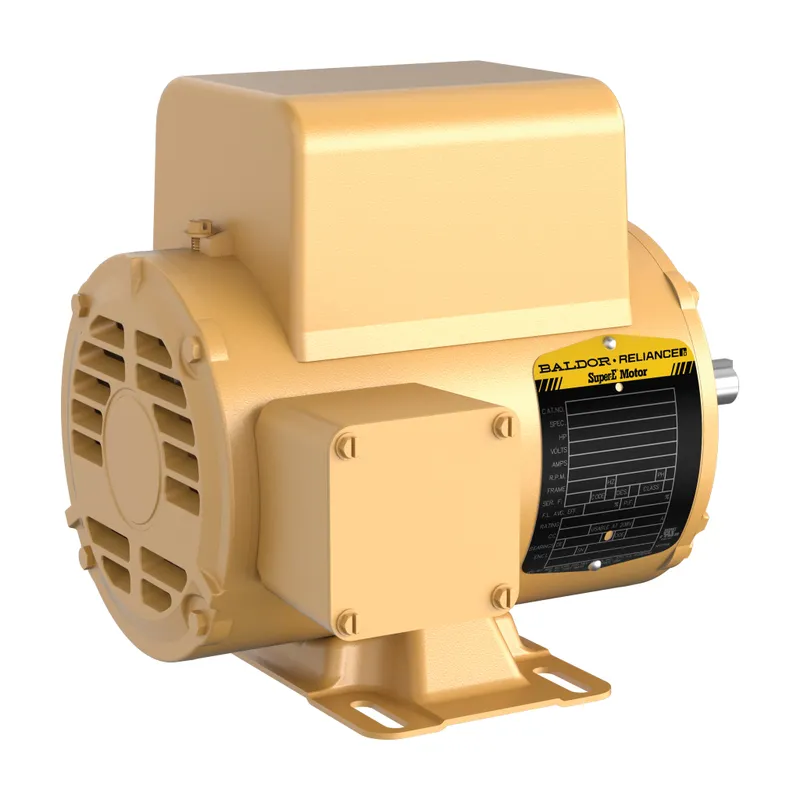

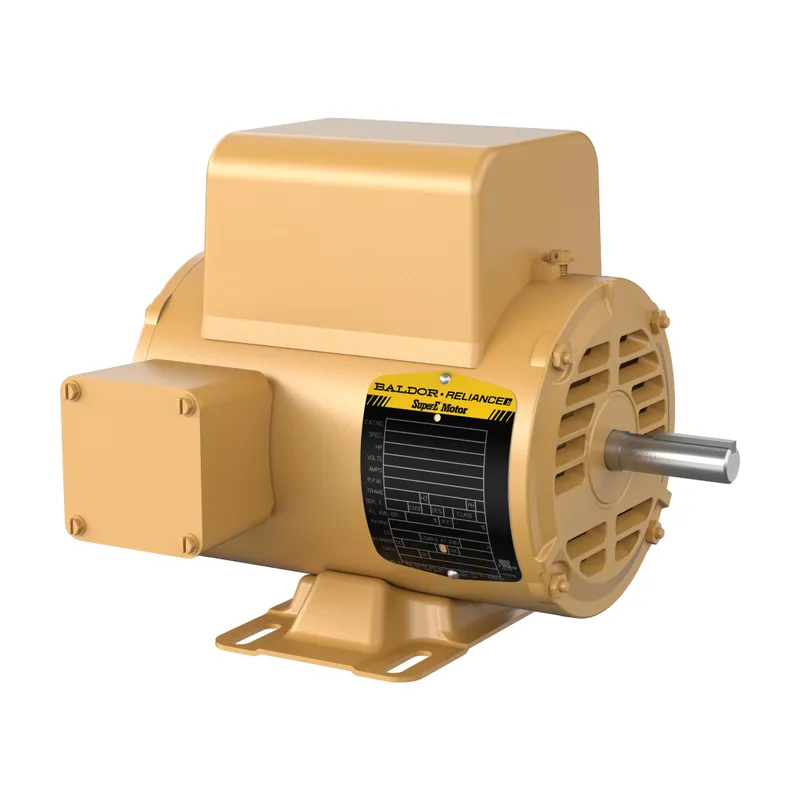

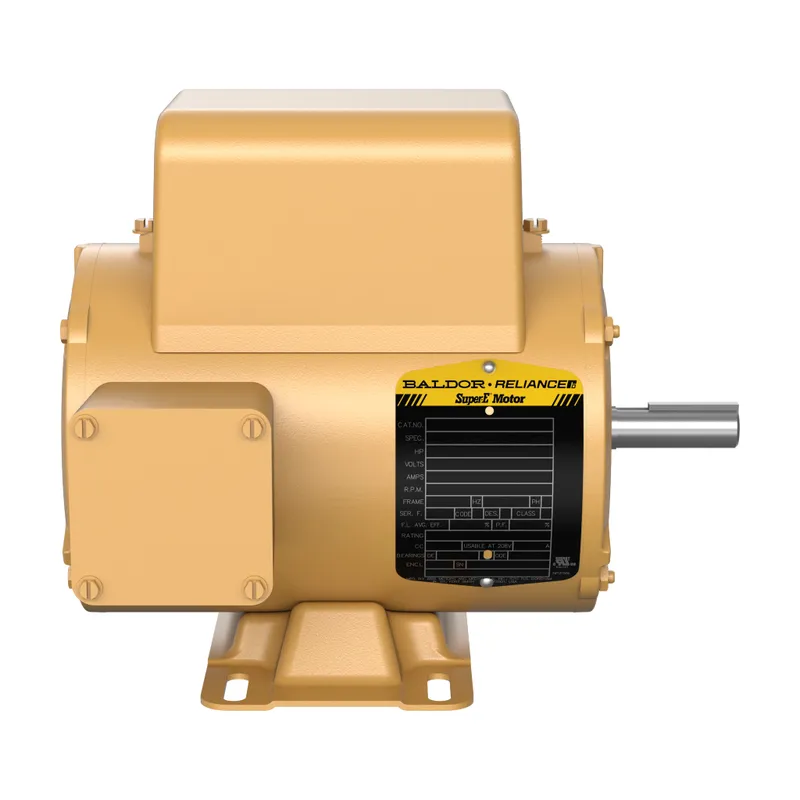

ABB EL11301M

.33HP,1740RPM,1PH,60HZ,56,3418LC,OP

MPN
EL11301M
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB EL11301M?

General Purpose Motor 0.330.000 Hp 115 V (EL11301M)

Specifications

Ordering

Catalog NumberEL11301M
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85013100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency Level2015 Small Motor Standard, Not Regulated / Exempt
Insulation ClassF
NEMA Design CodeN
Number of Phases1-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor85 %
Rated Efficiency72.40 %
Service Factor1.35
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power0.330.000 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeODP
Frame MaterialSteel
Motor Frame Size56
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height11.125 in
Product Net Weight27 lb
Product Net Width11.5 in
Dimension Diagram34LYF353

Certificates and Declarations

Certification AgencyCURUSEEV
IDEA Granular Category Code (IGCC)1329 >> Single phase motor AC
ETIM 7EC001851 - Electric motor

EL11301M: frequently asked questions

When can EL11301M be shipped?

EL11301M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EL11301M in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EL11301M and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EL11301M, subject to availability and destination.
