ABB

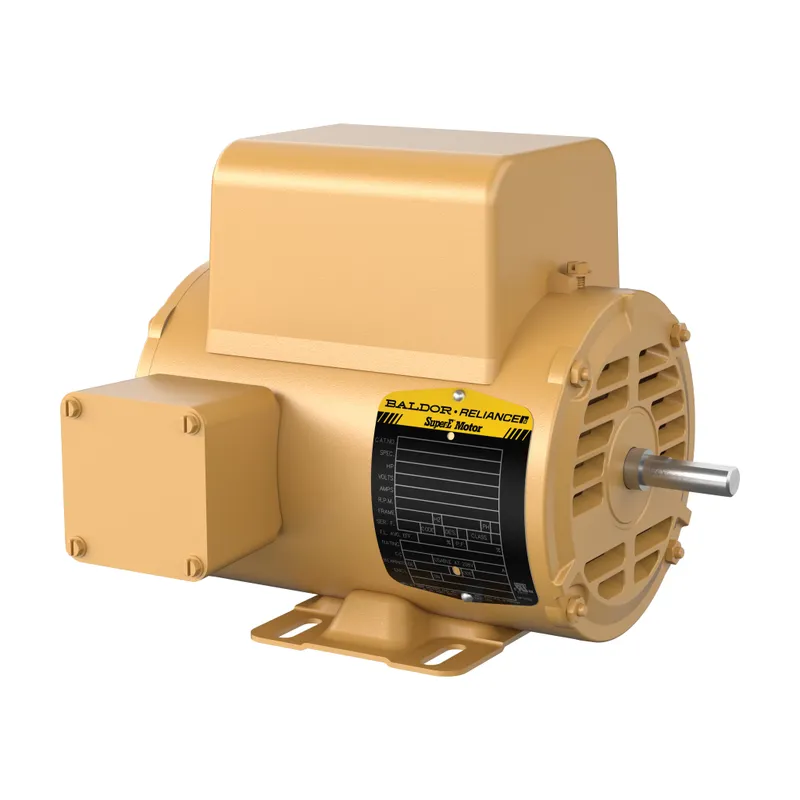

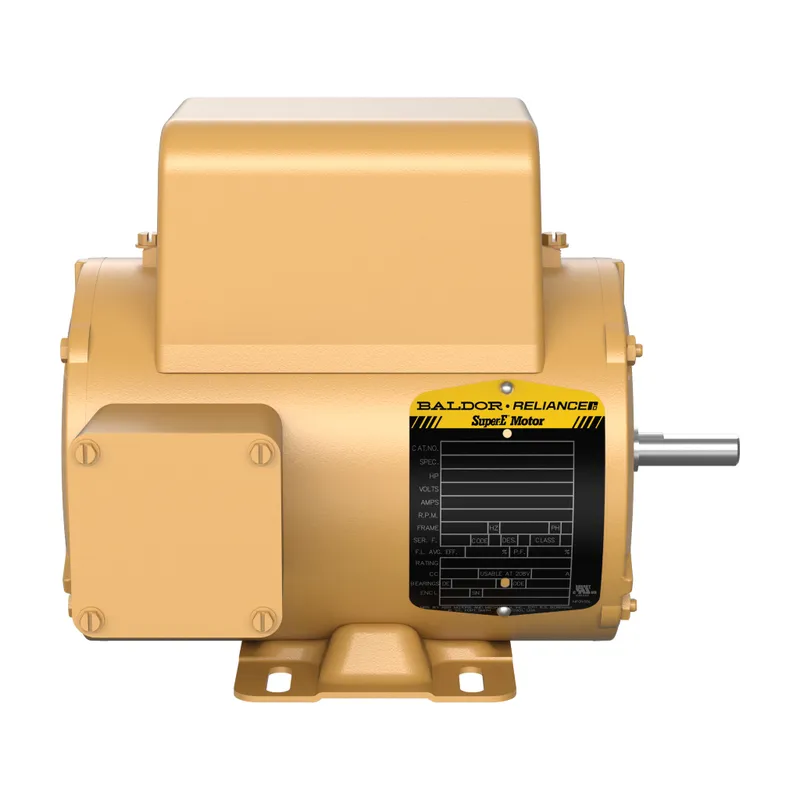

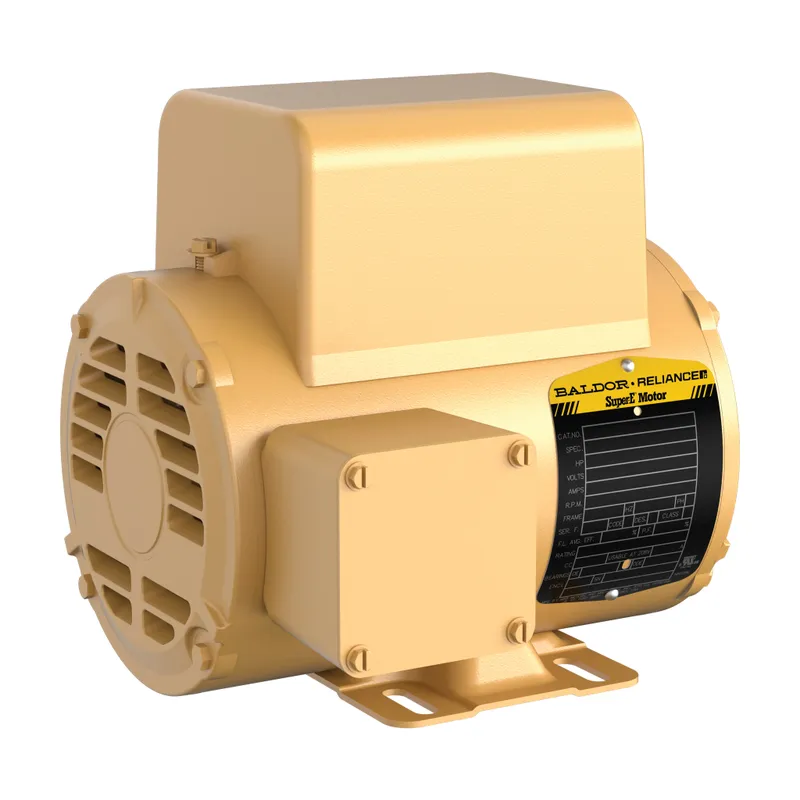

ABB EL11206M

.33HP,1740RPM,1PH,60HZ,48,3418LC,OP

MPN: EL11206M
Category: Single phase open

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB EL11206M?

General Purpose Motor 0.330.000 Hp 115 V (EL11206M)

Specifications

Ordering

Catalog Number	EL11206M
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	2015 Small Motor Standard, Not Regulated / Exempt
Insulation Class	F
NEMA Design Code	N
Number of Phases	1-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	85 %
Rated Efficiency	72.40 %
Service Factor	1.35
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	0.330.000 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	ODP
Frame Material	Steel
Motor Frame Size	48
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	11 in
Product Net Weight	27 lb
Product Net Width	16.5 in
Dimension Diagram	34LYF351

Certificates and Declarations

Certification Agency	CURUSEEV
IDEA Granular Category Code (IGCC)	1329 >> Single phase motor AC
ETIM 7	EC001851 - Electric motor
