Home / ABB / Closed Coupled pump / ABB EJPM3616T

ABB

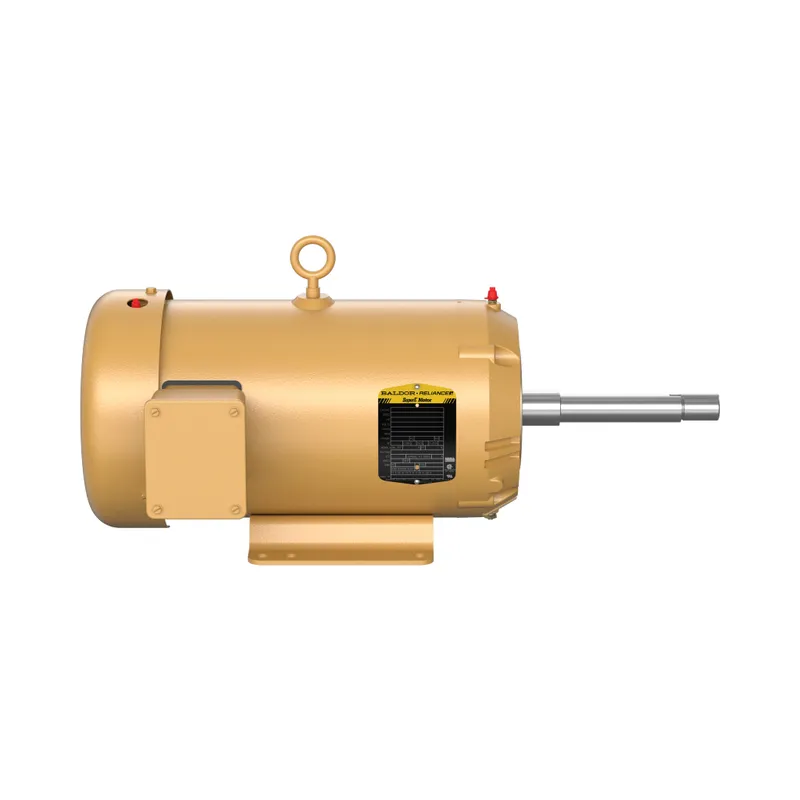

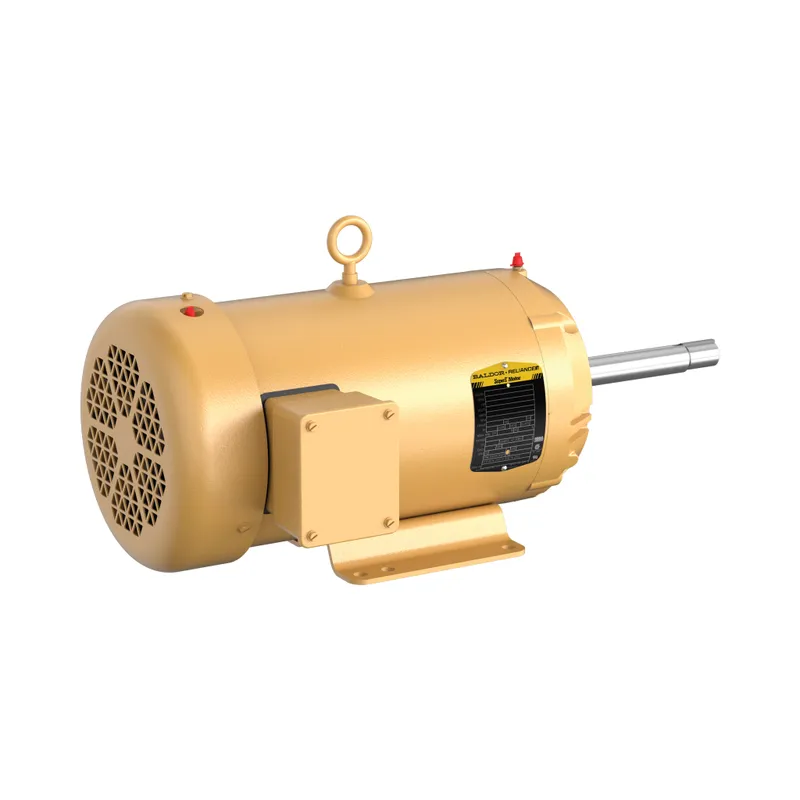

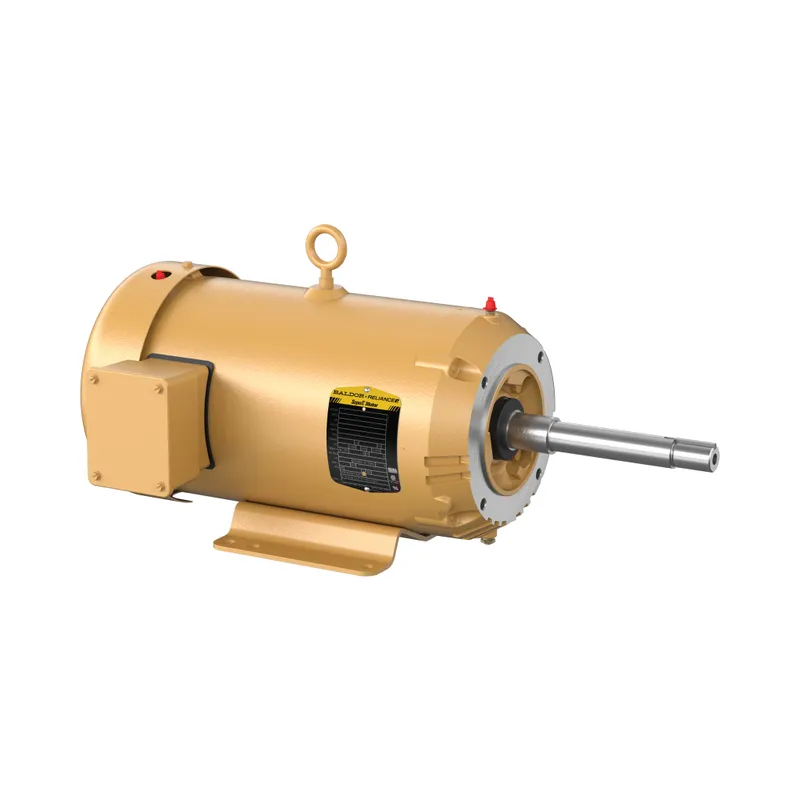

ABB EJPM3616T

7.5HP,3450RPM,3PH,60HZ,184JP,3646M

MPN: EJPM3616T
Category: Closed Coupled pump

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB EJPM3616T?

Pump Motor 7.5 Hp 230 V (EJPM3616T)

Specifications

Ordering

Catalog Number	EJPM3616T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	79 %
Rated Efficiency	89.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	7.5 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	184JP
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	16.25 in
Product Net Weight	96 lb
Product Net Width	16.625 in
Dimension Diagram	36LYR059

Certificates and Declarations

Certification Agency	CSA, CSA EEV, UR
IDEA Granular Category Code (IGCC)	1320 >> Pump motor AC
ETIM 7	EC001851 - Electric motor

EJPM3616T: frequently asked questions

When can EJPM3616T be shipped?

EJPM3616T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EJPM3616T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EJPM3616T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EJPM3616T, subject to availability and destination.
