ABB

ABB EJPM2547T

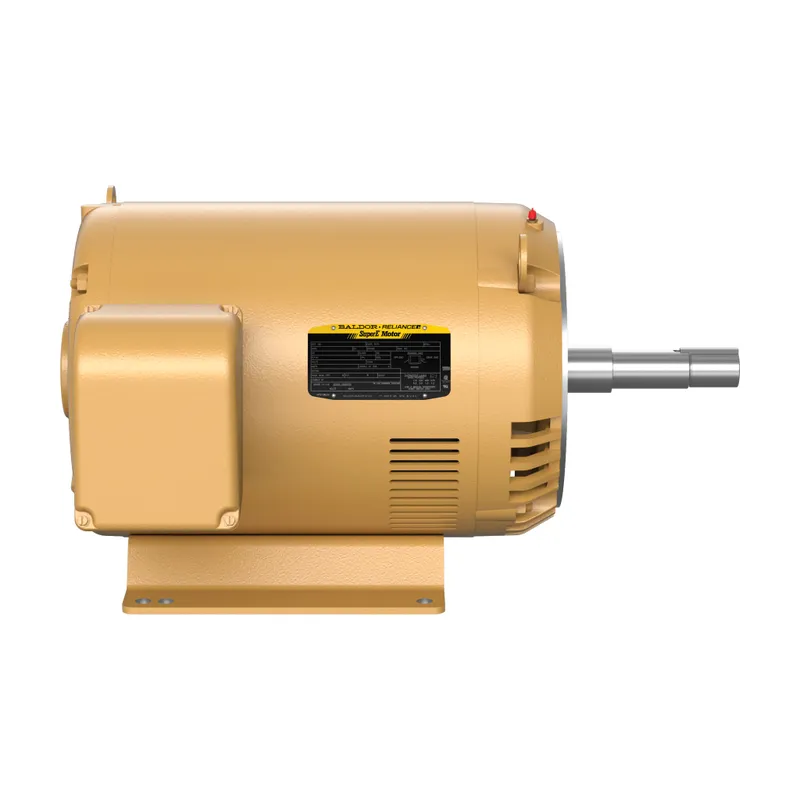

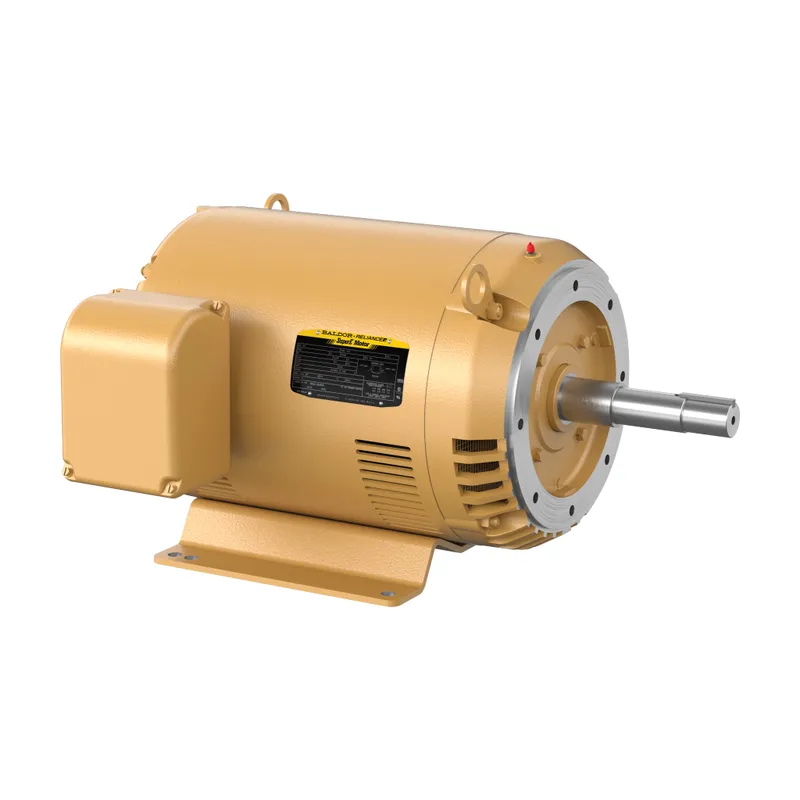

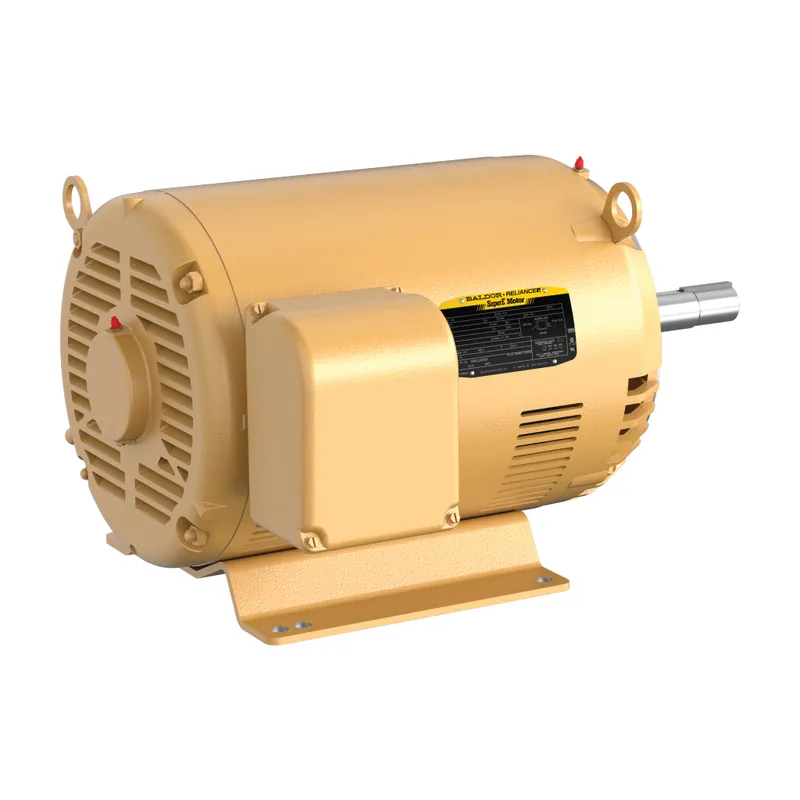

60HP,1775RPM,3PH,60HZ,364JP,4278M,O

MPN: EJPM2547T
Category: Closed Coupled pump

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB EJPM2547T?

Pump Motor 60 Hp 230 V (EJPM2547T)

Specifications

Ordering

Catalog Number	EJPM2547T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	87 %
Rated Efficiency	95 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	60 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	OPSB
Frame Material	Steel
Motor Frame Size	364JP
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	21.625 in
Product Net Weight	565 lb
Product Net Width	26 in
Dimension Diagram	42LYG038

Certificates and Declarations

Certification Agency	CSA, CSA EEV, UR
IDEA Granular Category Code (IGCC)	1320 >> Pump motor AC
ETIM 7	EC001851 - Electric motor
