Home / ABB / Closed Coupled pump / ABB EJPM2531T
ABB

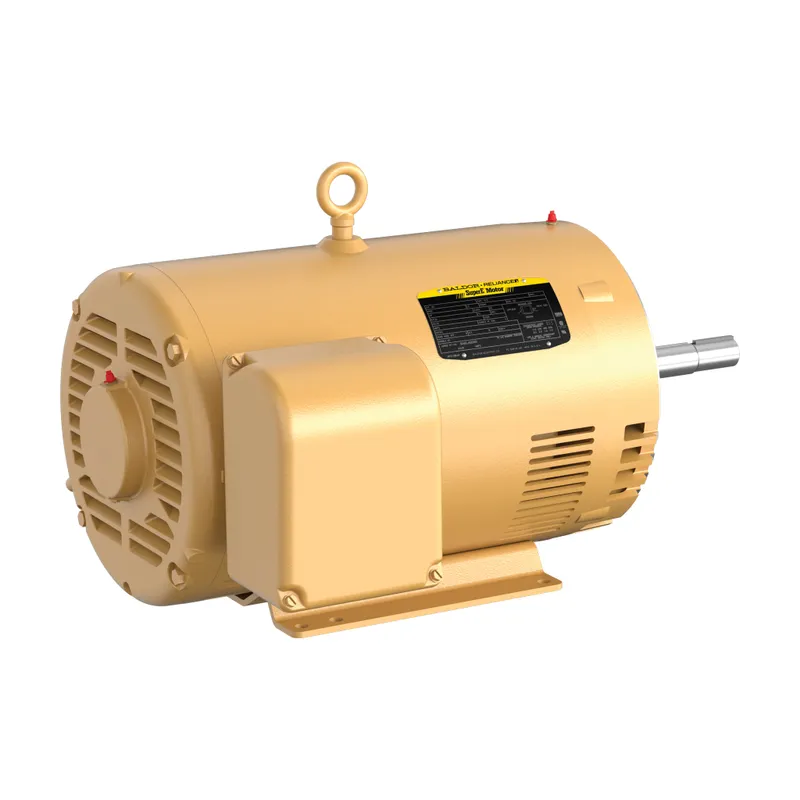

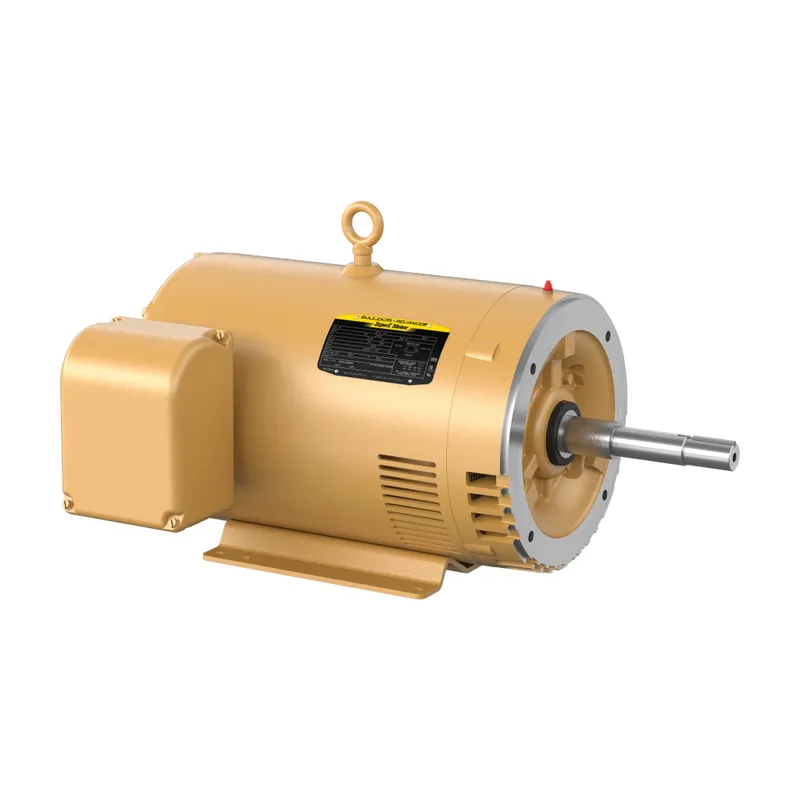

ABB EJPM2531T

25HP,1775RPM,3PH,60HZ,284JP,4050M,O

MPN
EJPM2531T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via

What is the ABB EJPM2531T?

Pump Motor 25 Hp 230 V (EJPM2531T)

Specifications

Ordering

Catalog NumberEJPM2531T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelIE3, Premium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor82 %
Rated Efficiency93.60 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power25 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeOPSB
Frame MaterialSteel
Motor Frame Size284JP
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height19.625 in
Product Net Weight335 lb
Product Net Width23.75 in
Dimension Diagram40LYE210

Certificates and Declarations

Certification AgencyCSA, CSA EEV, UR
IDEA Granular Category Code (IGCC)1320 >> Pump motor AC
ETIM 7EC001851 - Electric motor

EJPM2531T: frequently asked questions

When can EJPM2531T be shipped?

EJPM2531T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EJPM2531T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EJPM2531T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EJPM2531T, subject to availability and destination.
