Home / ABB / Closed Coupled pump / ABB EJMM3546T
ABB

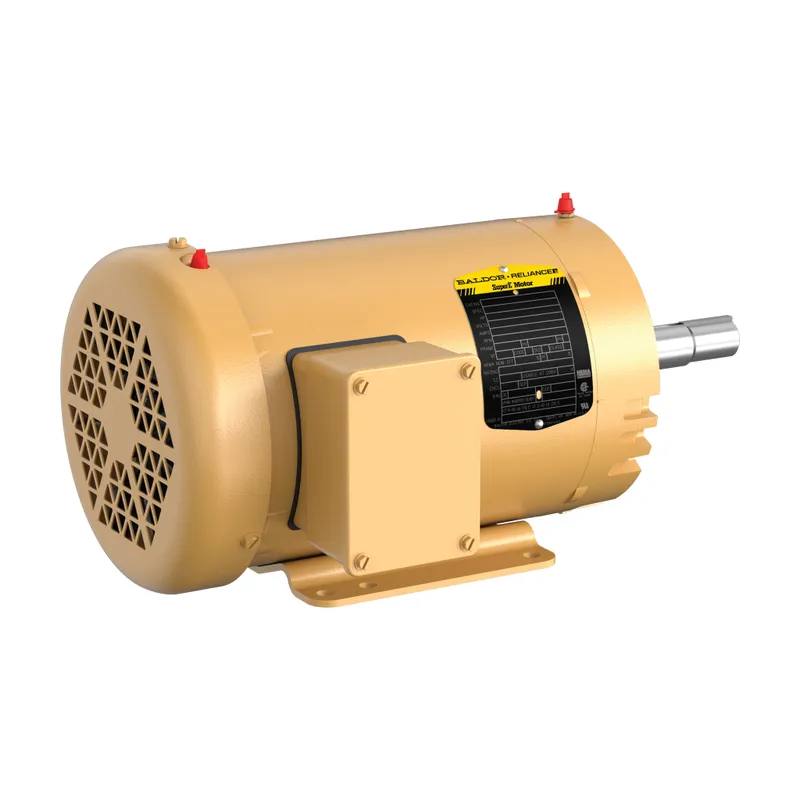

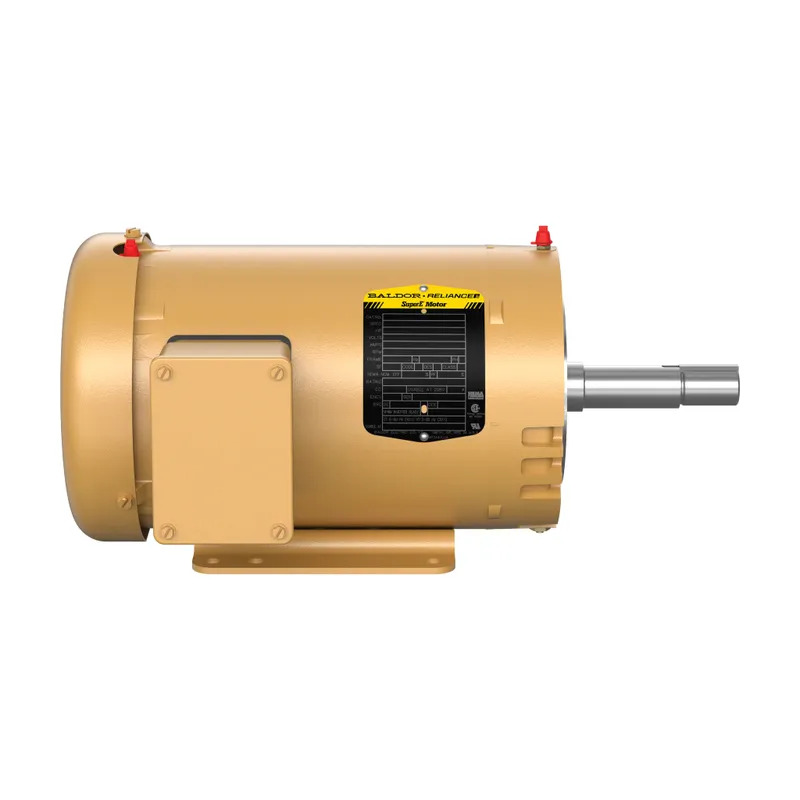

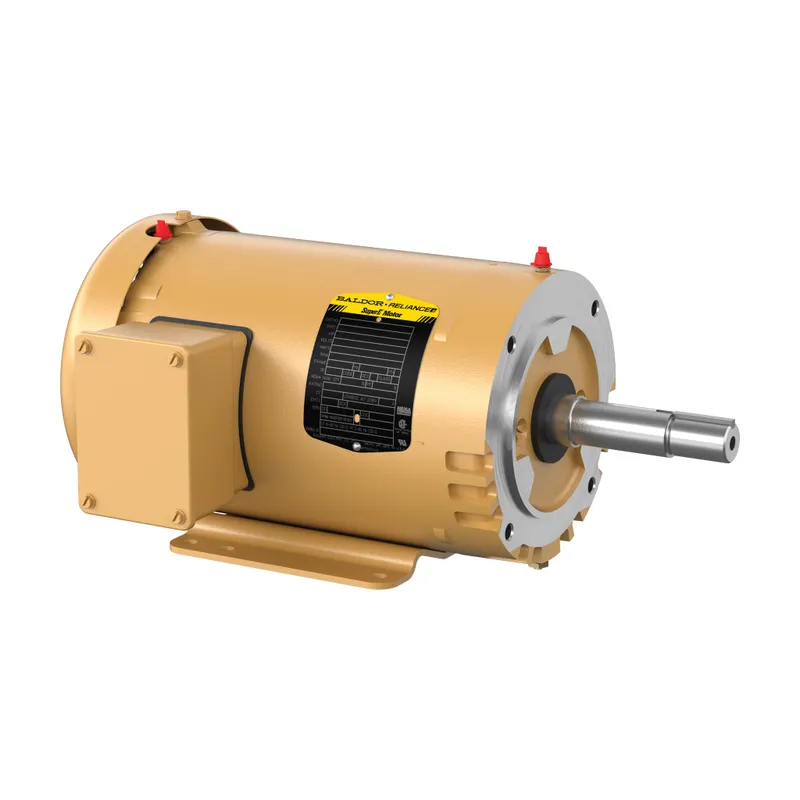

ABB EJMM3546T

1HP,1770RPM,3PH,60HZ,143JM,3520M,TE

MPN
EJMM3546T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via

What is the ABB EJMM3546T?

Pump Motor 1 Hp 230 V (EJMM3546T)

Specifications

Ordering

Catalog NumberEJMM3546T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency Level2015 Small Motor Standard, IE3, Premium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor69 %
Rated Efficiency85.50 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power1 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTEFC
Frame MaterialSteel
Motor Frame Size143JM
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height15.125 in
Product Net Weight40 lb
Product Net Width16.125 in
Dimension Diagram35LYM019

Certificates and Declarations

Certification AgencyCSA, CSA EEV, UR
IDEA Granular Category Code (IGCC)1320 >> Pump motor AC
ETIM 7EC001851 - Electric motor

EJMM3546T: frequently asked questions

When can EJMM3546T be shipped?

EJMM3546T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EJMM3546T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EJMM3546T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EJMM3546T, subject to availability and destination.
