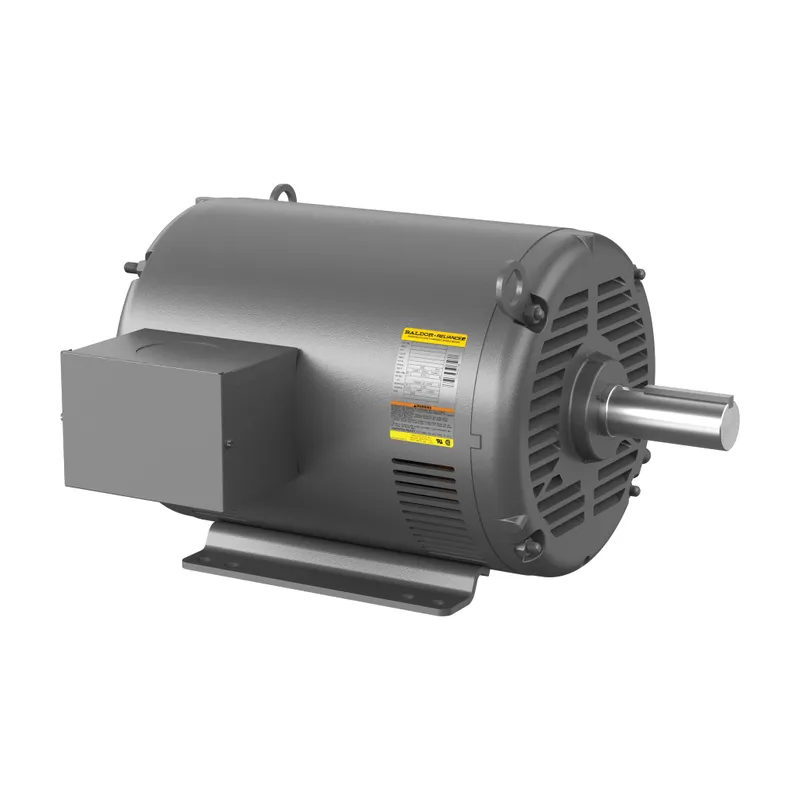

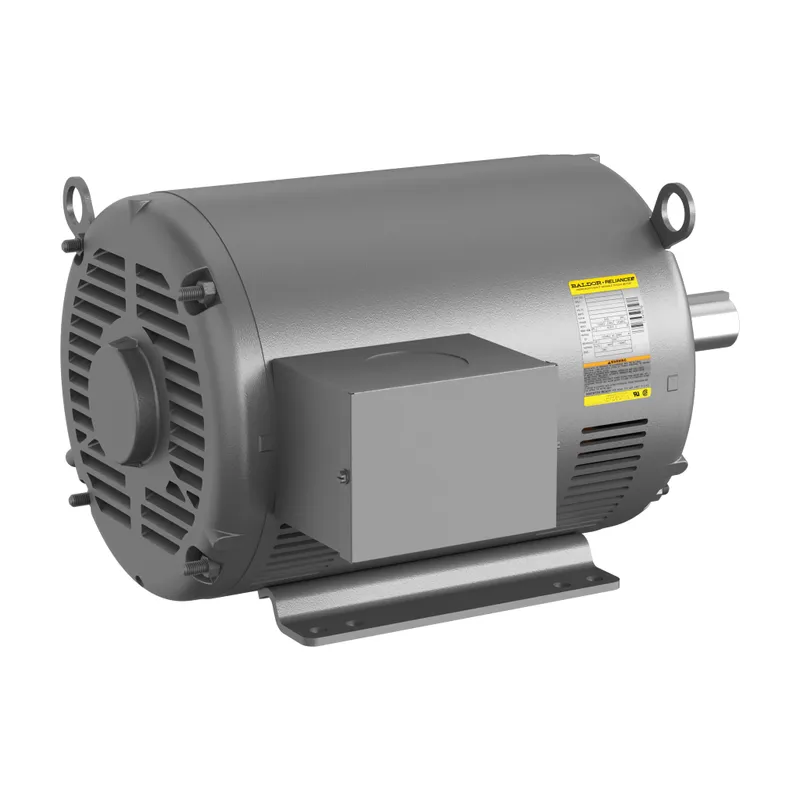

ABB EHM2543T

50HP,1775RPM,3PH,60HZ,324T,4256M,OP

MPN: EHM2543T
Category: HVAC General Purpose

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB EHM2543T?

General Purpose HVAC 50 Hp 230 V (EHM2543T)

Specifications

Ordering

Catalog Number	EHM2543T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	87 %
Rated Efficiency	94.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	50 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	OPSB
Frame Material	Steel
Motor Frame Size	326T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	19.625 in
Product Net Weight	469 lb
Product Net Width	23.75 in
Dimension Diagram	42LYH068

Certificates and Declarations

Certification Agency	CSA, UR
IDEA Granular Category Code (IGCC)	1318 >> Heating and cooling system motor AC
ETIM 7	EC001851 - Electric motor
