Home / ABB / HVAC General Purpose / ABB EHM2528T
ABB

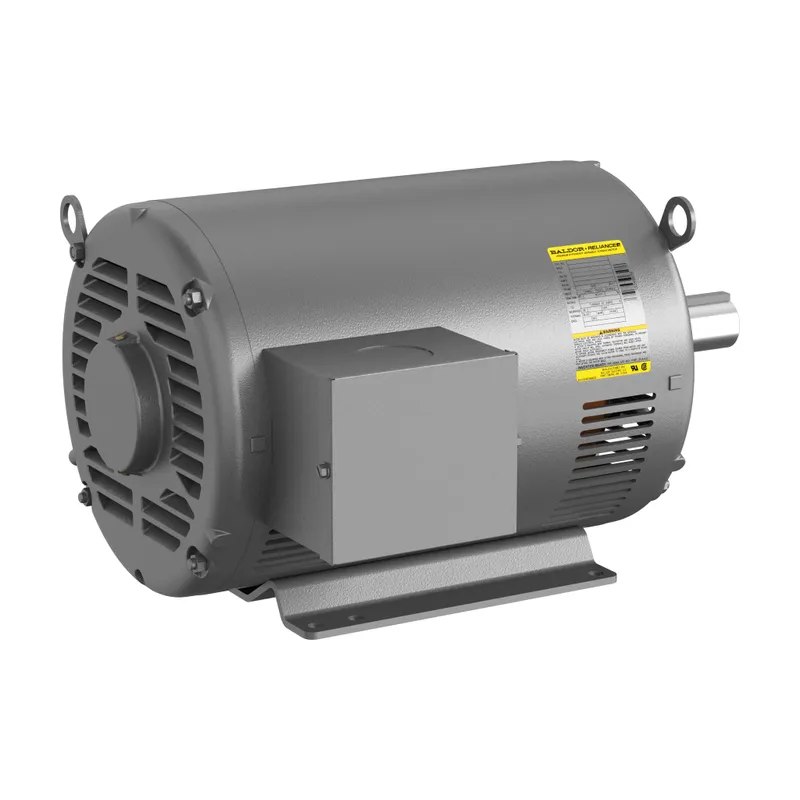

ABB EHM2528T

20HP,1180RPM,3PH,60HZ,286T,4056M,OP

MPN
EHM2528T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB EHM2528T?

HVAC Motors 20 Hp 230 V (EHM2528T)

Specifications

Ordering

Catalog NumberEHM2528T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency LevelIE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor74 %
Rated Efficiency92.40 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power20 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeOPSB
Frame MaterialSteel
Motor Frame Size286T
Motor Base TypeRigid
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height21.5 in
Product Net Weight297 lb
Product Net Width24 in
Dimension Diagram40LYJ098

Certificates and Declarations

Certification AgencyCSA, UR
IDEA Granular Category Code (IGCC)1318 >> Heating and cooling system motor AC
ETIM 7EC001851 - Electric motor

EHM2528T: frequently asked questions

When can EHM2528T be shipped?

EHM2528T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EHM2528T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EHM2528T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EHM2528T, subject to availability and destination.
