Home / ABB / HVAC General Purpose / ABB EHFM3218T

ABB

ABB EHFM3218T

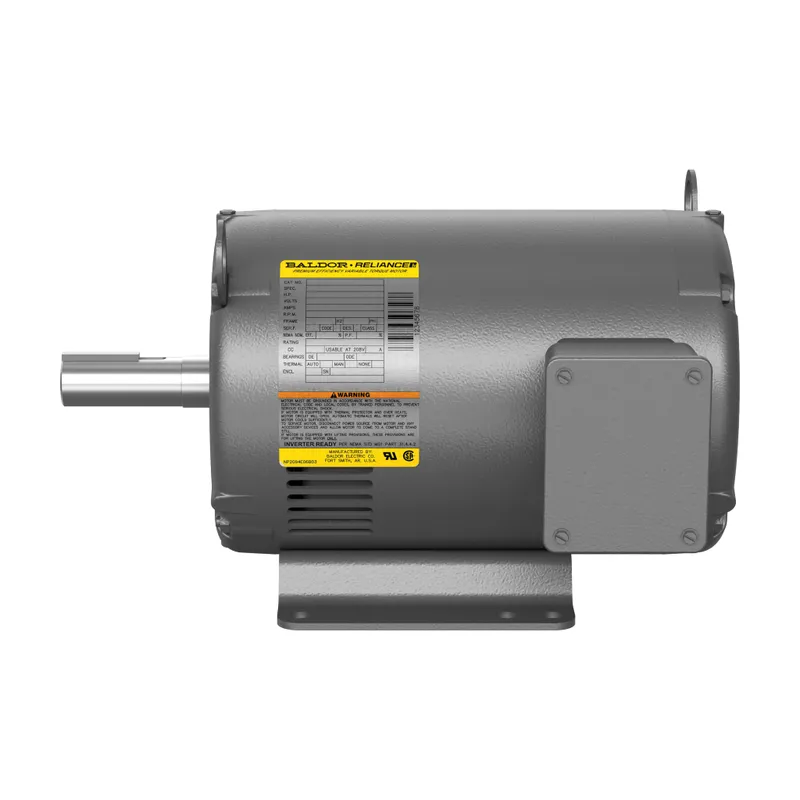

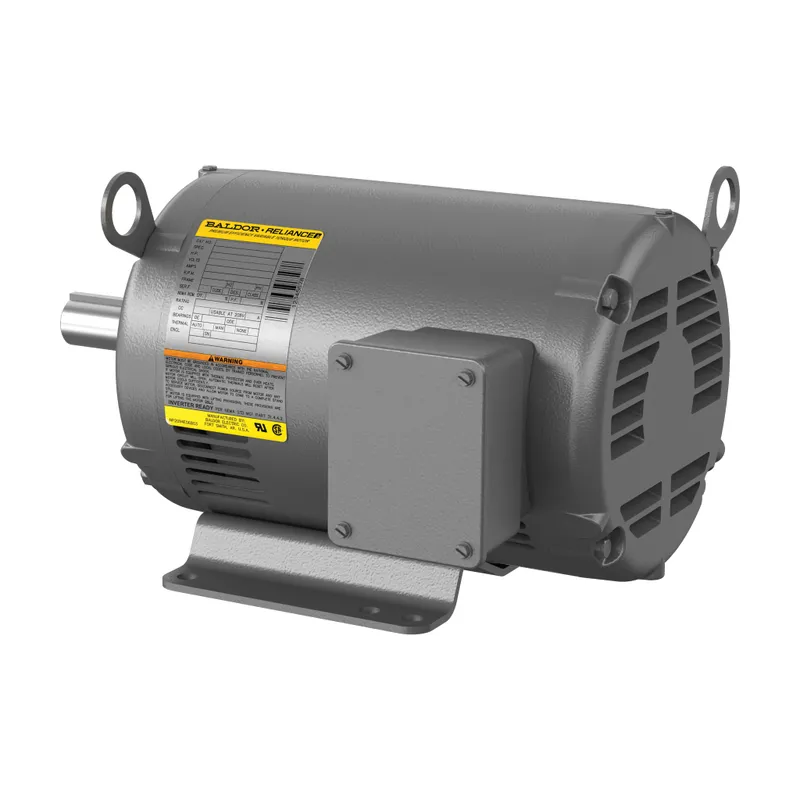

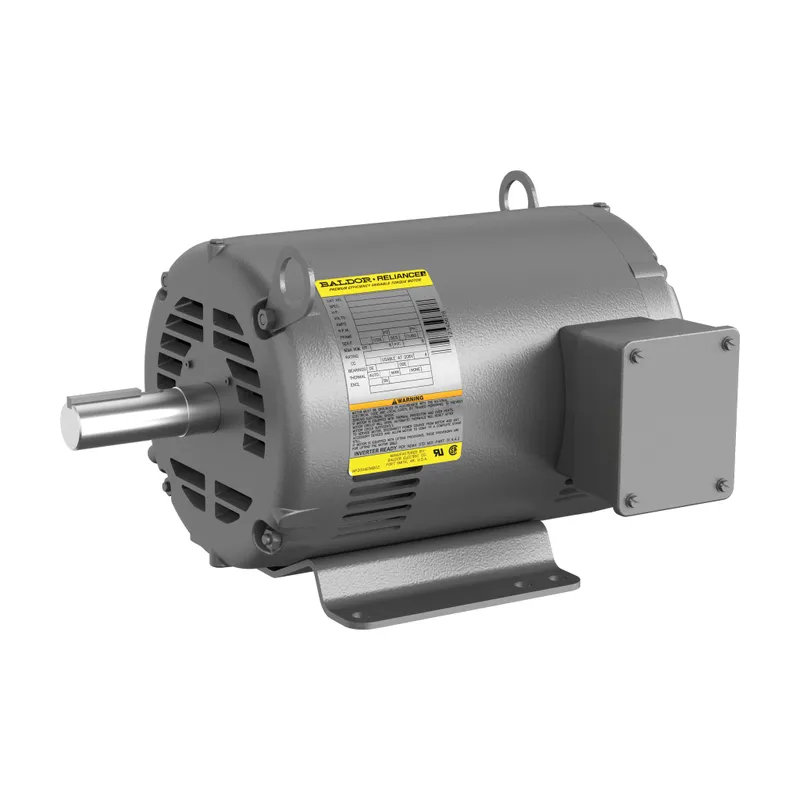

5HP,1750RPM,3PH,60HZ,184T,3640M,OPS

MPN: EHFM3218T
Category: HVAC General Purpose

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB EHFM3218T?

General Purpose HVAC 5 Hp 230 V (EHFM3218T)

Specifications

Ordering

Catalog Number	EHFM3218T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	80 %
Rated Efficiency	89.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	5 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	OPSB
Frame Material	Steel
Motor Frame Size	184T
Motor Base Type	Foot Mounted
Mounting Position	F2
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	82 lb
Product Net Width	13.75 in
Dimension Diagram	36LYL731

Certificates and Declarations

Certification Agency	CSA, UR
IDEA Granular Category Code (IGCC)	1318 >> Heating and cooling system motor AC
ETIM 7	EC001851 - Electric motor
