ABB

ABB EHFM2523T

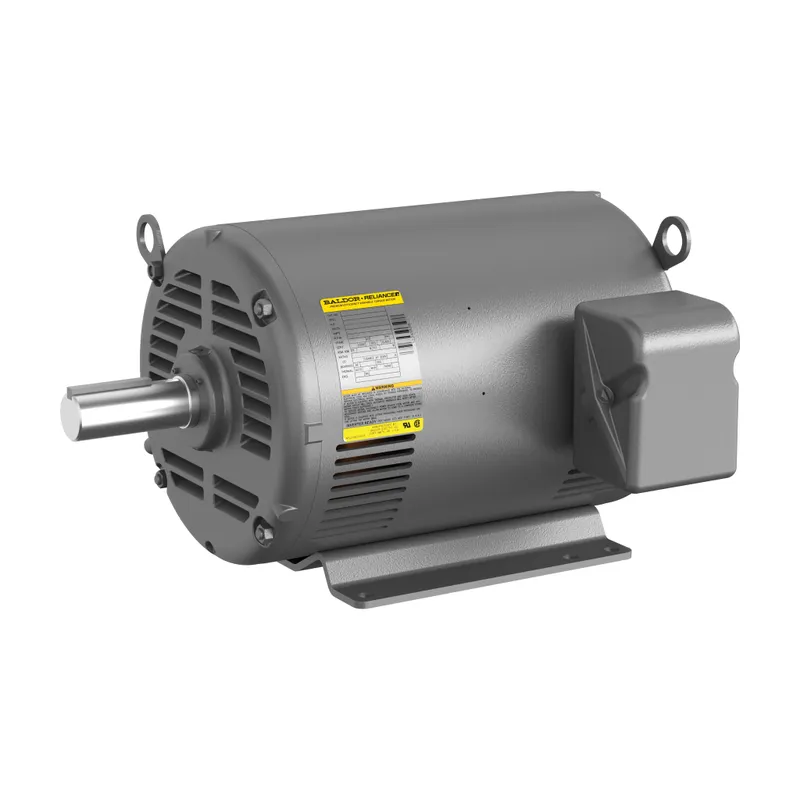

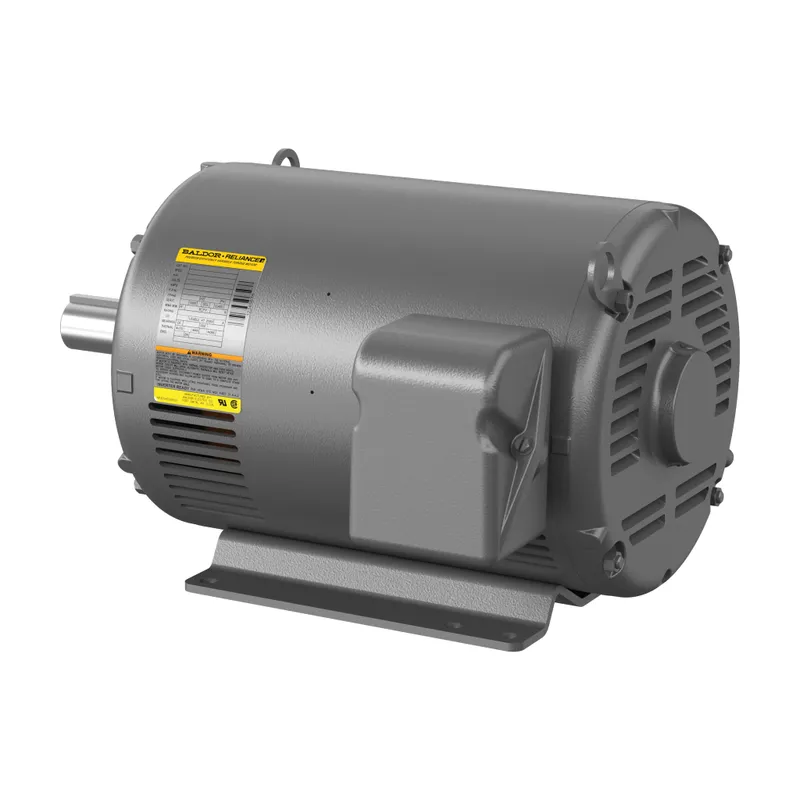

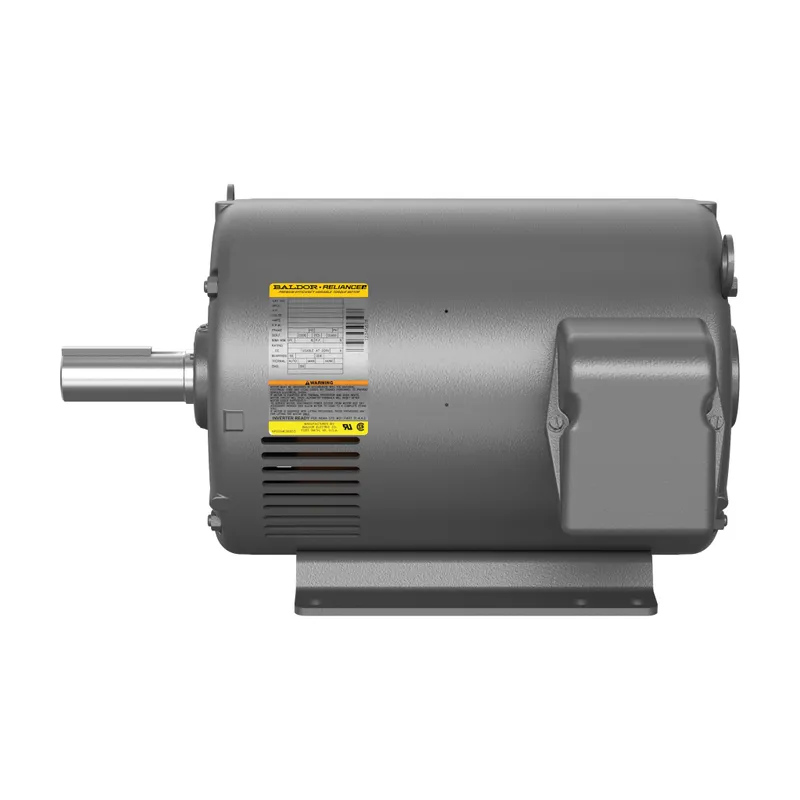

15HP,1765RPM,3PH,60HZ,254T,3948M,OP

MPN: EHFM2523T
Category: HVAC General Purpose

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB EHFM2523T?

General Purpose HVAC 15 Hp 230 V (EHFM2523T)

Specifications

Ordering

Catalog Number	EHFM2523T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	83 %
Rated Efficiency	93 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	15 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	ODP
Frame Material	Steel
Motor Frame Size	254T
Motor Base Type	Foot Mounted
Mounting Position	F2
Brake Present	No

Dimensions

Product Net Height	17.438 in
Product Net Weight	212 lb
Product Net Width	20.5 in
Dimension Diagram	39LYE172

Certificates and Declarations

Certification Agency	CSA, UR
IDEA Granular Category Code (IGCC)	1318 >> Heating and cooling system motor AC
ETIM 7	EC001851 - Electric motor
