ABB

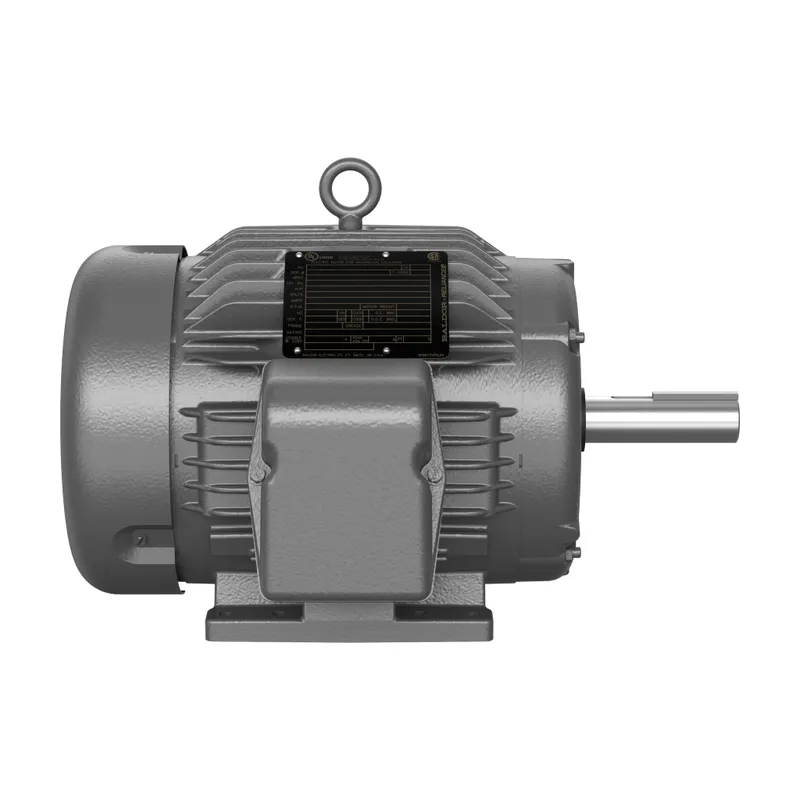

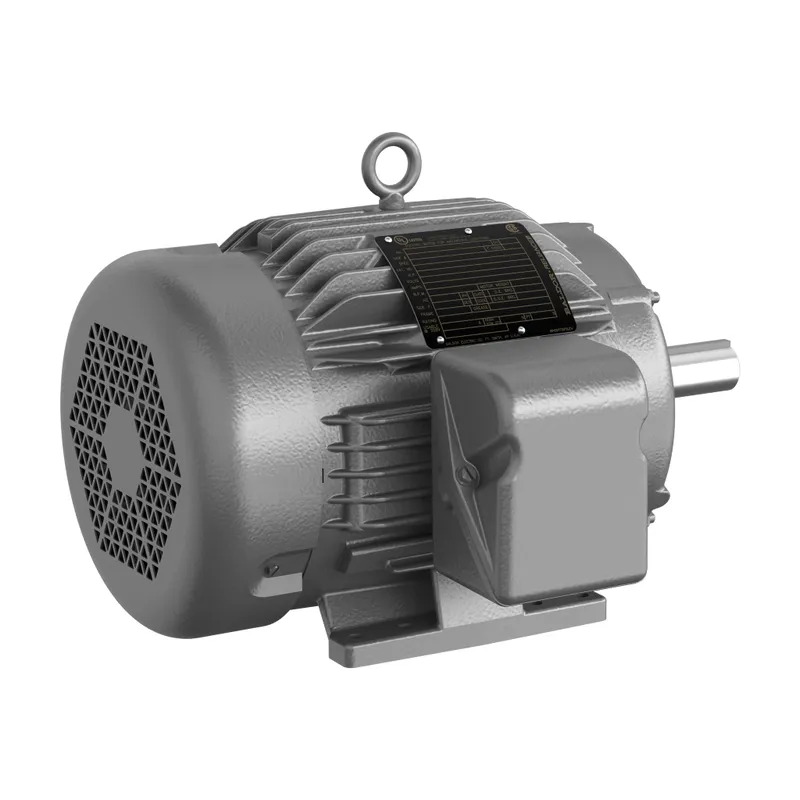

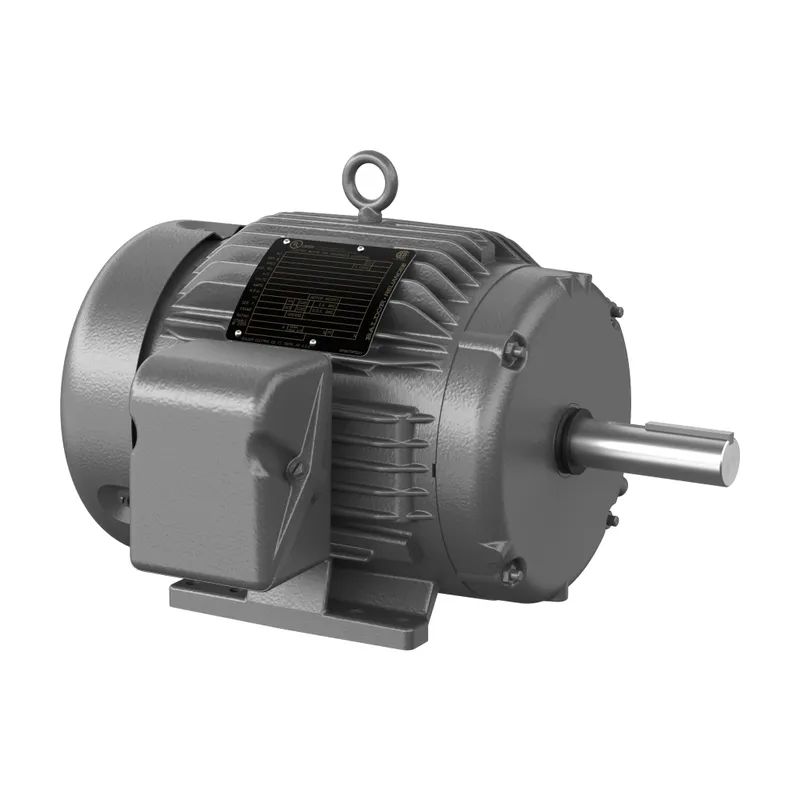

ABB EGDM3774T

10HP,1760RPM,3PH,60HZ,215TZ,0748M,T

MPN: EGDM3774T
Category: Farm Duty Three Phase

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB EGDM3774T?

Farm Duty Motor 10 Hp 208 V (EGDM3774T)

Specifications

Ordering

Catalog Number	EGDM3774T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	82 %
Rated Efficiency	92.40 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	10 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Cast Iron
Motor Frame Size	215TZ
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	17.625 in
Product Net Weight	231 lb
Product Net Width	18.125 in
Dimension Diagram	07LYN230

Certificates and Declarations

Certification Agency	CSA EEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)	1317 >> Farm duty motor AC
ETIM 7	EC001851 - Electric motor
