Home / ABB / Grain Dryer - Centrifugal fan / ABB EGDM3311T
ABB

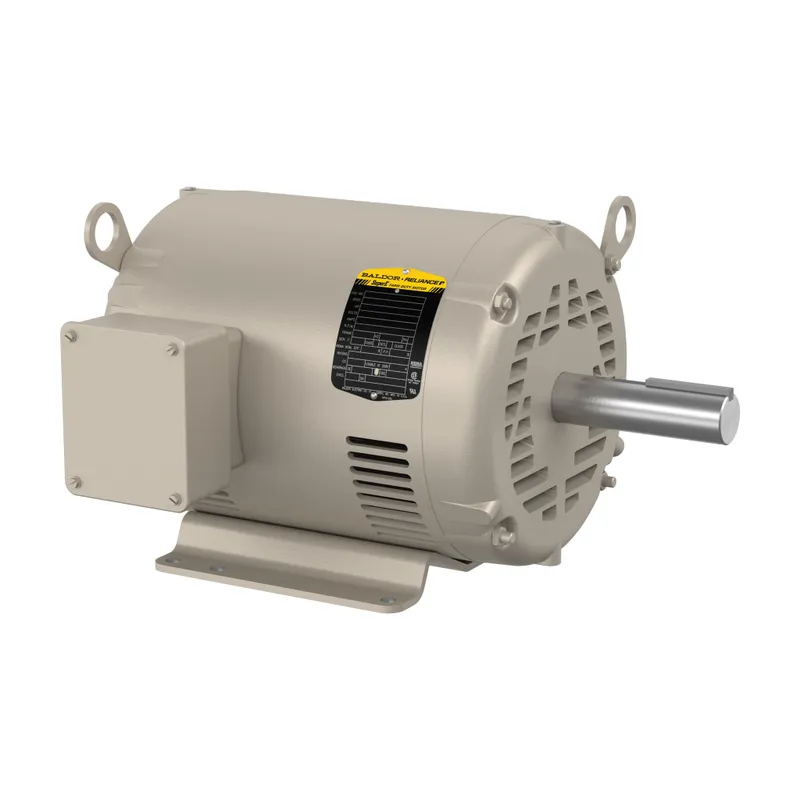

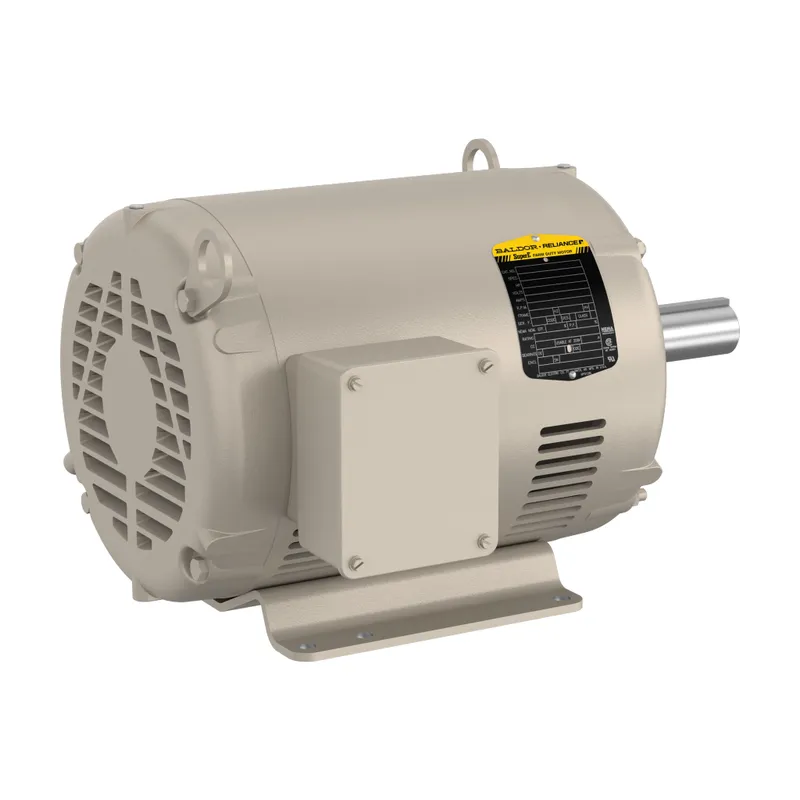

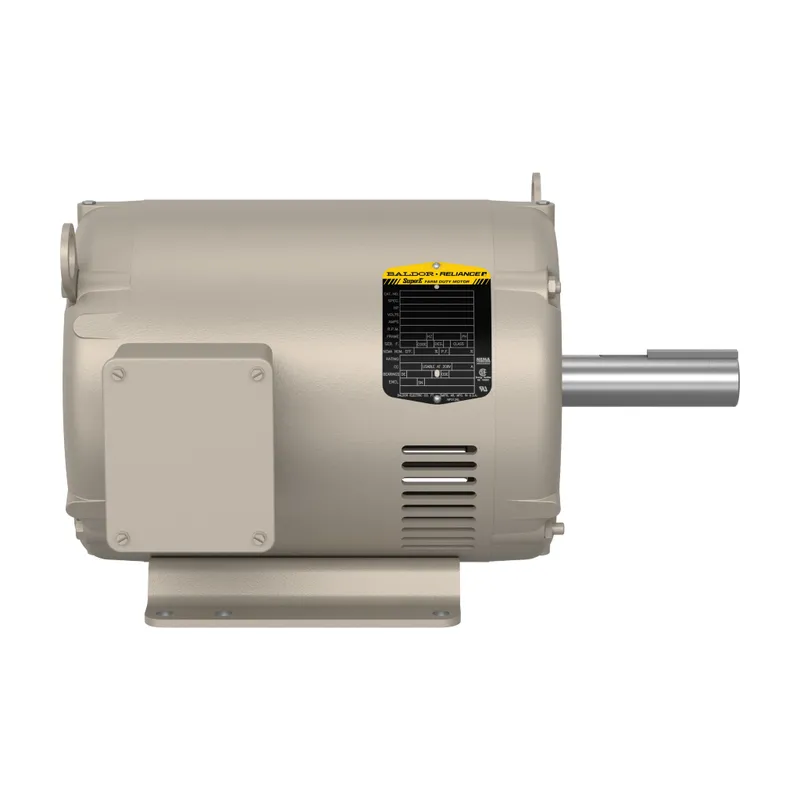

ABB EGDM3311T

7.5HP,1770RPM,3PH,60HZ,213TZ,3734M

MPN
EGDM3311T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB EGDM3311T?

Farm Duty Motor 7.5 Hp 208 V (EGDM3311T)

Specifications

Ordering

Catalog NumberEGDM3311T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelIE2, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor79 %
Rated Efficiency91 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power7.5 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeODP
Frame MaterialSteel
Motor Frame Size213TZ
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height17.375 in
Product Net Weight120 lb
Product Net Width16.5 in
Dimension Diagram37LYN688

Certificates and Declarations

Certification AgencyCSA EEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)1317 >> Farm duty motor AC
ETIM 7EC001851 - Electric motor
