Home / ABB / Grain Dryer - Centrifugal fan / ABB EGDM2334T
ABB

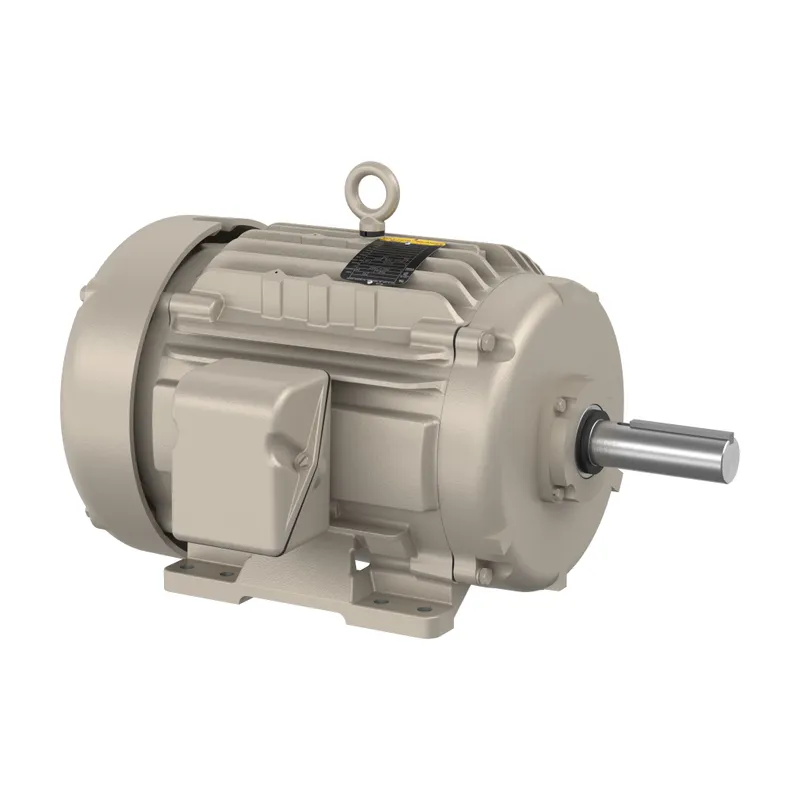

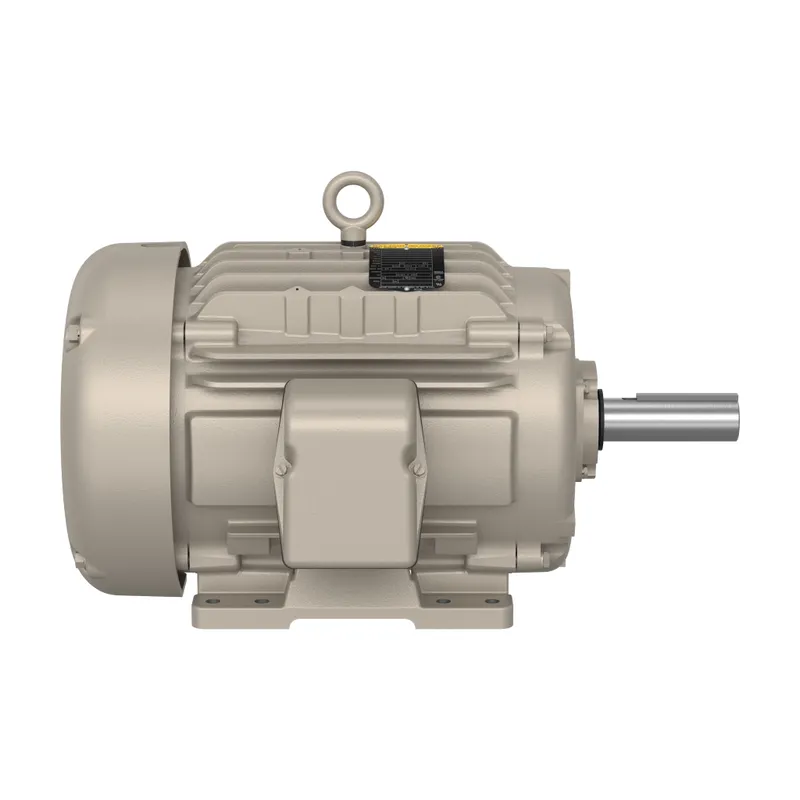

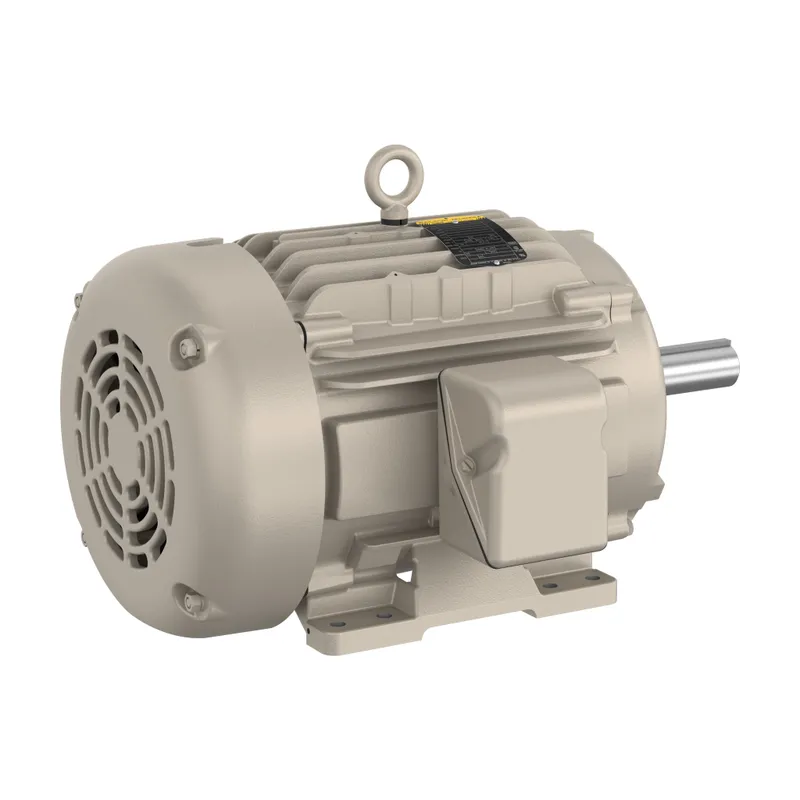

ABB EGDM2334T

20HP,1770RPM,3PH,60HZ,256TZ,0960M,T

MPN
EGDM2334T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB EGDM2334T?

Farm Duty Motor 20 Hp 230 V (EGDM2334T)

Specifications

Ordering

Catalog NumberEGDM2334T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor83 %
Rated Efficiency93 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power20 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Frame MaterialCast Iron
Motor Frame Size256TZ
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height19.625 in
Product Net Weight323 lb
Product Net Width23.75 in
Dimension Diagram09LYL721

Certificates and Declarations

Certification AgencyCSA EEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)1317 >> Farm duty motor AC
ETIM 7EC001851 - Electric motor

EGDM2334T: frequently asked questions

When can EGDM2334T be shipped?

EGDM2334T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EGDM2334T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EGDM2334T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EGDM2334T, subject to availability and destination.
