Home / ABB / Three phase enclosed motor / ABB EFM4316T

ABB

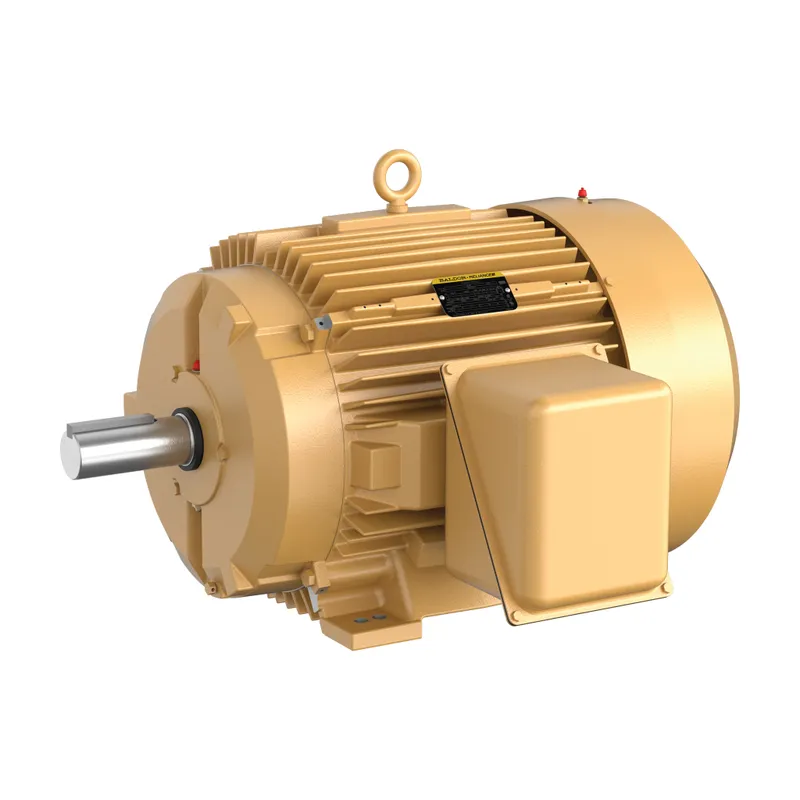

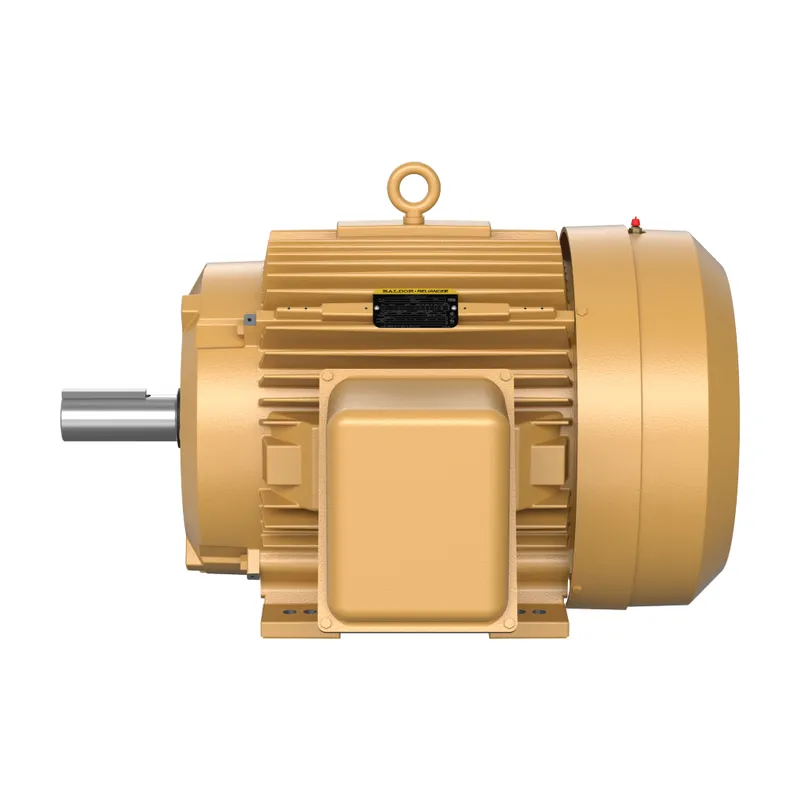

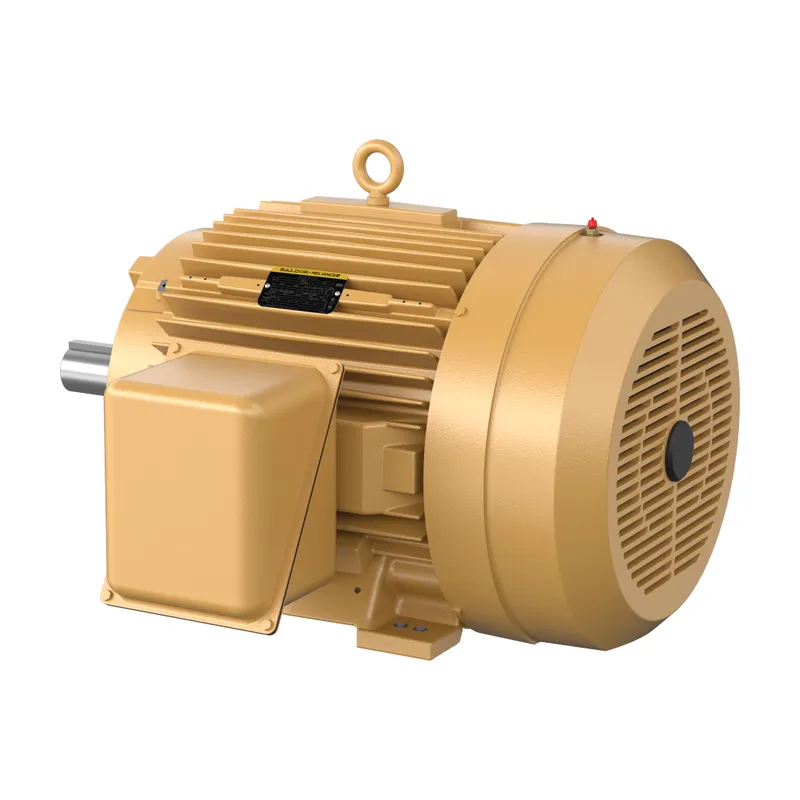

ABB EFM4316T

75HP,1780RPM,3PH,60HZ,365T,A36070M

MPN: EFM4316T
Category: Three phase enclosed motor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB EFM4316T?

General Purpose Motor 75 Hp 230 V (EFM4316T)

Specifications

Ordering

Catalog Number	EFM4316T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	86 %
Rated Efficiency	95.40 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	75 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Iron
Motor Frame Size	365T
Motor Base Type	Foot Mounted
Mounting Position	F2
Brake Present	No

Dimensions

Product Net Height	25.625 in
Product Net Weight	935 lb
Product Net Width	32.5 in
Dimension Diagram	611740-001-SH1

Certificates and Declarations

Certification Agency	CCSAUSEEV, CURUSEEV, NEMA PREMIUM, NEMA_PREMIUM
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
