ABB

ABB EFM2334T

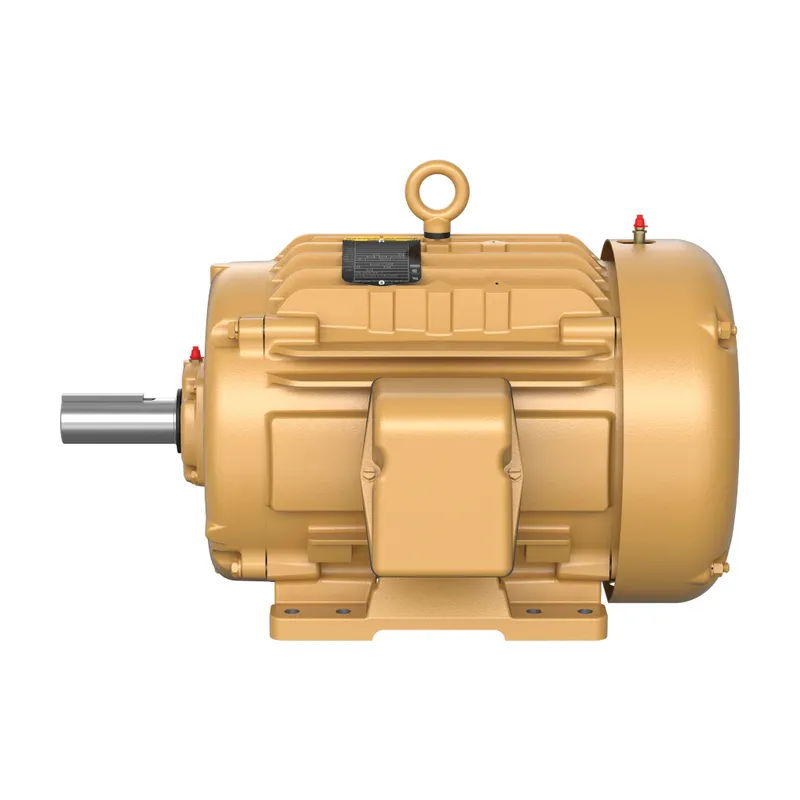

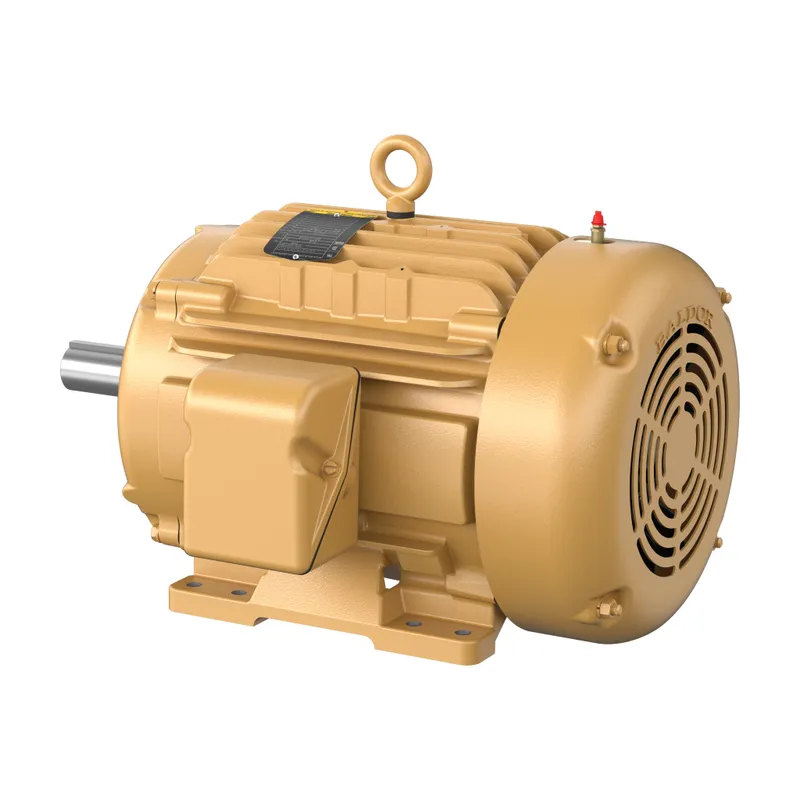

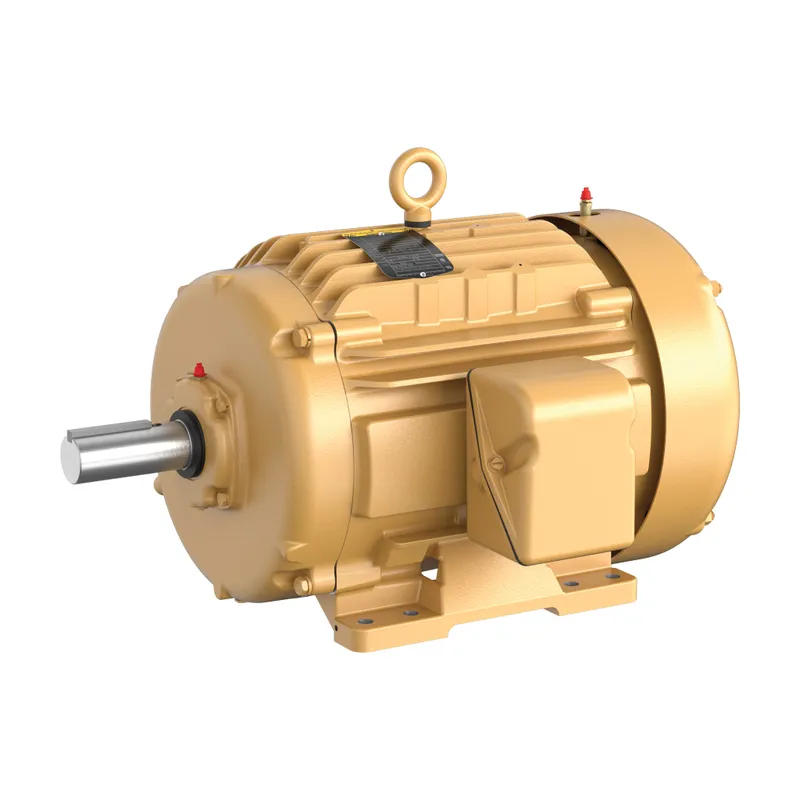

20HP,1770RPM,3PH,60HZ,256T,0960M,TE

MPN: EFM2334T
Category: Three phase enclosed motor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB EFM2334T?

General Purpose Motor 20 Hp 230 V (EFM2334T)

Specifications

Ordering

Catalog Number	EFM2334T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	83 %
Rated Efficiency	93 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	20 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Cast Iron
Motor Frame Size	256T
Motor Base Type	Foot Mounted
Mounting Position	F2
Brake Present	No

Dimensions

Product Net Height	17.438 in
Product Net Weight	356 lb
Product Net Width	20.5 in
Dimension Diagram	09LYC106

Certificates and Declarations

Certification Agency	CURUSEEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)	1328 >> Multi phase motor AC
ETIM 7	EC001851 - Electric motor
