Home / ABB / Shaft grounded / ABB ECTM4308T-G

ABB

ABB ECTM4308T-G

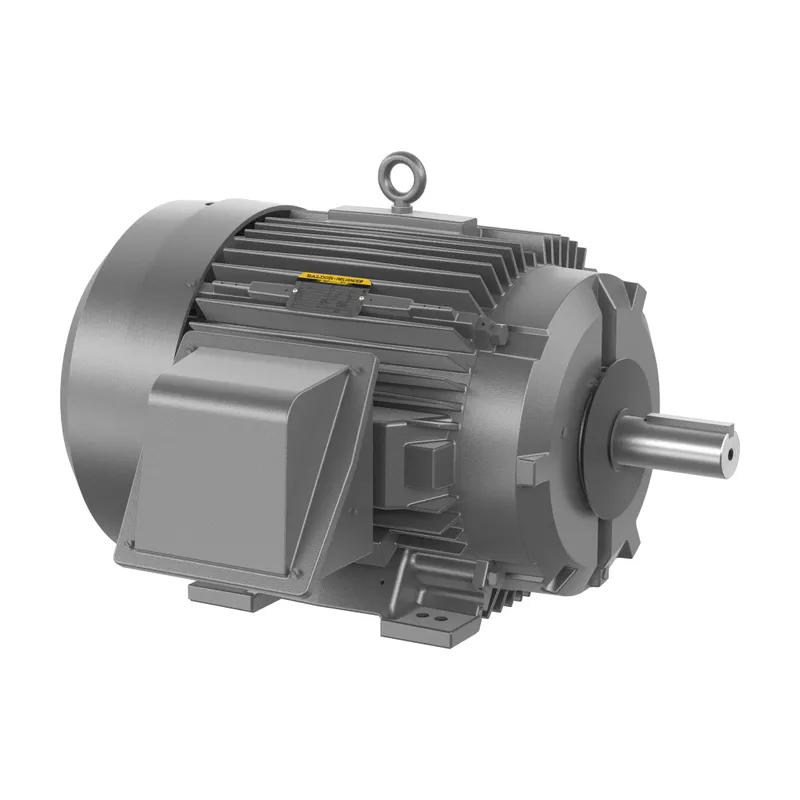

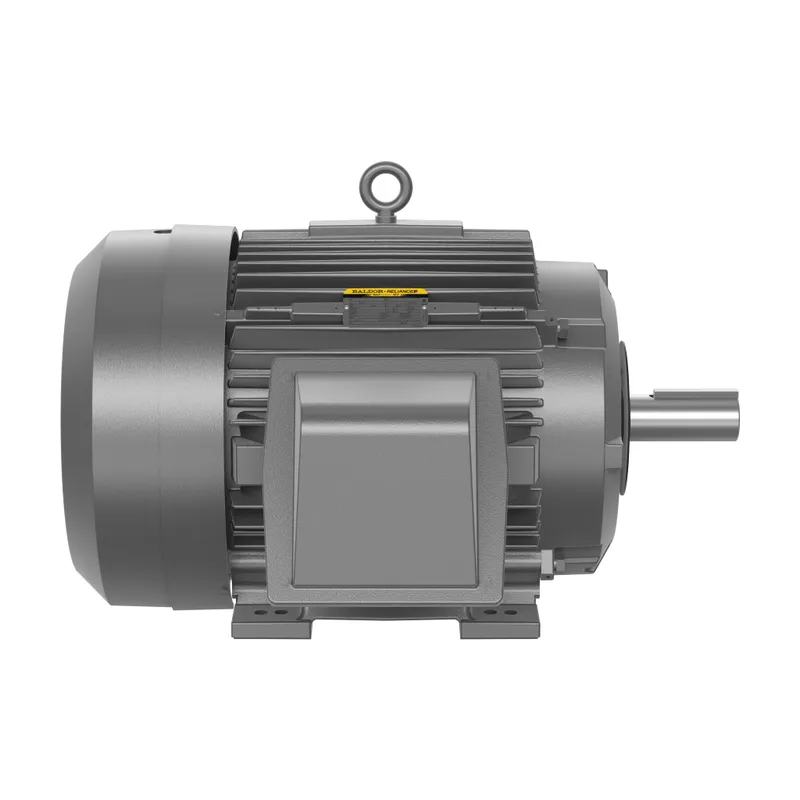

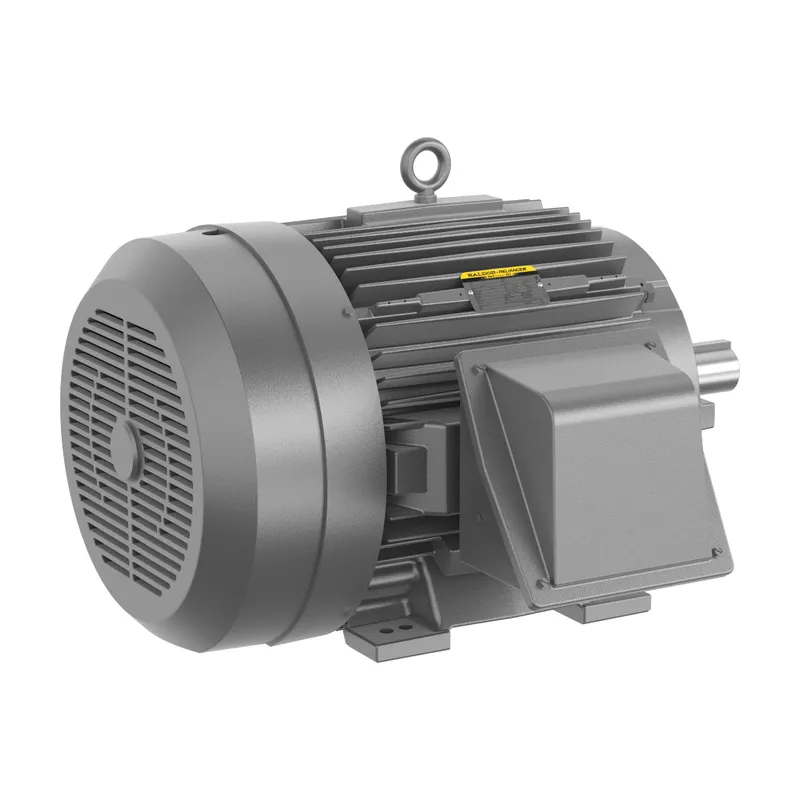

40HP,1190RPM,3PH,60HZ,364T,A36062M

MPN: ECTM4308T-G
Category: Shaft grounded

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB ECTM4308T-G?

Shaft Ground Motors 40 Hp 230 V (ECTM4308T-G)

Specifications

Ordering

Catalog Number	ECTM4308T-G G
Brand / Label	Baldor-Reliance®
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	single_speed
Power Factor	80 %
Rated Efficiency	94.10 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	1200 r/min
Output Power	40 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Iron
Motor Frame Size	364T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	25.625 in
Product Net Weight	908 lb
Product Net Width	32.5 in

Certificates and Declarations

Certification Agency

CCSAUSEEV
