ABB

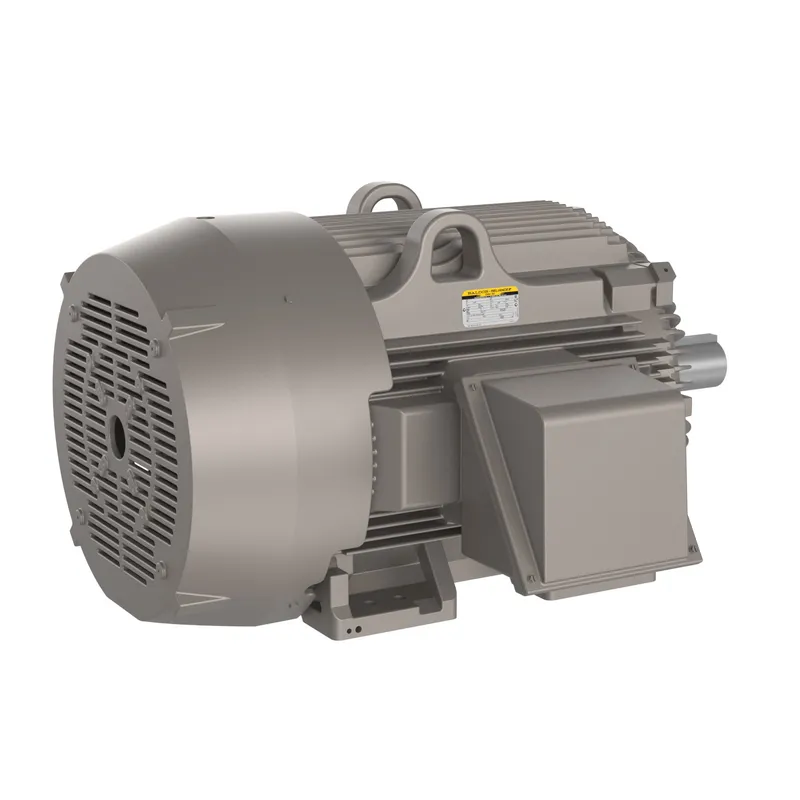

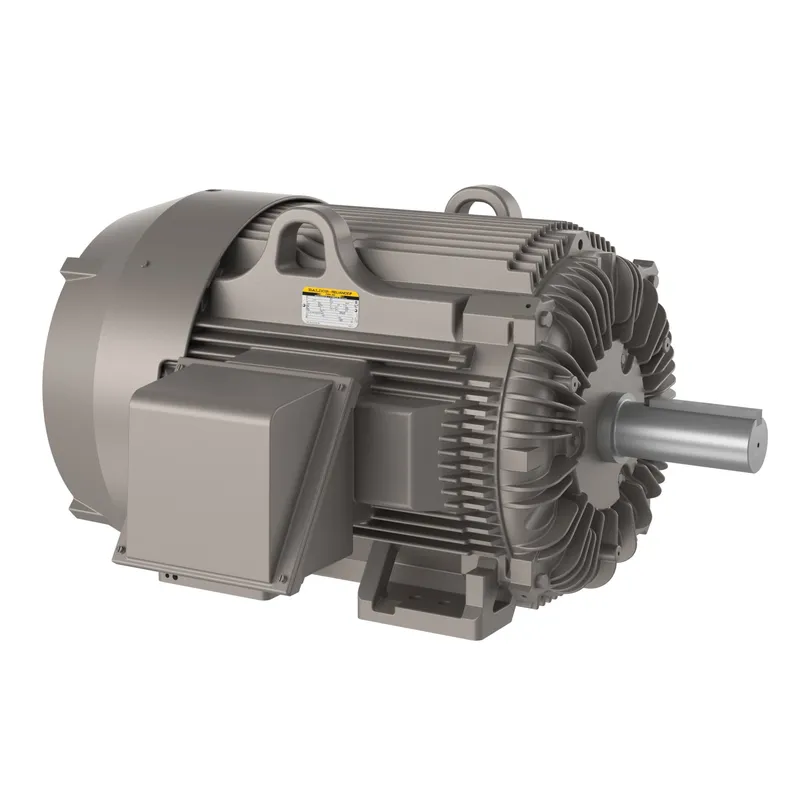

ABB ECR91254T-4

125HP,1785RPM,3PH,60HZ,444T,A44078M

MPN: ECR91254T-4
Category: Three phase enclosed motor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB ECR91254T-4?

General Purpose Motor 125 Hp 460 V (ECR91254T-4)

Specifications

Ordering

Catalog Number	ECR91254T-4
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015381
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	81 %
Rated Efficiency	95.40 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	125 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Iron
Motor Frame Size	444T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	52.5 in
Product Net Weight	1964 lb
Product Net Width	40.75 in
Dimension Diagram	617427-315

Certificates and Declarations

Certification Agency	CSA EEV
IDEA Granular Category Code (IGCC)	1328 >> Multi phase motor AC
ETIM 7	EC001851 - Electric motor
