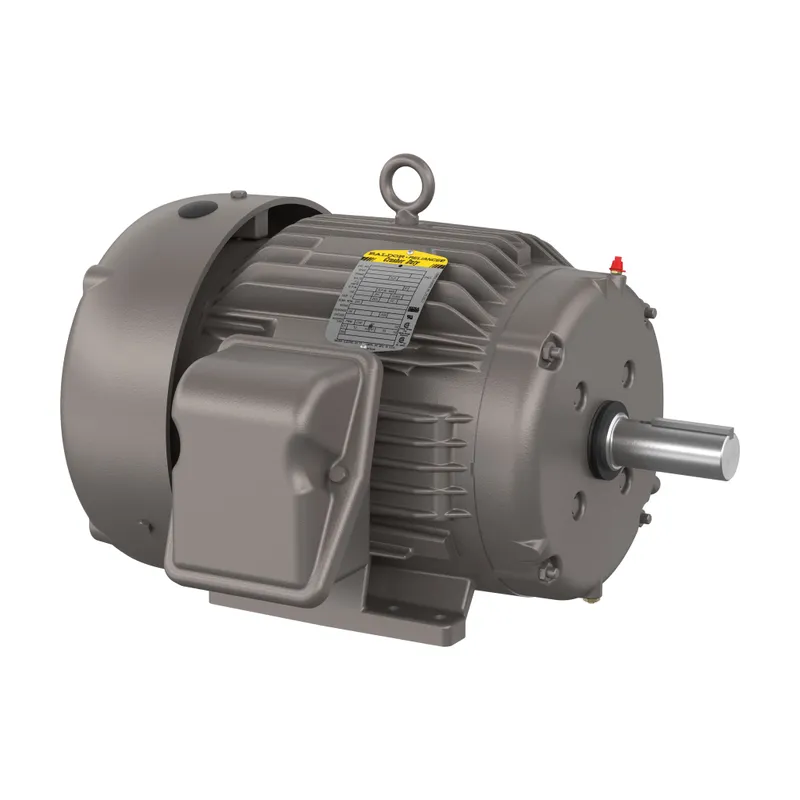

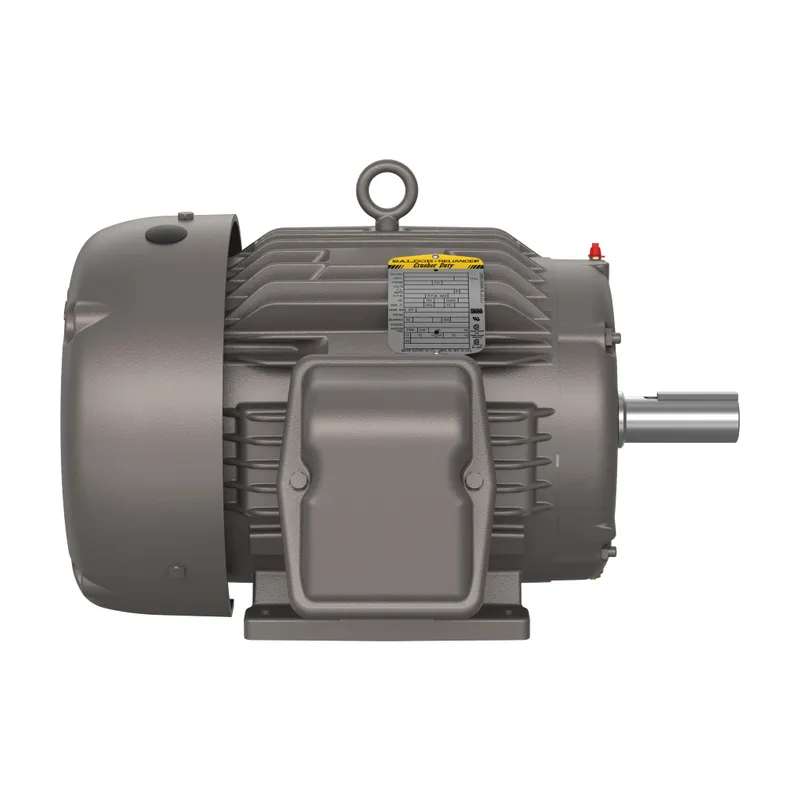

ABB ECR9056T
5HP,1160RPM,3PH,60HZ,215T,0748M,TEF
- MPN
- ECR9056T
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB ECR9056T?
Severe Duty Motor 5 Hp 230 V (ECR9056T)
Specifications
Ordering
| Catalog Number | ECR9056T |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 6P |
| Number of Speeds | Single Speed |
| Power Factor | 70 % |
| Rated Efficiency | 89.50 % |
| Service Factor | 1.25 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1200 r/min |
| Output Power | 5 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Frame Material | Cast Iron |
| Motor Frame Size | 215T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 17.625 in |
| Product Net Weight | 226 lb |
| Product Net Width | 18.125 in |
| Dimension Diagram | 07LYN167 |
Certificates and Declarations
| Certification Agency | CCSA US, CSA EEV, NEMA_PREMIUM, UR |
| IDEA Granular Category Code (IGCC) | 1328 >> Multi phase motor AC |
| ETIM 7 | EC001851 - Electric motor |
ECR9056T: frequently asked questions
When can ECR9056T be shipped?
ECR9056T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ECR9056T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ECR9056T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECR9056T, subject to availability and destination.
