ABB ECP49258T-4
250HP,900RPM,3PH,60HZ,L449T,TEFC,FO
- MPN
- ECP49258T-4
- Category
- XEX
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB ECP49258T-4?

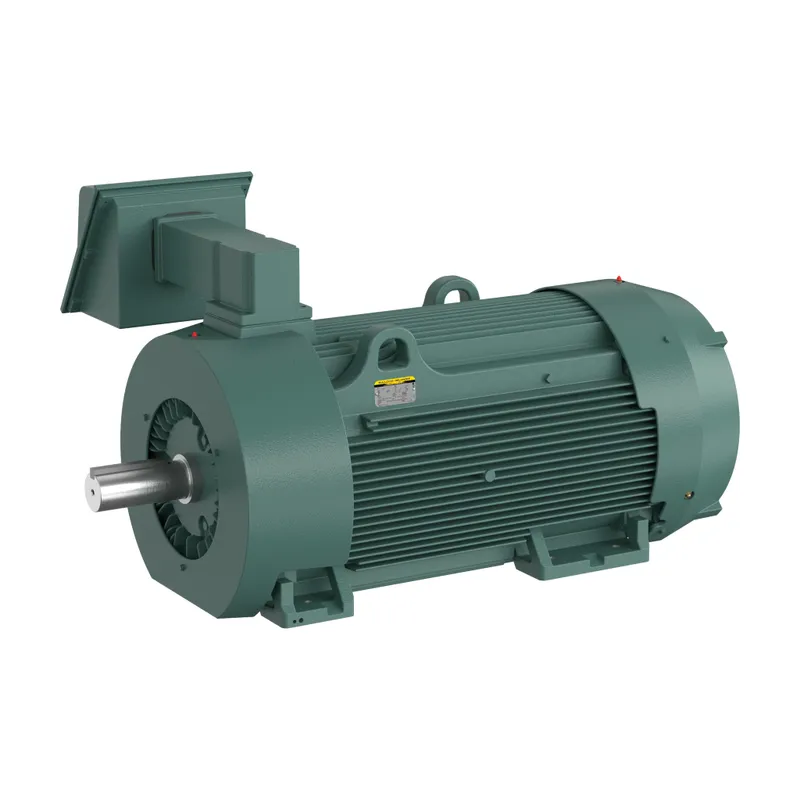

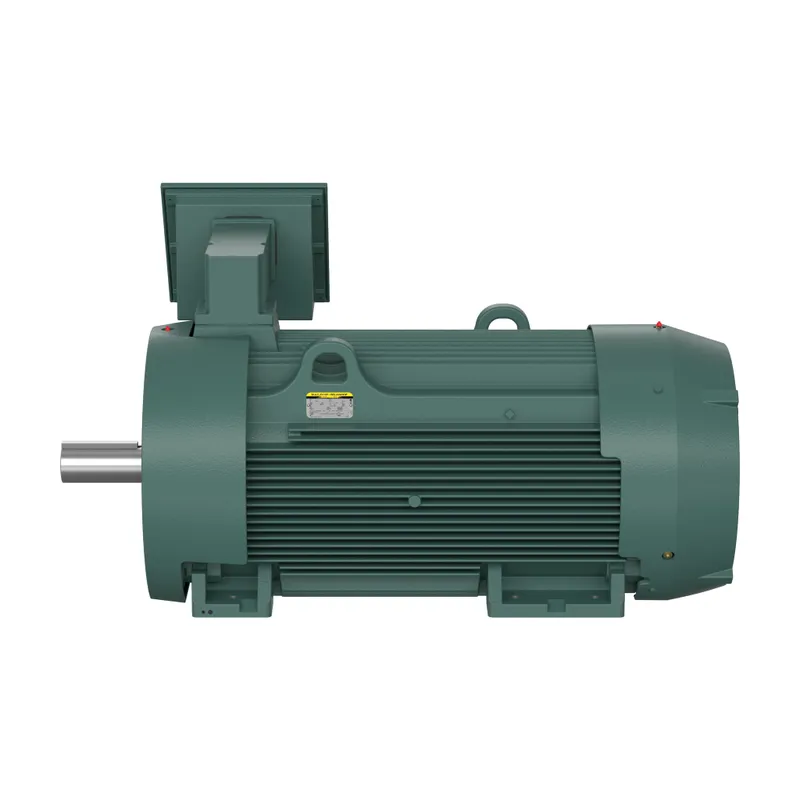

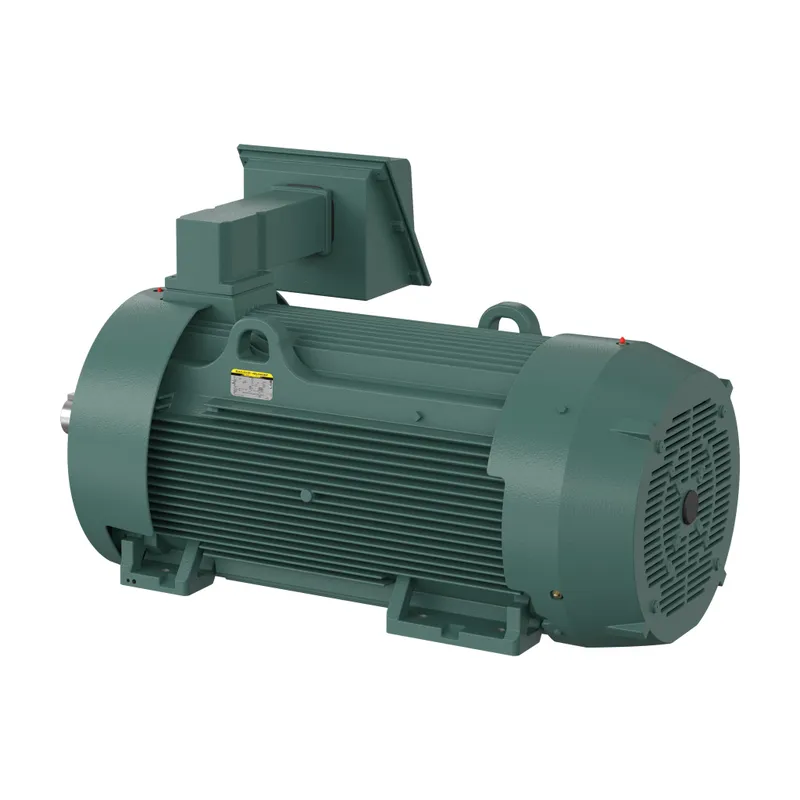

Severe Duty Motor 250 Hp 460 V (ECP49258T-4)
Specifications
Ordering
| Catalog Number | ECP49258T-4 |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015381 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Energy Efficiency (NEMA 12-11) |
| Insulation Class | F |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 8P |
| Number of Speeds | Single Speed |
| Power Factor | 85 % |
| Rated Efficiency | 95 % |
| Service Factor | 1.15 |
| Temperature Class | T2C |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 900 r/min |
| Output Power | 250 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Explosion Proof Group Class | Class I, Group A, B, C & D A |
| Frame Material | Cast Iron |
| Motor Frame Size | L449T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 52.5 in |
| Product Net Weight | 3430 lb |
| Product Net Width | 43 in |
| Dimension Diagram | 617423-006 |
Certificates and Declarations
| Certification Agency | CCSAUSEEV, CURUSEEV |
| IDEA Granular Category Code (IGCC) | 1325 >> General purpose motor AC |
| ETIM 7 | EC001851 - Electric motor |
