Home / ABB / XEX / ABB ECP4409TR-4

ABB

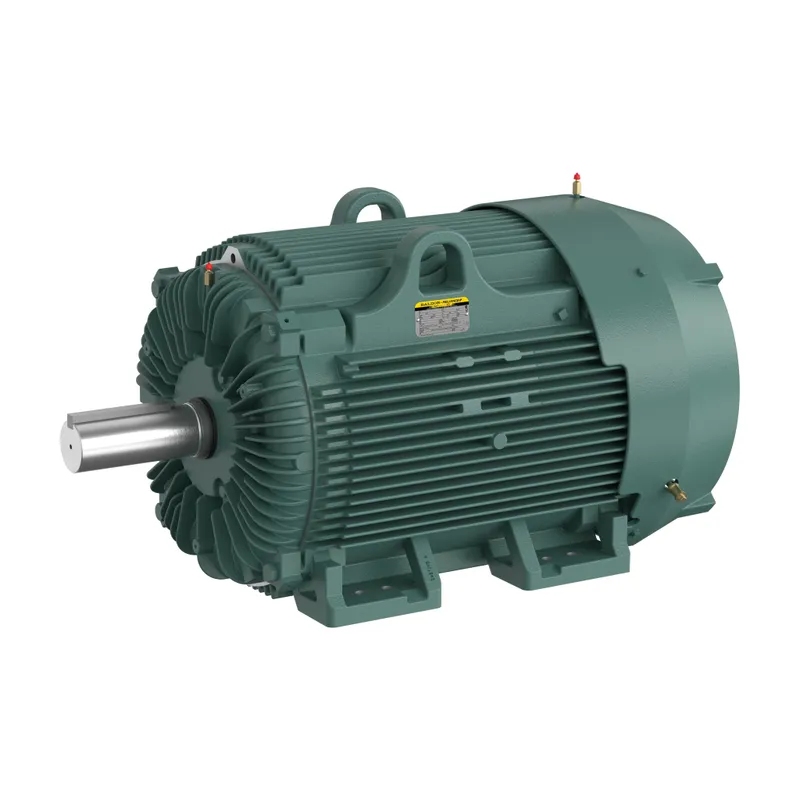

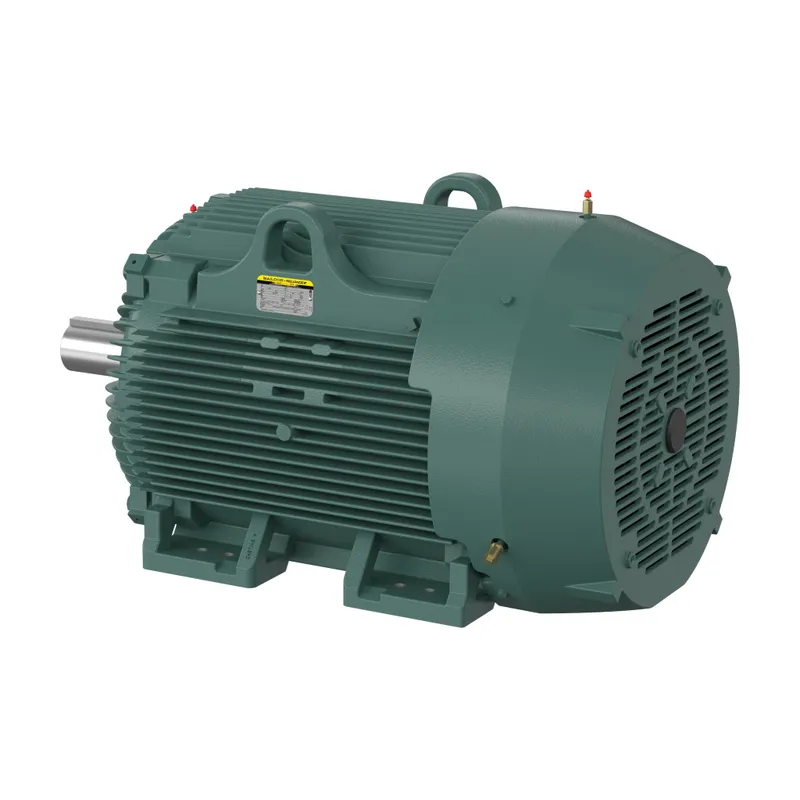

ABB ECP4409TR-4

100HP,1190RPM,3PH,60HZ,444T,TEFC,F1

MPN: ECP4409TR-4
Category: XEX

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB ECP4409TR-4?

Severe Duty Motor 100 Hp 460 V (ECP4409TR-4)

Specifications

Ordering

Catalog Number	ECP4409TR-4
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	Single Speed
Power Factor	82 %
Rated Efficiency	95 %
Service Factor	1.15
Temperature Class	T3
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1200 r/min
Output Power	100 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group A, B, C & D A
Frame Material	Iron
Motor Frame Size	444T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	52.5 in
Product Net Weight	1871 lb
Product Net Width	42 in
Dimension Diagram	617427-001

Certificates and Declarations

Certification Agency	CSA EEV
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
