Home / ABB / XEX / ABB ECP4308T

ABB

ABB ECP4308T

40HP,1190RPM,3PH,60HZ,364T,A36062M

MPN: ECP4308T
Category: XEX

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB ECP4308T?

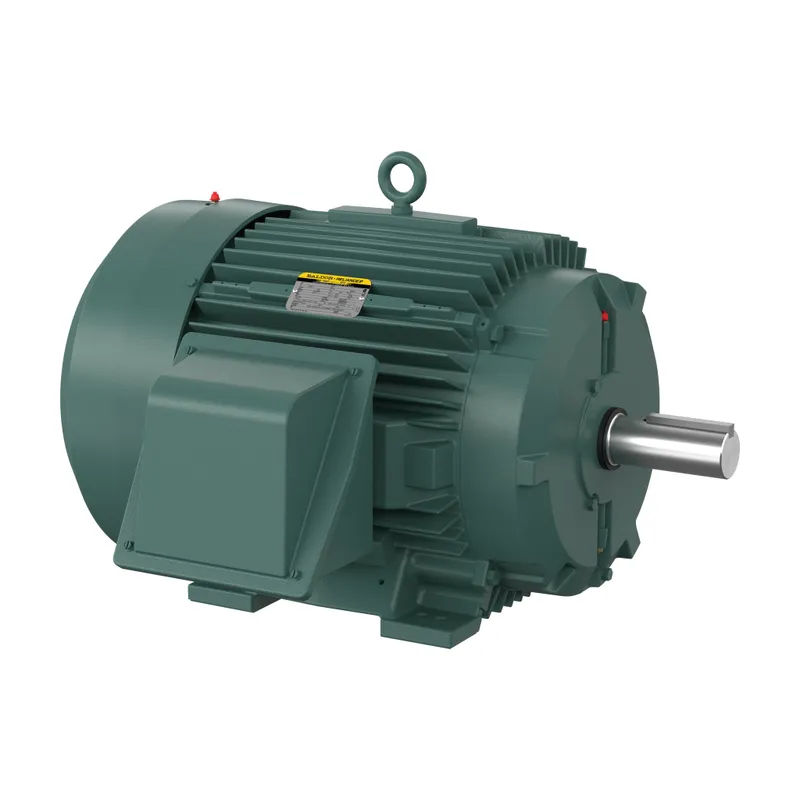

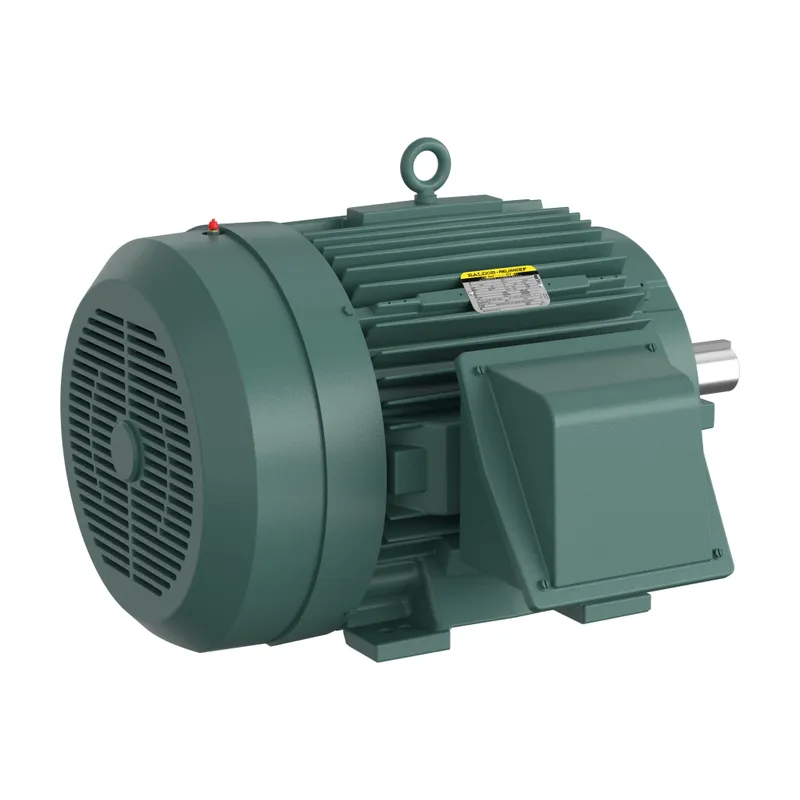

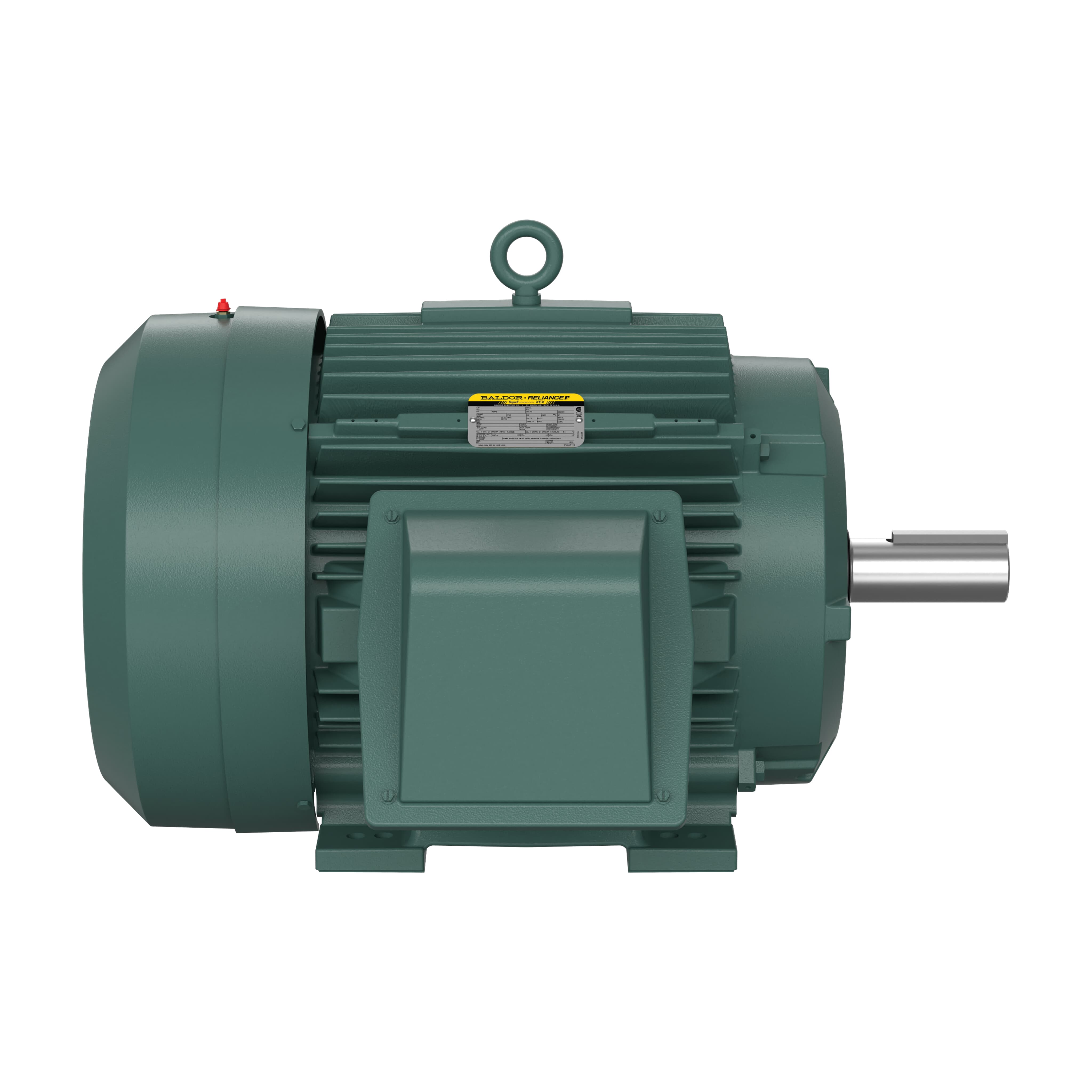

Severe Duty Motor 40 Hp 230 V (ECP4308T)

Specifications

Ordering

Catalog Number	ECP4308T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	Single Speed
Power Factor	80 %
Rated Efficiency	94.10 %
Service Factor	1.15
Temperature Class	T3A
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1200 r/min
Output Power	40 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group A, B, C & D A
Frame Material	Cast Iron
Motor Frame Size	364T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	29.5 in
Product Net Weight	903.001 lb
Product Net Width	34.5 in
Dimension Diagram	617428-034

Certificates and Declarations

Certification Agency	CCSAUSEEV, CURUSEEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
