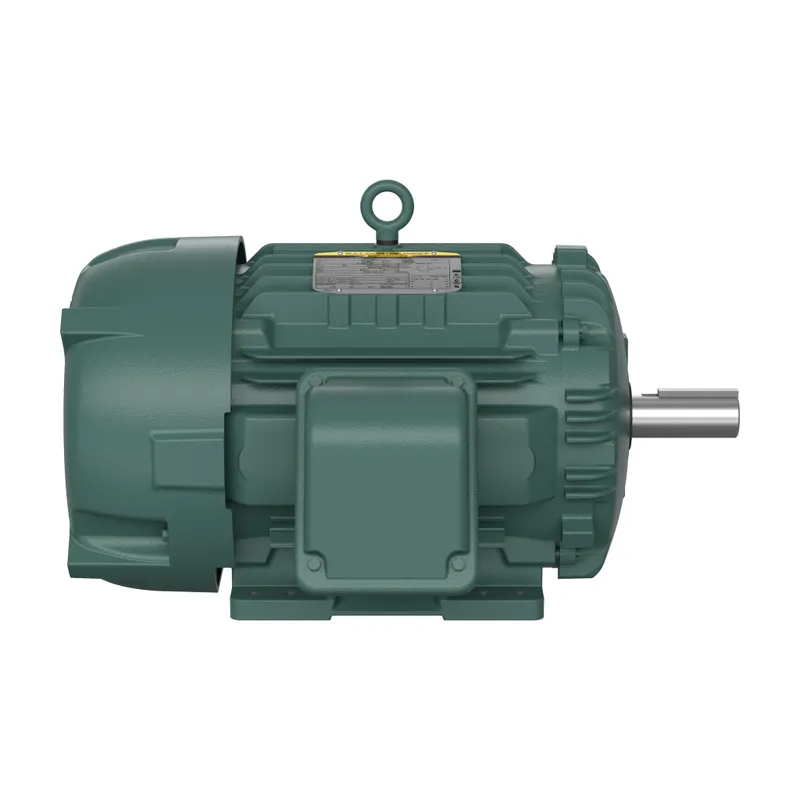

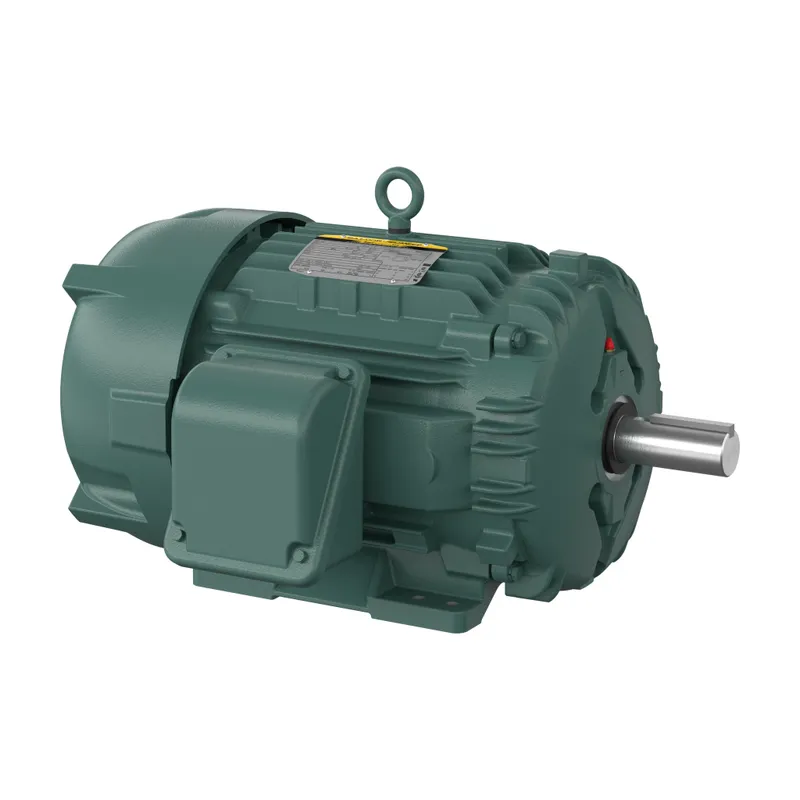

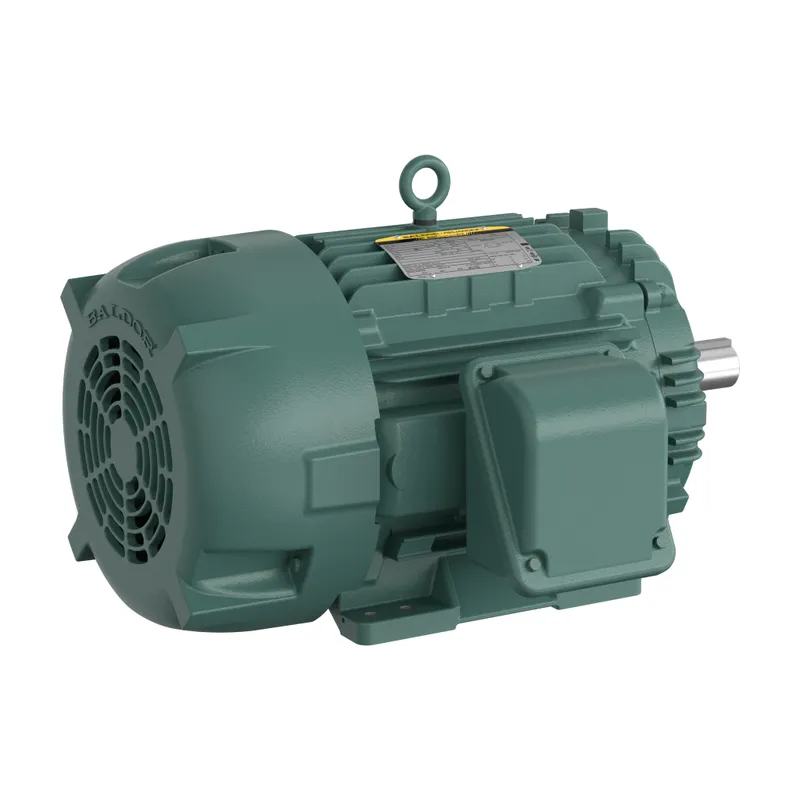

ABB ECP4102T

20HP,1180RPM,3PH,60HZ,286T,1054M,TE

MPN: ECP4102T
Category: XEX

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB ECP4102T?

Severe Duty Motor 20 Hp 230 V (ECP4102T)

Specifications

Ordering

Catalog Number	ECP4102T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	Single Speed
Power Factor	77 %
Rated Efficiency	91.70 %
Service Factor	1.15
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1200 r/min
Output Power	20 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group A, B, C & D A
Frame Material	Cast Iron
Motor Frame Size	286T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	19.625 in
Product Net Weight	437 lb
Product Net Width	23.75 in
Dimension Diagram	10LYH292

Certificates and Declarations

Certification Agency	CCSA US, CSA EEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)	1328 >> Multi phase motor AC
ETIM 7	EC001851 - Electric motor
