Home / ABB / XEX / ABB ECP3775T-4
ABB

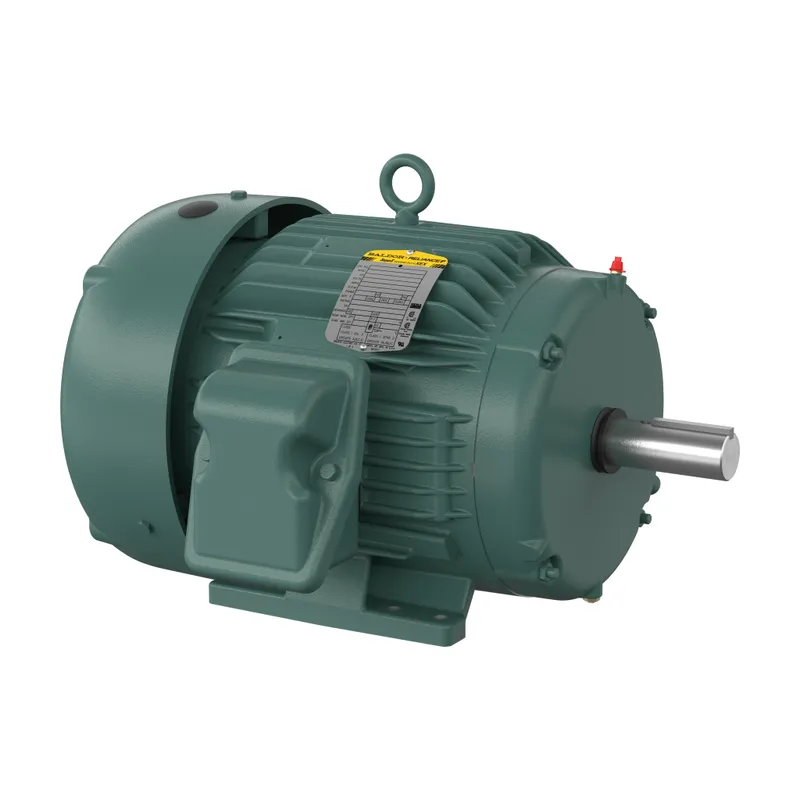

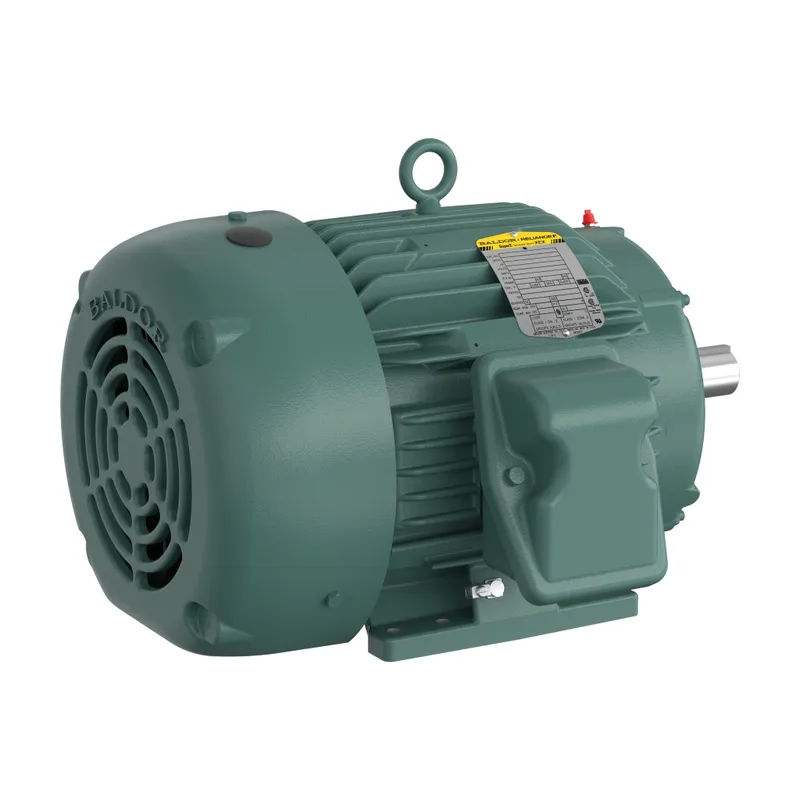

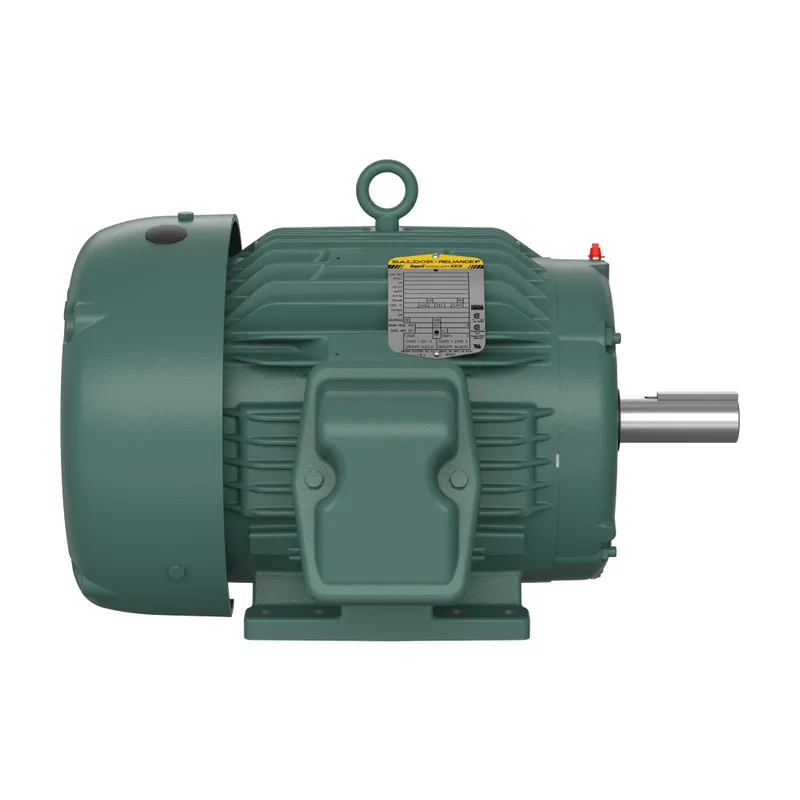

ABB ECP3775T-4

3HP,865RPM,3PH,60HZ,215T,0744M,TEFC

MPN
ECP3775T-4
Category
XEX
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB ECP3775T-4?

Severe Duty Motor 3 Hp 460 V (ECP3775T-4)

Specifications

Ordering

Catalog NumberECP3775T-4
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles8P
Number of SpeedsSingle Speed
Power Factor62 %
Rated Efficiency85.50 %
Service Factor1.15
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)900 r/min
Output Power3 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group A, B, C & D A
Frame MaterialCast Iron
Motor Frame Size215T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height17.625 in
Product Net Weight203 lb
Product Net Width18.125 in
Dimension Diagram07LYK374

Certificates and Declarations

Certification AgencyCCSA US, CSA, CSA EEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor

ECP3775T-4: frequently asked questions

When can ECP3775T-4 be shipped?

ECP3775T-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ECP3775T-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ECP3775T-4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECP3775T-4, subject to availability and destination.
