ABB

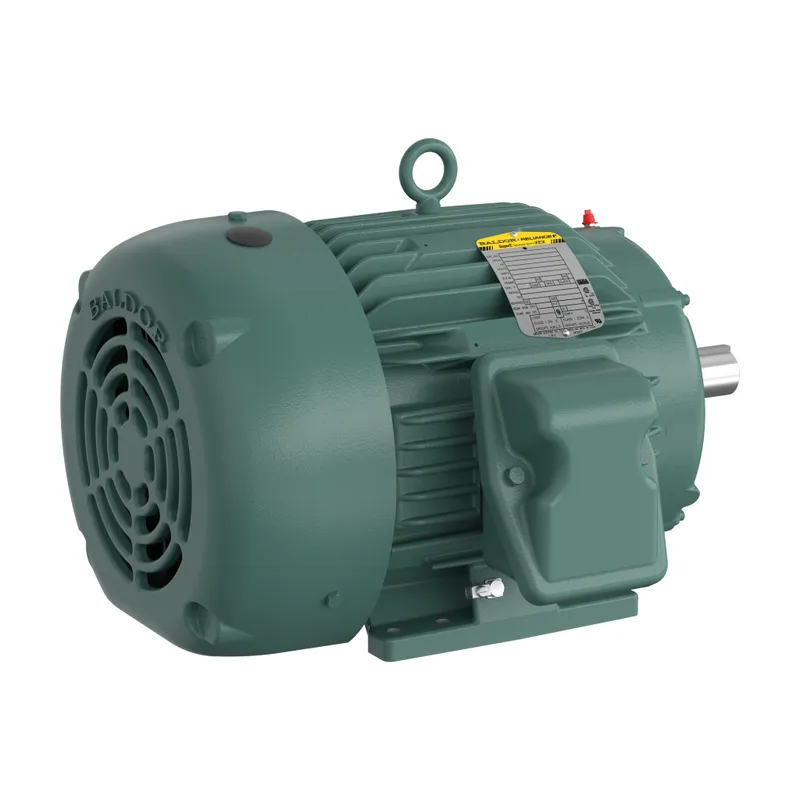

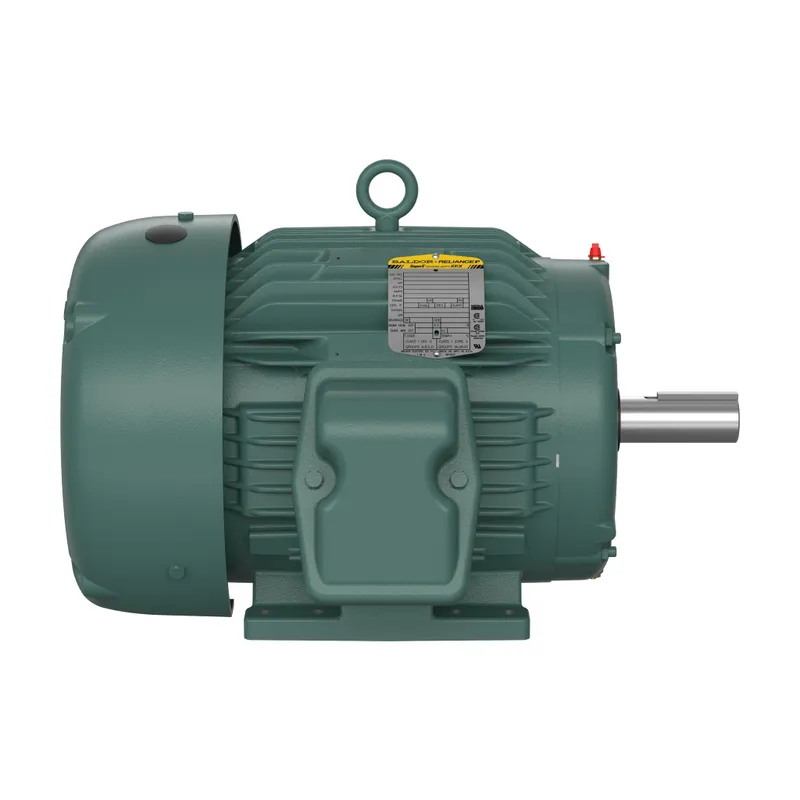

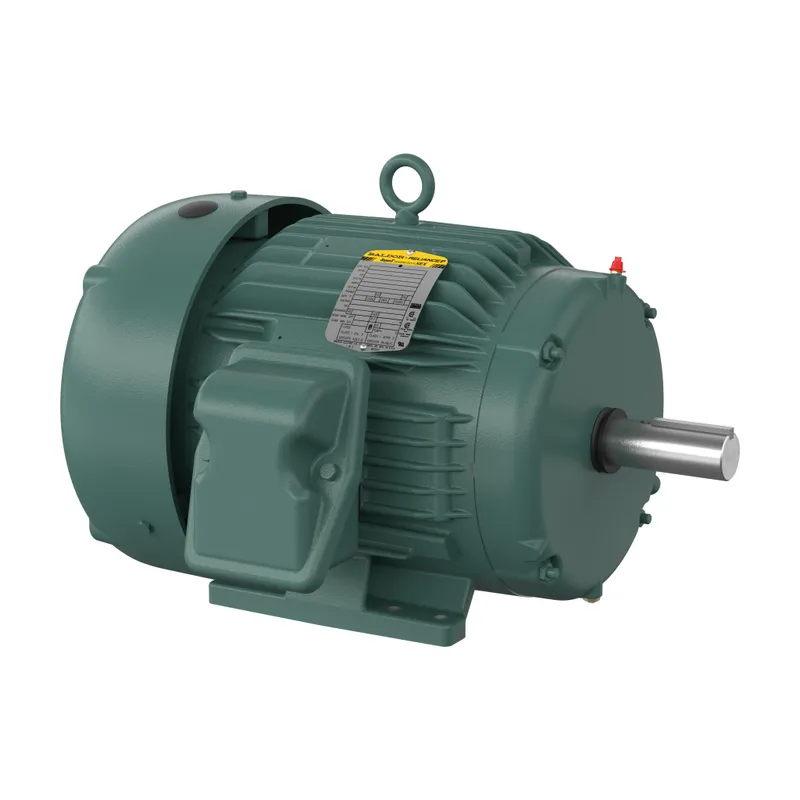

ABB ECP3768T

5HP,1160RPM,3PH,60HZ,215T,0748M,TEF

MPN: ECP3768T
Category: XEX

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB ECP3768T?

Severe Duty Motor 5 Hp 230 V (ECP3768T)

Specifications

Ordering

Catalog Number	ECP3768T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	Single Speed
Power Factor	72 %
Rated Efficiency	90.20 %
Service Factor	1.15
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1200 r/min
Output Power	5 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group A, B, C & D A
Frame Material	Iron
Motor Frame Size	215T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	17.625 in
Product Net Weight	212 lb
Product Net Width	18.125 in
Dimension Diagram	07LYK374

Certificates and Declarations

Certification Agency	CCSA US, CSA, CSA EEV, UR
IDEA Granular Category Code (IGCC)	1328 >> Multi phase motor AC
ETIM 7	EC001851 - Electric motor
