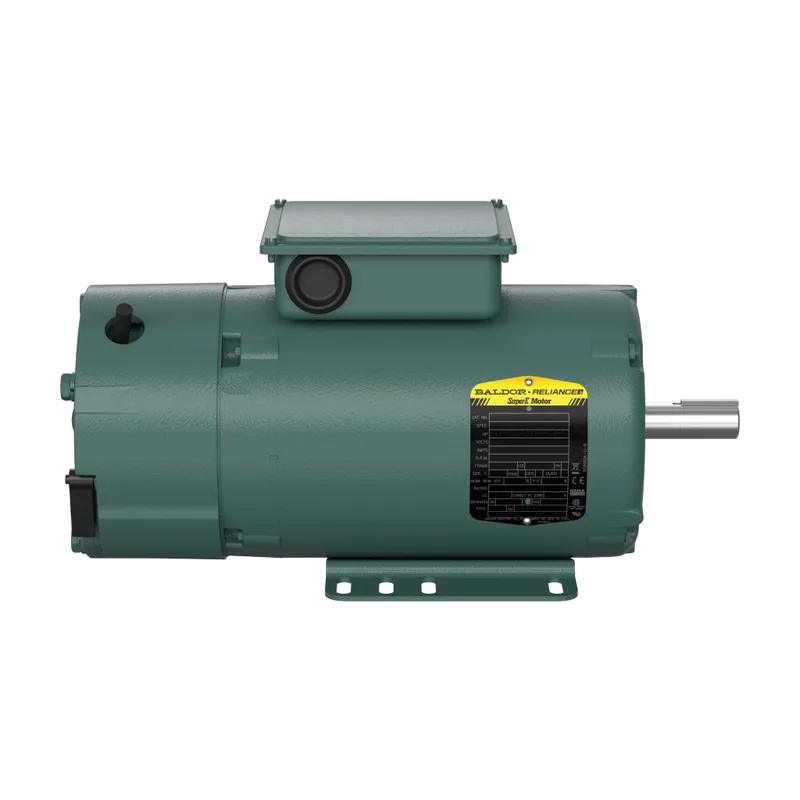

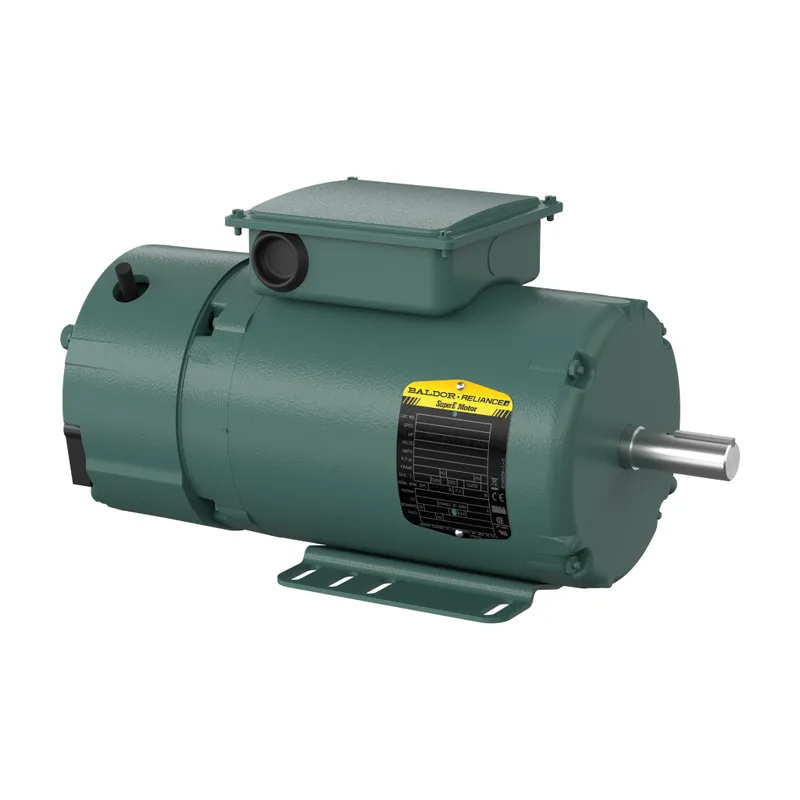

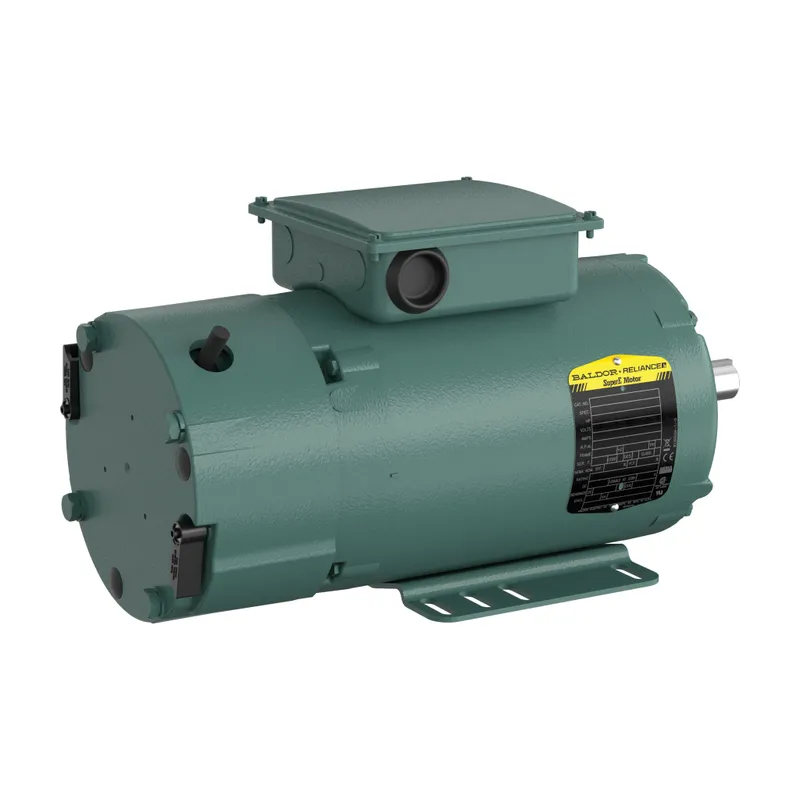

ABB EBNM3546T-D
1/.75KWHP,1770 1/MINRPM,3PH,60HZ,14
- MPN
- EBNM3546T-D
- Category
- D-series Brake
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB EBNM3546T-D?
D-Series Brake 1 Hp 230 V (EBNM3546T-D)
Specifications
Ordering
| Catalog Number | EBNM3546T-D |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015100 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 66 % |
| Rated Efficiency | 85.50 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 1 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TENV |
| Frame Material | Steel |
| Motor Frame Size | 145TY |
| Motor Base Type | Foot Mounted |
| Mounting Position | F3 |
| Brake Present | Yes |
Dimensions
| Product Net Height | 15.125 in |
| Product Net Weight | 51 lb |
| Product Net Width | 16.125 in |
| Dimension Diagram | 35LYX164 |
Certificates and Declarations
| Certification Agency | CE, CURUSEEV, NEMA_PREMIUM, UKCA, WEEE |
| IDEA Granular Category Code (IGCC) | 1325 >> General purpose motor AC |
| ETIM 7 | EC001851 - Electric motor |
